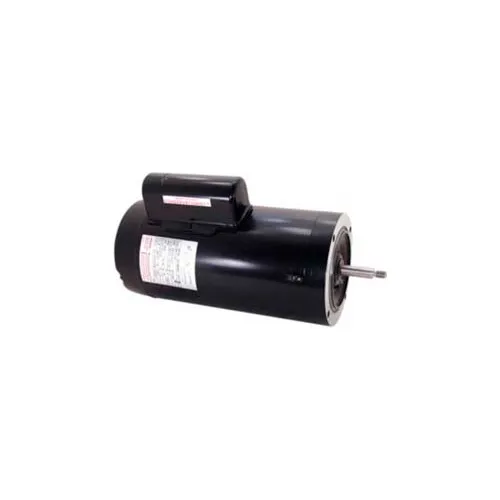

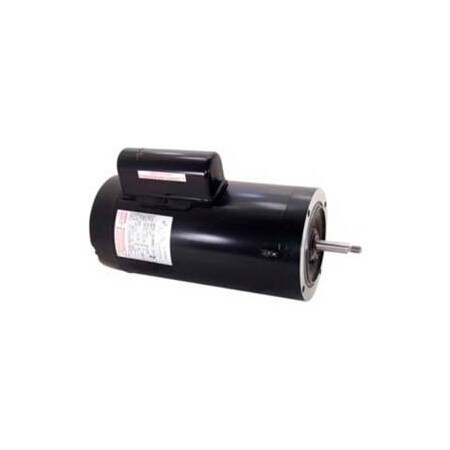

Pool Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 5 15/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60, Full Load Amps 15.0-13.3, Height 5 5/8 in, HP 3, Ins. Class B, Length Less Shaft 12 5/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

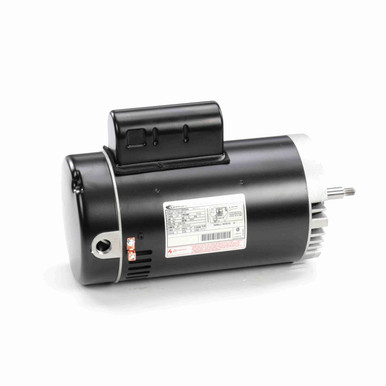

ST1302V1, SP3025X30AZ, SP3025EEAZ Hayward, NorthStar - Full Rate SP4030NS Magnum Nema-C Flange Pool filter Motor all copper windings Auto protector Capacitor start NEMA 56C Face mount Not reversible Open drip proof CCWPE rotation Sealed ball bearings Sealed switch 50 degrees C ambeint 60 HZ 303 stainless shaft High service factor 3hp 3450RPM 56J frame threaded shaft 208-230 Volts 60hz 14.4 amps Service Factor 1.15 Energy Efficient Motor Cross References: 327P557 C56N2U115 C56P2T61 C56P2T61A1 C56P2T61A2 C56P2U11 C56P2U11A2 C56P2U11A6 C56P2U11A7 C56P2U11A8 C56P2U11C2 K56N2N103A1 K56P2N100A1 K56P2N101A1 K56P2N101A5 K56P2N101A6 K56P2N102 K56P2N103 K56P2N103A3 K56P2N103A4 K56P2N103A5 K56P2N105A1 JL1323A 165115 177028 B111 B131 B712 B775 B781 B818 EB818 JH30FL1 JH30FL1E 10812 17210 17456 17458 C1440 110286 M-548 J039 91853 ST1302

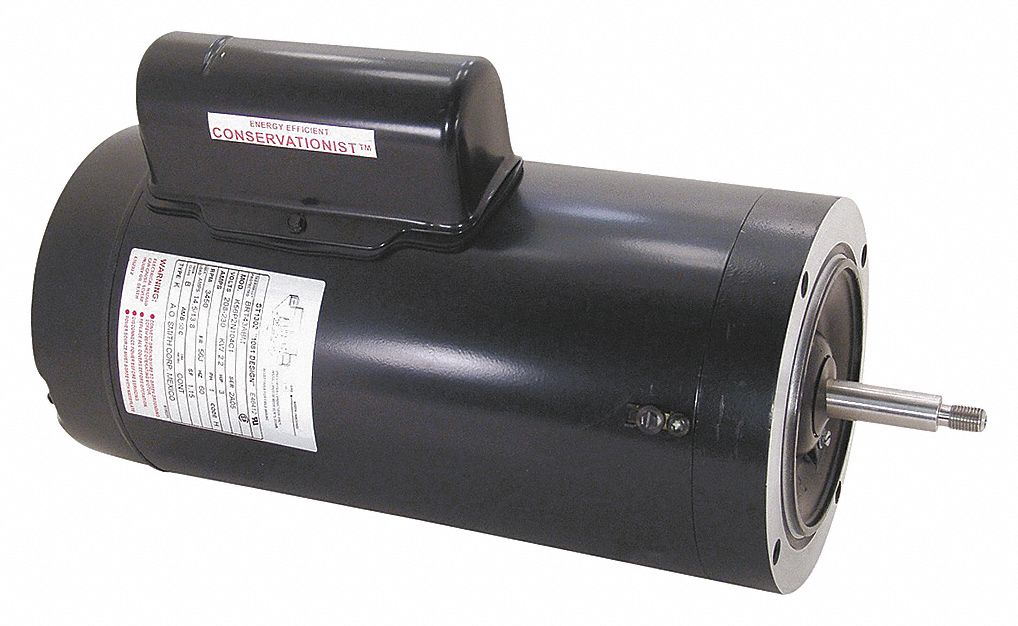

A.O. Smith Jet Pump Motor3 HP230 Volt3450 RPM56J FrameC-Face MountBall BearingS.F. - 1.15

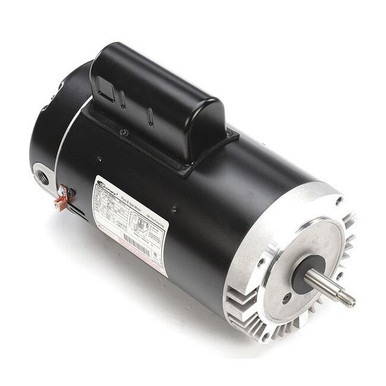

AO Smith 3hp 230v EE 1.15SF 5.5in Barrel Diameter Threaded Motor

Motor, Century, 3.0hp, 208v-230v, 1-Spd, 56Jfr, C-Face Thd, EE

This quality A.O. Smith Threaded Shaft Motor is found on many brands of pool pump. Some of these pool pump brands are Hayward, Jacuzzi, and others.This motor directly replaces the "original" motor that came with your pool pump. No pump manufacturer manufactures their own motors. We sell A.O. Smith motors because we have found them to be long lasting and reliable. A.O. Smith manufactured motors are the only brand of replacement motor we use in our local repair work.Features:All copper windingsAutomatic thermal protection Capacitor startOpen drip proof design Stainless steel threaded shaft Sealed Ball Bearings"1081" Motor Design Maximum Temperature 50 Degrees Celsius AmbientNEMA "56J" Face Mount60 HertzSingle phaseSingle speed (3450 RPM)Rotation - CCW at Pump End

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 3 HP - Up Rated Energy Efficient Service Factor: 1.15 56J Frame 56C Face Mount Threaded Shaft 208/230 Volt 14.4 - 13.3 amps Capacitor Start Automatic Overload Protection Non-Reversible CCW Stainless Steel Shaft Cross References: B818, EB818, 17458, ST1302, C1440, SPX1625Z1M, SP3025, R0337705, 9081-0144-R, R0556105 Replaces Hayward Super II Motor SPX1625Z1M (Pump model: SP3025) Replaces Jacuzzi number 9081-0144-R Replaces Jandy Motors R0556105, R0337705 (Pump models: JHP3.0, HHP3.0) When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.?
