A.O. Smith . H567
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 4MB85 | 1 | 1 | ||
 Zoro | G3149921 | 1 | 23 | 1 | 1 @ $304.99 |
 Global Industrial | WBB245088 | 1 | -2 | 1 | 1 @ $429.95 |
| SupplyHouse | H567 | 1 | 1 | ||
| AD8TRH | 1 | 1 | 1 @ $612.10 | ||
| Amazon | B000LDNTLS | 1 | 1 | 1 @ $317.31 | |
 MRO Supply | 5812537 | 1 | 1 | 1 @ $151.81 | |
| H567 | 1 | 1 | 1 @ $400.13 | ||
 National Supply Network | B245088 | 1 | -2 | 1 | 1 @ $302.95 |
| sustainablesupply.com | C1561184 | 1 | 1 | 1 @ $425.64 | |
 emotorpro.com | H567 | 1 | -2 | 1 | 1 @ $384.85 |
| uri.com | H567 | 1 | -2 | 1 | 1 @ $1047.22 |
 simsupply.com | CU-344D423835 | 1 | 46 | 1 | 1 @ $344.51 |
 midwestapplianceparts.com | H567-AO-P | 1 | 1 | 1 @ $435.32 | |
| Square One | H567 | 1 | 1 | ||
| Galco | H567 | 1 | 1 | ||
 homeessentialsdirect.com | H567 | 1 | -2 | 1 | 1 @ $450.13 |
 simsupply.com | ZO-G3149921 | 1 | 9 | 1 | 1 @ $361.02 |
| H567-AOST | 1 | 1 | 1 @ $0.00 | ||
| H567 | 1 | 3 | 1 | 1 @ $537.53 | |
| H567 | 1 | -2 | 1 | 1 @ $473.18 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

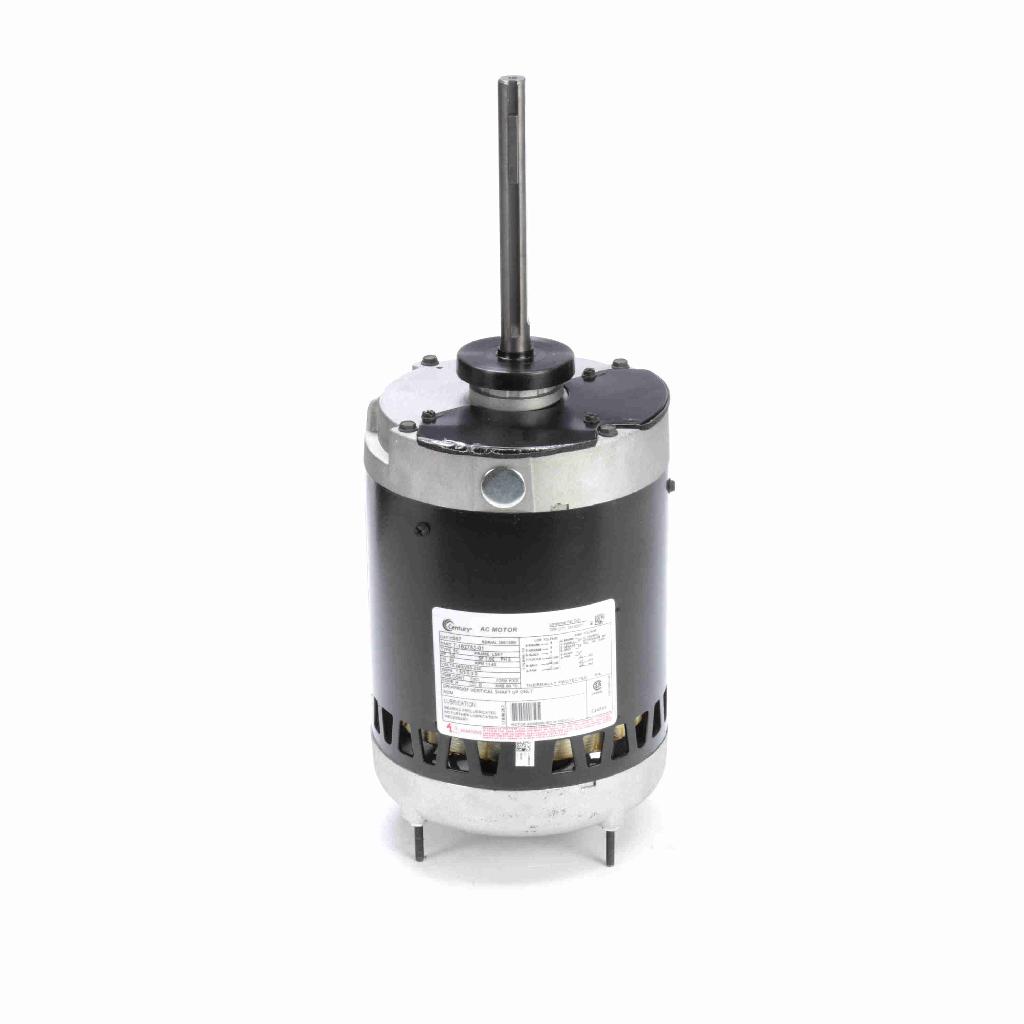

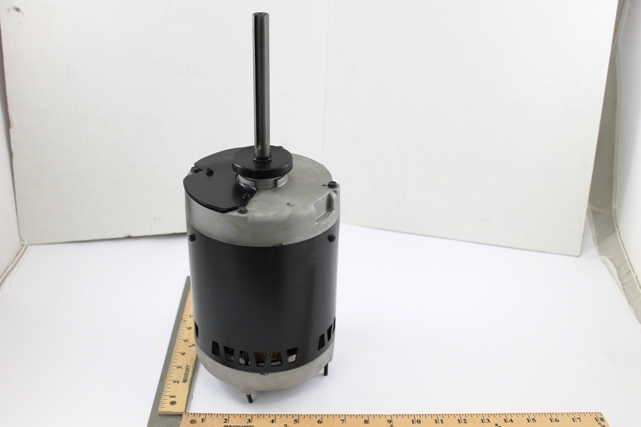

A.O. Smith H567 3/4 HP Three Phase 56 Frame (6 1/2") Commercial Condenser Fan Motor 1140 RPM - H567
Brand: A. O. Smith
200-230/460 Volt1140 RPMClosed Shaft EndReversing PlugBall BearingShaft w/ both keyway & flat
Listing
| Product group | Home Improvement |
|---|---|
| Product type | HOME_LIGHTING_ACCESSORY |
| Part number | H567 |
| Label | A.O. Smith |
| Manufacturer | A.O. Smith |
Catalog
| Category | Tools & Home Improvement |
|---|---|
| MPN | H567 |
| Manufacturer | A.O. Smith |
Analytics
| Case Qty | 1 units |
|---|---|
| Atom Count | 1 |
Condenser Fan Motor, 3/4 HP, 1140 RPM, 60Hz
Brand: Century
' Condenser Fan Motor, Motor Design 3-Phase, Motor Enclosure Design Open Air-Over, 3/4 HP, RPM Range 1101-1200, Nameplate RPM 1140, Voltage 200-230/460, 56Y Frame, Number of Speeds 1, Overall Length 16-5/16 In., Shaft Length 6 In., Shaft Orientation Up, Features Auto Protector, Quick Connect Design, Reversible, Motor Shaft Rotation CW/CCW, Full Load Amps 2.8-3.0/1.5, Stud Motor Mounting Type, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Ball '
Details
- Price For: Each Hz: 60 Motor Service Factor: 1.00 Motor Shaft Rotation: CW/CCW Motor Bearings: Ball Phase: 3 No. of Speeds: 1 Motor Sub Application: Condenser Fan Motor Application: HVAC/R Motor Enclosure Design: Open Air-Over Item: Condenser Fan Motor Motor Thermal Protection: Auto Motor Design: 3-Phase Duty: Continuous
- Standards: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642) Voltage Compatibility: 200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460 Features: Auto Protector, Quick Connect Design, Reversible Frame: 56Y Voltage: 200-230/460 Ins. Class: B Shaft Length: 6" Motor Shaft Design: Flat Overall Length: 16-5/16" Motor Mounting Position: Vertical Shaft Up
- Nominal Efficiency: 78.0% Motor Mounting Type: Stud Nameplate RPM: 1140 Max. Ambient Temp.: 60 Degrees C HP: 3/4 Length Less Shaft: 10-5/16" Full Load Amps: 2.8-3.0/1.5 Shaft Dia.: 5/8" Body Dia.: 6-1/2" Country of Origin (subject to change): Mexico
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | ELECTRIC_MOTOR |
| Model | H567 |
| Part number | H567 |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Feature | Price For: Each Hz: 60 Motor Service Factor: 1.00 Motor Shaft Rotation: CW/CCW Motor Bearings: Ball Phase: 3 No. of Speeds: 1 Motor Sub Application: Condenser Fan Motor Application: HVAC/R Motor Enclosure Design: Open Air-Over Item: Condenser Fan Motor Motor Thermal Protection: Auto Motor Design: 3-Phase Duty: Continuous |
|---|---|
| Category | Tools & Home Improvement |
| MPN | H567 |
| UPC | 663001044338 |
| EAN | 663001044338 |
| Product group | BISS |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | CENTURY |
Analytics
| Offers | 10 |
|---|---|
| Case Qty | 1 units |
| Atom Count | 1 |
| Last Price | $579.57 |
AO Smith H567 6-1/2-Inch Frame Diameter 3/4 HP 1140 RPM 200-230 460-Volt 2.8-Amp Ball Bearing Condenser
Brand: AO Smith
Details
- 6-1/2-Inch Frame Diameter
- 3/4 HP
- 1140 RPM
Listing
| Binding | Tools & Home Improvement |
|---|---|
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Model | H567 |
| Part number | H567 |
| Items per pack | 1 |
| Label | Century Electric/AO Smith Motors Co |
| Manufacturer | Century Electric/AO Smith Motors Co |
Catalog
| Feature | 6-1/2-Inch Frame Diameter |
|---|---|
| Category | Tools & Home Improvement |
| MPN | H567 |
| UPC | 786674023704 |
| EAN | 786674023704 |
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | Century Electric/AO Smith Motors Co |
Analytics
| Category | lighting |
|---|---|
| Offers | 6 |
| Case Qty | 1 units |
| Atom Count | 1 |
| Last Price | $579.57 |
Condenser Fan Motor, 3/4 HP, 1140 rpm, 60Hz
Brand: Century Motors
Listing
| Product group | Home Improvement |
|---|---|
| Product type | HOME_LIGHTING_ACCESSORY |
| Part number | H567 |
Analytics
| Category | tools |
|---|---|
| Offers | 3 |
| Case Qty | 1 units |
| Atom Count | 1 |
| Last Price | $579.57 |
