Grainger.com
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 5XTA4 | 1 | 1 | ||
 Zoro | G1501613 | 1 | 1 | 1 | 1 @ $382.64 |
| Galco | H718 | 1 | 1 | ||
| AE7FUL | 1 | 1 | 1 @ $819.69 | ||
| AmazonSC | B007ICN0SC | 1 | 1 | ||
 MRO Supply | 5918612 | 1 | 1 | 1 @ $582.86 | |
| H718V1 | 1 | 1 | 1 @ $621.72 | ||
| sustainablesupply.com | C1565171 | 1 | 1 | 1 @ $438.83 | |
 emotorpro.com | H718V1 | 1 | -2 | 1 | 1 @ $431.25 |
 simsupply.com | ZO-G1501613 | 1 | 1 | 1 @ $499.24 | |
 midwestapplianceparts.com | H718V1-AO-P | 1 | 1 | 1 @ $458.25 | |
| bakerdist.com | CENH718V1 | 1 | 1 | 1 @ False | |
| midwestapplianceparts.com | H718V1 -AO-P | 1 | 1 | ||
| Square One | H718V1 | 1 | 1 | ||
 ktool.net | H718V1 | 1 | -2 | 1 | 1 @ $350.06 |
| H718-AOST | 1 | 1 | 1 @ $0.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

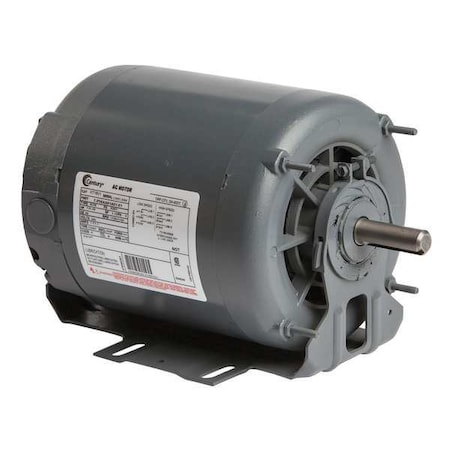

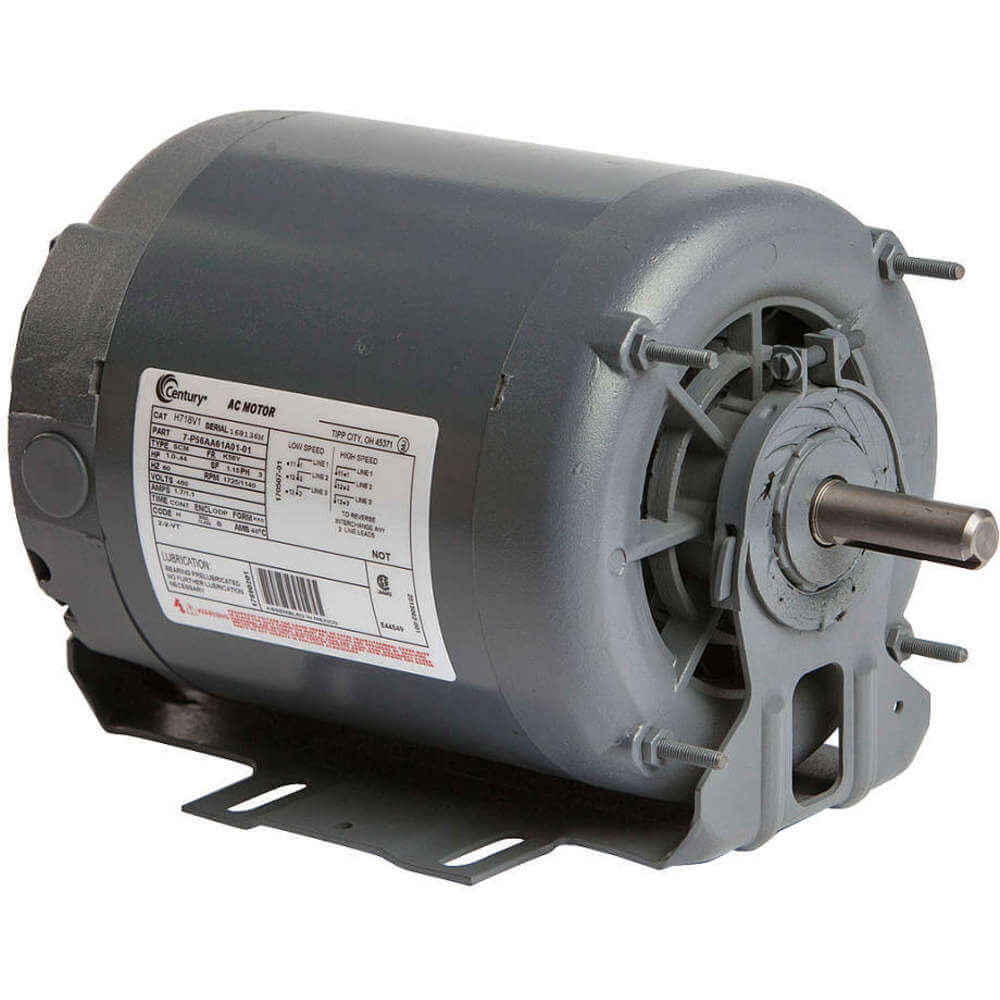

Motor, 3 Ph, 1 HP, 1745/1140, 460V, Eff 70.0
Brand: Century
'Belt Drive Motor, 3-Phase, Cradle Base HP, Nameplate RPM 1745/1140, Voltage 460, 3 Phase, Frame 56Y, Open Dripproof, Full Load Amps 1.7/1.1, 60 Hz, Cradle Base Motor Mounting Type, Thermal Protection None, Insulation Class B, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Overall Length 11 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.'
Details
- Price For: Each Motor Shaft Rotation: CW/CCW Motor Bearings: Ball Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Belt Drive Fan/Blower Motor Application: HVAC/R Item: Belt Drive Motor Motor Design: 3-Phase Duty: Continuous Voltage Compatibility: 460, 208-230/460 Standards: UL Recognized (E44549), CSA Certified (4642) Hz: 60 No. of Speeds: 2 Footnotes: 26
- Resilient Ring Dia.: 2-1/2" Length Less Shaft: 9-1/8" Phase: 3 Ring to Ring Center: 8-5/8" Shaft Dia.: 5/8" Nameplate RPM: 1745/1140 Frame Material: Steel Body Dia.: 6-1/2" HP: 1, 1/2 Frame: 56Y Full Load Amps: 1.7/1.1 Mounting Stud Pattern: 4-1/8" x 4-1/8" Ins. Class: B Voltage: 460 Motor Service Factor: 1.15 Shaft Length: 1-7/8" Motor Enclosure Design: Open Dripproof
- Overall Length: 11" Motor Thermal Protection: None Nominal Efficiency: 70.0% Motor Mounting Type: Cradle Base Country of Origin (subject to change): Mexico
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Model | H718V1 |
| Part number | H718V1 |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Feature | Price For: Each Motor Shaft Rotation: CW/CCW Motor Bearings: Ball Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Belt Drive Fan/Blower Motor Application: HVAC/R Item: Belt Drive Motor Motor Design: 3-Phase Duty: Continuous Voltage Compatibility: 460, 208-230/460 Standards: UL Recognized (E44549), CSA Certified (4642) Hz: 60 No. of Speeds: 2 Footnotes: 26 |
|---|---|
| Category | Tools & Home Improvement |
| MPN | H718V1 |
| Product group | BISS |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | CENTURY |
Analytics
| Category | lighting |
|---|---|
| Offers | 6 |
| Case Qty | 1 units |
| Last Price | $703.23 |

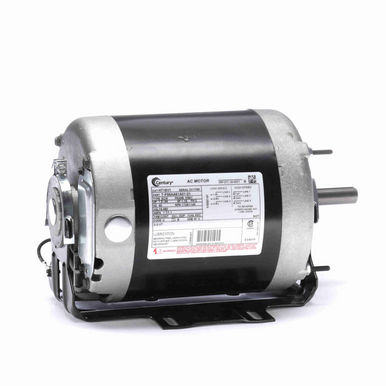

Century 1, 1/2 HP Belt Drive Motor, 3-Phase, 1745/1140 Nameplate RPM, 460 Voltage, Frame 56Y - H718V1
Brand: Century Electric Motor
Listing
| Product group | Home Improvement |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | H718V1 |
| Label | Century Electric Motor |
| Manufacturer | Century Electric Motor |
Catalog
| Feature | 1 - .44 hp 1725/1140 RPM, 1.7/1.1 amps, 460V 60 hz. |
|---|---|
| Category | Tools & Home Improvement |
| MPN | H718V1 |
| UPC | 663001324980 |
| EAN | 663001324980 |
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | Century Electric Motor |
Analytics
| Category | lighting |
|---|---|
| Offers | 3 |
| Case Qty | 1 units |
| Last Price | $703.23 |
