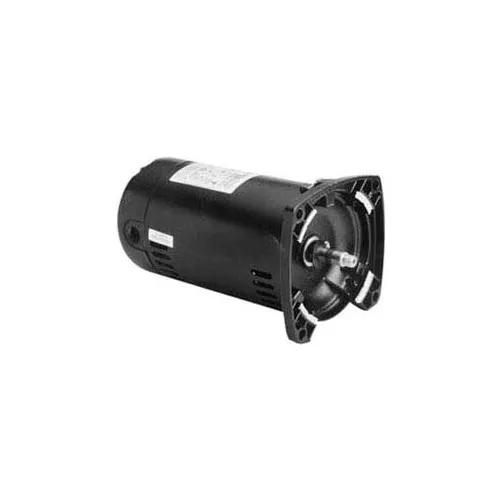

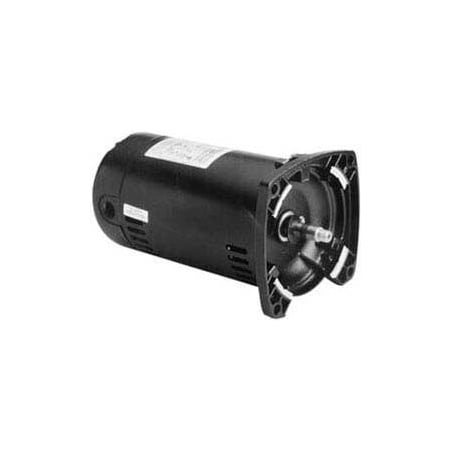

A.O. Smith . SQ1302V1

'Square Flange Pool Pump Motor, Capacitor-Start/Run Motor Design, Open Dripproof Motor Enclosure Design, 3 HP, Nameplate RPM 3450, 56Y Frame, Voltage 208-230, 60 Hz, 1 Phase, Full Load Amps 15.0-13.3, Face Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.15, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWSE, Two Compartment, UL Recognized, CSA Certified Standards'

AO SMITH - 3 HP Motor, full rated 230V

A.O. Smith Square Flange Pool Motor3 HP230 Volt15.4 Amp3450 RPMS.F. - 1.15Ball BearingFull Rated

The 3 HP Single Phase Motor 3450 208-230 15.4 60H 56Y is manufactured by AO Smith and has the part number of SQ1302 / SQ1302

AO Smith SQ1302 Replacement motor for 3HP Whisperflo

This quality A.O. Smith Square Flange SQ1302V1 Motor (Formerly SQ1302) is found on many brands of pool pump. Some of these pool pump brands are Sta-Rite, American Products, Waterco, Premier Springwater, Waterway, Jandy, Flotec, Red Jacket, Sears Jet, and others.This motor directly replaces the "original" motor that came with your pool pump. No pump manufacturer manufactures their own motors. We sell A.O. Smith motors because we have found them to be long lasting and reliable. A.O. Smith manufactured motors are the only brand of replacement motor we use in our local repair work.Features:All copper windingsAutomatic thermal protection Capacitor startOpen drip proof designStainless steel threaded shaft Sealed Ball BearingsMaximum Temperature 50 Degrees Celsius ambient60 HertzSingle phaseSingle speed (3450 RPM) Rotation - CCW at Pump End

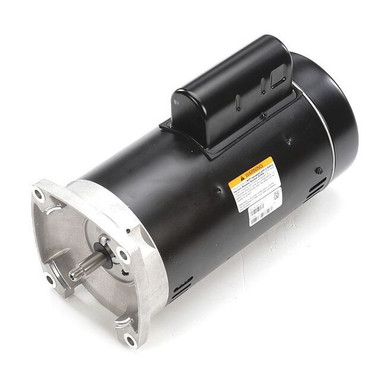

Motor, Century, 3Hp, 208-230V, 1-Sp, Sf1.15, 56Yfr

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. Part Number: SQ1302V1 - Replaces SQ1302 3 HP - Full Rated - Energy Efficient 230 Volts 15.4 amps Service Factor: 1.15 56Y Frame Square Flange (Face) 5/8" Threaded Shaft All copper windings Automatic thermal protection Stainless steel threaded shaft Double sealed ball bearings Replaces Sta-Rite numbers AE100HHL, AE100HLL (Pump Models: P4E6H-190L, P6E6H-209L, PE6H-185L & PE6H-139LC) Replaces Pentair numbers 355703, 355395, 071317 ( Pump Models: CFII-NI-3F, CHII-NI-3F, CHII-NI-3FE, WFE-12, WF-12) Cross Reference: AE100HHL, AE100HLL, K56P2P100, K56P2P102, K56P2PM100, K56P2PM100A1, K56P2PM100A2, K56P2PM101, SQ1302, 165892, 168888, B844, C1449, EB844, 16362, 7-168888-07, 8-168888-07, 8-168888-06, 5KCR49ZN2499X, 0-196329-20, 355703, 355395, 071317 When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.?
