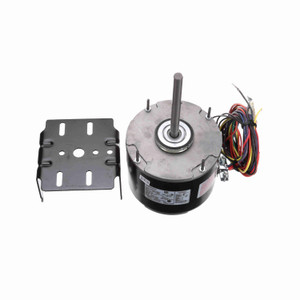

Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.10, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 48 in, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle

Use with unit heaters and other shaft-mounted fan and blower equipment in dusty, dirty, noncombustible environments. This listing is for each. Technical Specification Item Unit Heater Motor Motor Application HVAC/R Motor Sub Application Unit Heater Motor Design Permanent Split Capacitor HP 1/4 Nameplate RPM 1075 Voltage 208-230 Frame 48Y Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Cradle Base No. of Speeds 1 Hz 60/50 Phase 1 Full Load Amps 1.8-1.8 Motor Thermal Protection Auto Ins. Class B Motor Service Factor 1 Motor Bearings Ball Max. Ambient Temp. 40 Degrees C Motor Shaft Rotation CW/CCW Duty Continuous Motor Efficiency Group Energy Efficient Overall Length 10-3/8 Length Less Shaft 5-3/8 Shaft Dia. 1/2 Shaft Length 5 Body Dia. 5-5/8 Ring Dia. 2-1/4 Ring to Ring Center 4-15/16 Mounting Stud Pattern 3-5/8 x 3-5/8 Application Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments Standards CSA Certified (LR43341/LR4642), UL Recognized (E46412/E49807) Includes 4 MFD 370 VAC Capacitor w/End Cap, Bracket Assembly, 4 Split Rings, Mounting Base, Resilient Rings, 2 Mounting Clamp Assemblies

48Y Frame, Ball Bearings; 1.8 amps Permanent Split Capacitor, Totally Enclosed Air-Over Shaft 1/2" x 5"; Rotation Reversible Motor Case Length 5 3/8"; Capacitor Included 1 Year Manufacture Warranty
