COMTROL . 30128-8

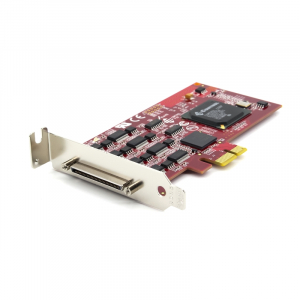

the Rocketport Express Octa Db9 Is An Eight Port Serial Adapter That Is Compatible With Systems That Have X1, X4, X8, Or X16 Pci Express Expansion Slots. The Card Is Designed For Standard And Low-profile Pcs And Servers And Ships With A Low-profile And A Standard-height Bracket. The Product Provides Support For Software-selectable Rs-232/422/485 Serial Communications And Data Transmission Speeds Up To 921 Kbps. Serial Connections Are Made Utilizing An External Fan-out Octacable With Eight Db9m Connectors That Is Included With The Product. All Rocketport Express Products Are European Rohs Directive Compliant.

Product Description Comtrol RocketPort EXPRESS Octacable DB9 - serial adapter<br /> Device Type Serial adapter<br /> Form Factor Plug-in card<br /> Interface (Bus) Type PCI Express x1<br /> Ports RS-232/422/485 x 8<br /> Data Link Protocol RS-232, RS-422, RS-485<br /> Data Transfer Rate 921.6 Kbps<br /> Processor Clock Speed 66 MHz<br /> System Requirements SCO OpenServer 5, Linux, QNX, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003, SCO OpenServer 6, Microsoft Windows Vista, FreeBSD 5.x or later<br /> Manufacturer Warranty 5 years warranty<br /> <br /> <br /> EXTENDED SPECIFICATIONS<br /> <br /> General<br /> Device Type Serial adapter <br /> Form Factor Plug-in card <br /> Interface (Bus) Type PCI Express x1 <br /> Networking<br /> Ports RS-232/422/485 x 8 <br /> Connectivity Technology Wired <br /> Data Link Protocol RS-232, RS-422, RS-485 <br /> Data Transfer Rate 921.6 Kbps <br /> Processor / Memory<br /> Processor Clock Speed 66 MHz <br /> Expansion / Connectivity<br /> Interfaces 8 x RS-232/422/485 - 9 pin D-Sub (DB-9) <br /> Compatible Slots 1 x PCI Express x1 <br /> Miscellaneous<br /> Cables Included 1 x serial cable ( external ) <br /> Compliant Standards UL, cUL, FCC Part 15 B, FCC <br /> Software / System Requirements<br /> OS Required SCO OpenServer 5, Linux, QNX, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003, SCO OpenServer 6, Microsoft Windows Vista, FreeBSD 5.x or later <br /> Manufacturer Warranty<br /> Service & Support 5 years warranty <br /> Service & Support Details Limited warranty - 5 years <br /> Environmental Parameters<br /> Min Operating Temperature 32 °F <br /> Max Operating Temperature 140 °F <br /> Humidity Range Operating 5 - 95%
