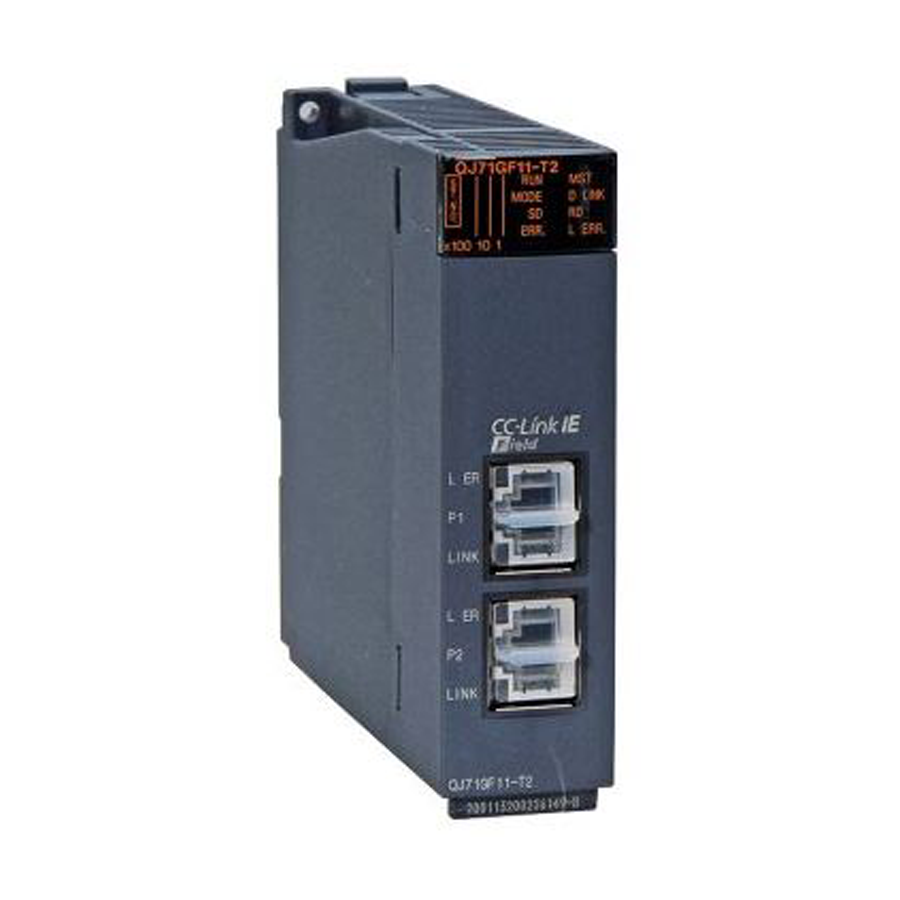

MITSUBISHI . QJ71GF11-T2

[Maximum link points per network] <br>RX 16384 points <br>RY 16384 points <br>RWr 8192 points <br>RWw 8192 points <br>[Maximum number of linkpoints per station] <br>Master station <br> RX 16384 points <br> RY 16384 points <br> RWr 8192 points <br> RWw 8192 points <br>Local station <br> RX 2048 points <br> RY 2048 points <br> RWr 1024 points <br> RWw 1024 points <br>[Transmissionspecifications] <br>Communication speed 1Gbps <br>Connection cable An Ethernet cable that meets the1000BASE-T standard:Category 5e orhigher(double shielded,STP),straightcable <br>Maximum station-tostationdistance 100m maxi.(Compliant with ANSI/TIA/EIA-568-B(Category 5e)) <br>Total distance Line topology:12000m(when cables areconnected to one master station and 120slave stations(inclusive or exclusive of asubmaster station)) <br>Star topology:Depends on the systemconfiguration.Ring topology:12100m(when cables areconnected to one master station and 120slave stations(inclusive or exclusive of asubmaster station)) <br>Network topology Line topology,star topology(Coexistence of line topology and startopology is possible.),and ring topology <br>[Number of connectedstations in one network] <br>Master station 1 station(Up to 120 slave stations(with or withouta submaster station)can be connectedto the master station.) <br>Local station 120 stations <br>[Station type]Master station,local station <br>[Communication method]Token passing method <br>[Number of occupied I/O points]32 points(I/O assignment:Intelligent 32 points) <br>[Internal current consumption(5VDC)]1.0A <br>[Weight]98(H)x27.4(W)x115(D)[mm] <br>[Weight]0.18kg<br><br><br>(1)
