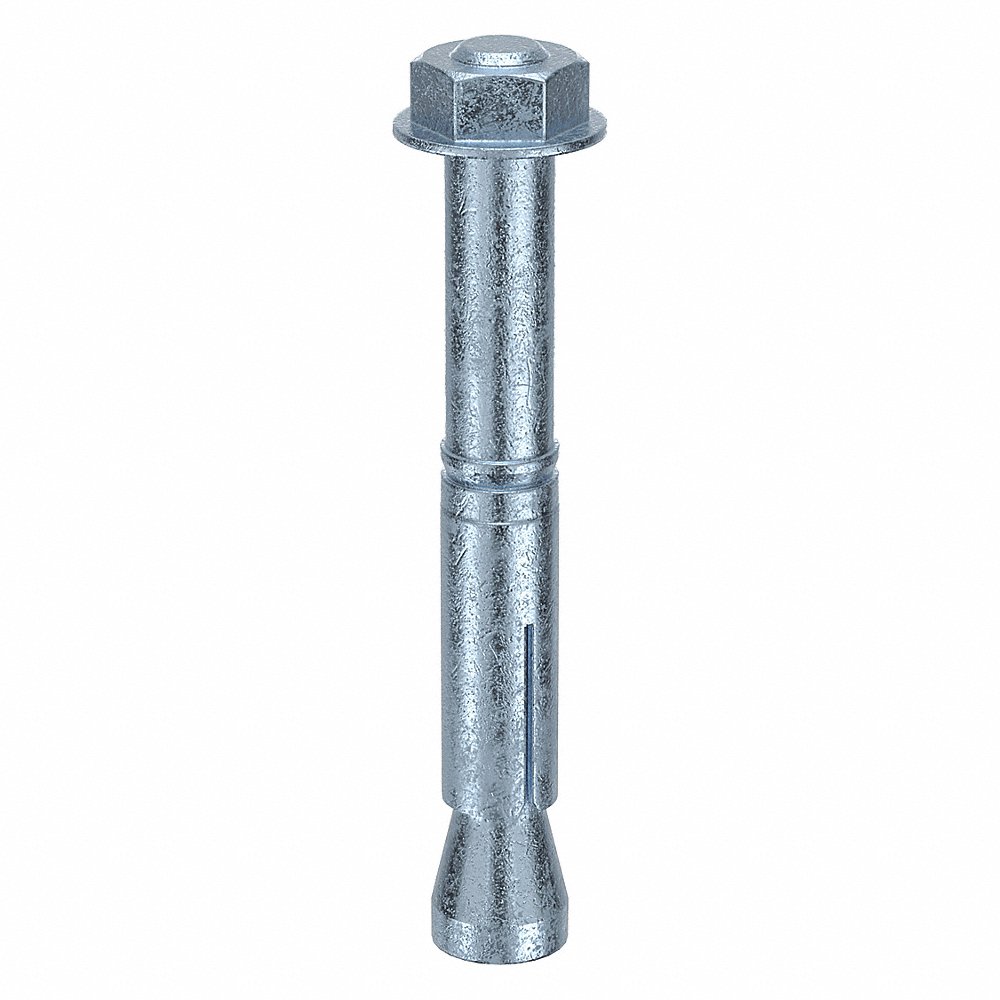

Metric Seismic Wedge Anchors • DIN 8.8 (Grade 5) steel Must be set in a metric hole Capable of sustaining heavy load values in solid cracked, or uncracked concrete, under dead, variable, windy, or seismic conditions. Collapsible sleeve ensures secure clamping, even during anchor movement. Each anchor is marked with a minimum embedment ring to ensure proper fastening. Use in all structural applications, including racking, equipment shelving, bracing, and seating. Bolts include nut and washers. Approved for cracked concrete under ACI 318 and tested under ACI 355.2 as a category 1 cracked concrete anchor. This listing is for pkg. of 50. Technical Specification Item Wedge Anchor Stud Type Metric High Load Material Grade 5 Steel Anchor Dia. 12mm Anchor Length 80mm Thread Size M8 x 1.25mm Min. Embedment 60mm Embedment In Concrete 60mm Max. Work Thickness 0mm Allowable Tension in 2500 PSI Uncracked Concrete (Lbs.) 1936 Allowable Tension in 6500 PSI Uncracked Concrete (Lbs.) 3098 Allowable Shear in 2500 PSI Uncracked Concrete (Lbs.) 2557 Allowable Shear in 6500 PSI Uncracked Concrete (Lbs.) 2557 Allowable Tension in 2500 PSI Cracked Concrete (Lbs.) 1162 Allowable Tension in 6500 PSI Cracked Concrete (Lbs.) 1868 Allowable Shear in 2500 PSI Cracked Concrete (Lbs.) 2557 Allowable Shear in 6500 PSI Cracked Concrete (Lbs.) 2557 Agency Compliance ACI 355.2/ETA-02-0030 Meets/Exceeds Category 1 ACI
