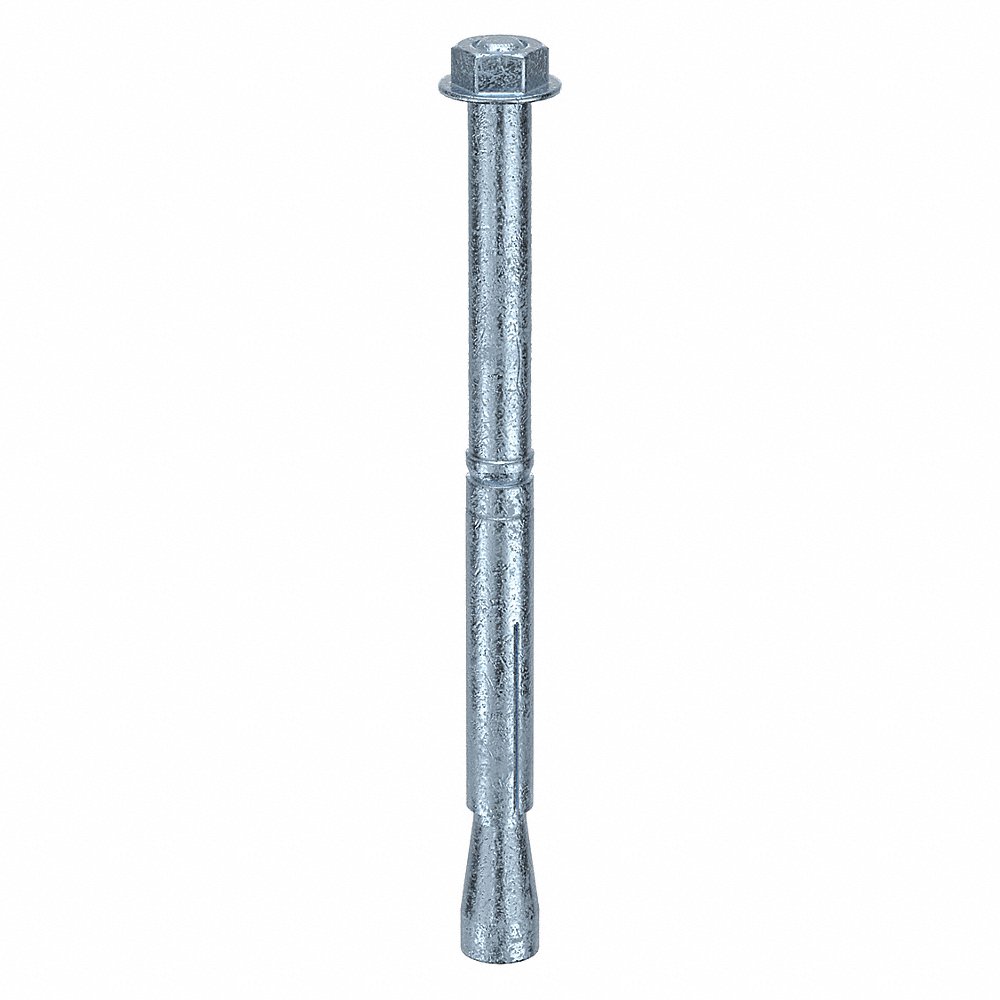

Wedge Anchor Stud, System of Measurement Metric, Anchor Diameter 18 mm, Thread Size M12, Overall Length 212 mm, Thread Length Not Applicable, Eyelet Hole Size Not Applicable, Material Steel, Material Grade/Class Class 8.8, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 18 mm, Minimum Installation Depth 60 mm, Minimum Material Thickness 177 51/64 mm, Ultimate Shear Strength (4,000 psi Concrete) 18,849 lb, Ultimate Tension Strength (4,000 psi Concrete) 9,988 lb, Nut Width 19 mm

Metric Seismic Wedge Anchors DIN 8.8 (Grade 5) steel Must be set in a metric hole Capable of sustaining heavy load values in solid cracked, or uncracked concrete, under dead, variable, windy, or seismic conditions. Collapsible sleeve ensures secure clamping, even during anchor movement. Each anchor is marked with a minimum embedment ring to ensure proper fastening. Use in all structural applications, including racking, equipment shelving, bracing, and seating. Bolts include nut and washers. Approved for cracked concrete under ACI 318 and tested under ACI 355.2 as a category 1 cracked concrete anchor. This listing is for pkg. of 10. Technical Specification Item Wedge Anchor Stud Wedge Anchor Type Wedge Anchor Seismic Approved Yes Anchor Material Steel Material Grade Class 8.8 Fastener Finish Zinc Plated Anchor Dia. 18 mm Anchor Length 212 mm Max. Work Thickness 100 mm Thread Size M12 x 1.75mm Min. Embedment 80 mm Embedment In Concrete 80 mm Agency Compliance ACI 355.2/ETA-02-0030 Meets/Exceeds Category 1 ACI
