Grainger.com
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 46N476 | 1 | 1 | ||
 Zoro | G2371227 | 1 | 7 | 1 | 1 @ $180.46 |
| SupplyHouse | 5R028 | 1 | 1 | ||
| sustainablesupply.com | C2906067 | 1 | Add to Cart | 1 | 1 @ $246.22 |
| MO-RBC-5R028 | 1 | -2 | 1 | 1 @ $188.06 | |
 simsupply.com | ZO-G2371227 | 1 | 3 | 1 | 1 @ $199.67 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

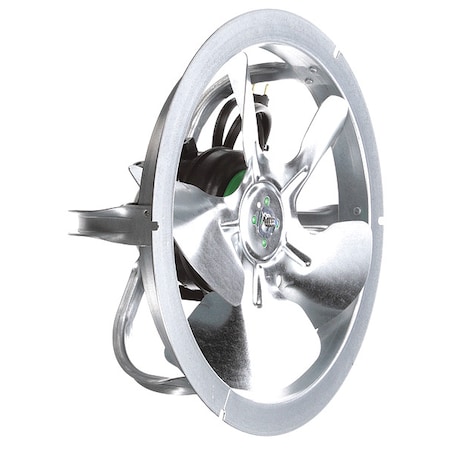

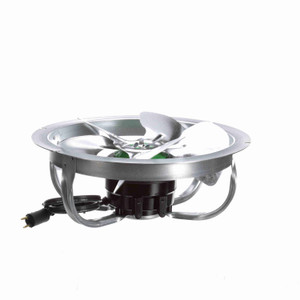

Brushless DC Motor: Aluminum Frame, Shroud Mounting, 16 W Output, 1, 550 Nameplate RPM, CWLE - 1 Each
Brand: Morrill Motors
Listing
| Binding | Misc. |
|---|---|
| Product group | Home Improvement |
| Product type | TOOLS |
| Part number | 5R028 |
| Items per pack | 1 |
| Label | Morrill |
| Manufacturer | Morrill |
Catalog
| Feature | 12W Unit Bearing ECM Fan Motor, 0.4A, CW (115V) |
|---|---|
| Category | Industrial & Scientific |
| MPN | 5R028 |
| UPC | 645220711178 |
| EAN | 645220711178 |
| Product group | Home Improvement |
| Product type | BUILDING_MATERIAL |
| Manufacturer | Morrill Motors |
Analytics
| Case Qty | 1 units |
|---|---|
| Atom Count | 1 |
Brushless DC Motor: Aluminum Frame, Shroud Mounting, 16 W Output, 1, 550 Nameplate RPM, CWLE - 1 Each
Brand: Morrill
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Model | 5R028 |
| Part number | 5R028 |
| Label | MORRILL |
| Manufacturer | MORRILL |
Analytics
| Case Qty | 1 units |
|---|---|
| Atom Count | 1 |
Brushless DC Motor, 1/50 HP, 1550 RPM, 0.4A
Brand: Morrill
'Brushless DC Motor, 1/50 HP, Output Watts 16, 1550 Nameplate RPM, Nonstandard Frame, Voltage 115, Hz 60, 1 Phase, Full Load Amps 0.4, Auto Motor Thermal Protection, Ins. Class B, No. of Speeds 1, Unit Motor Bearings, Motor Service Factor 1.00, Ambient Temperature -40 to 55 Degrees C, Motor Frame Material Cast Aluminum, Overall Length 4-3/16 In., Length Less Shaft 3-1/4 In., Shaft Dia. 1/4 In., Shaft Length 5/8 In., Body Dia. 3-5/16 In., Continuous Duty, Plug Type 2 Prong Lyall M-2-24'
Details
- <b>Price For:</b> Each <b>Motor Thermal Protection</b>: Auto <b>Phase</b>: 1 <b>Overall Length</b>: 4-3/16" <b>Capacitor Required</b>: No <b>Frame</b>: Nonstandard <b>Application</b>: Condenser and Evaporator Fans, Walk In Coolers, and Freezers <b>Standards</b>: UL Recognized (E258064), cUR <b>Length Less Shaft</b>: 3-1/4" <b>Motor Service Factor</b>: 1.00 <b>Nameplate RPM</b>: 1550 <b>Voltage</b>: 115 <b>RPM Range</b>: 1501-1600
- <b>Motor Sub Application</b>: Refrigerator/Freezer <b>Shaft Length</b>: 5/8" <b>Shaft Dia.</b>: 1/4" <b>Output Watts</b>: 16 <b>Hz</b>: 60 <b>Frame Material</b>: Aluminum <b>Motor Application</b>: HVAC/R <b>No. of Speeds</b>: 1 <b>Includes</b>: Fan Blade, Mounting Bracket, and Moisture Shield <b>Body Dia.</b>: 3-5/16" <b>Voltage Compatibility</b>: 115, 120, 115/208-230, 115/230, 120/240 <b>Bolt Circle Dia.</b>: 9-13/16" <b>Mounting Pattern</b>: 9-13/16"
- <b>Motor Frame Material</b>: Cast Aluminum <b>Duty</b>: Continuous <b>Ambient Temperature</b>: -40 to 55 Degrees C <b>Ins. Class</b>: B <b>HP</b>: 1/50 <b>Full Load Amps</b>: 0.4 <b>Motor Bearings</b>: Unit <b>Plug Type</b>: 2 Prong Lyall M-2-24 <b>Item</b>: Brushless DC Motor <b>Country of Origin (subject to change)</b>: Mexico
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Part number | 5R028 |
| Items per pack | 1 |
| Label | MORRILL |
| Manufacturer | MORRILL |
Analytics
| Case Qty | 1 units |
|---|---|
| Atom Count | 1 |
