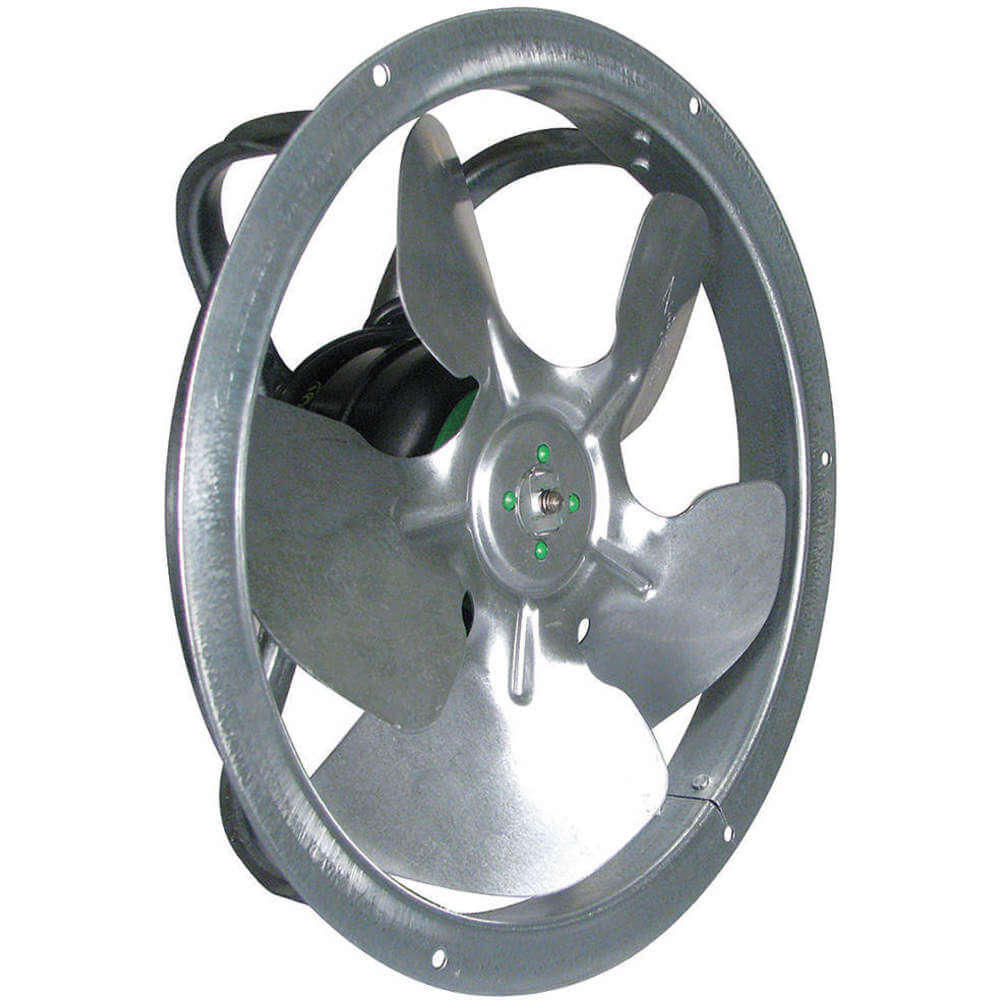

Morrill SSC2B12CSHBV1 | Brushless Dc Motor Ecm 1/60 Hp 1550 Rpm | 6GKV6 | Raptor Supplies Worldwide

Electronic Thermal Protection, One year warranty. Application: Refrigeration, condenser and Evaporator Fans, Walk In Coolers, and Freezers. UL Recognized (E258064), cUR. Includes Fan Blade, Mounting Bracket, and Moisture Shield.

<p><b>Specifications: </b><ul><li>Item:-Brushless ECM Motor</li><li>Motor Application:-HVAC/R</li><li>Motor Sub Application:-Refrigerator/Freezer</li><li>Motor Type:-ECM</li><li>Enclosure:-Totally Enclosed Air-Over</li><li>HP:-1/60</li><li>Output Watts:-12</li><li>Nameplate RPM:-1550</li><li>Frame:-Nonstandard</li><li>Voltage:-115</li><li>Frequency:-60 Hz</li><li>Phase:-1</li><li>Full Load Amps:-0.3</li><li>Mounting:-Bracket</li><li>Thermal Protection:-Electronic</li><li>Insulation Class:-B</li><li>Number of Speeds:-1</li><li>Rotation:-CWLE</li><li>RPM Range:-1501-1600</li><li>Bearings:-Ball</li><li>Ambient Temperature:--40 to 55 Degrees C</li><li>Frame Material:-Aluminum</li><li>Overall Length:-4-3/16"</li><li>Length Less Shaft:-3-1/4"</li><li>Shaft Type:-Threaded 1/4-20</li><li>Shaft Dia.:-1/4"</li><li>Body Dia.:-3-3/10"</li><li>Mounting Pattern:-9-17/32" Diameter Bolt Circle</li><li>Mounting Position:-All Angle</li><li>Bolt Circle Dia.:-9-17/32"</li><li>Application:-Condenser and Evaporator Fans, Walk In Coolers, and Freezers</li><li>Duty:-Continuous</li><li>Plug Type:-2 Prong Lyall M-2-24</li><li>Standards:-UL Recognized (E258064), cUR</li><li>Includes:-Fan Blade, Mounting Bracket, and Moisture Shield</li><li>Green/Sustainable Attribute:-Product Contributes to Reducing Energy Consumption</li><li>UNSPSC:-26101603</li></ul></p>
