Morris Products 23171 Screw On Wire Connector, P1 Type, Gray, 22 - 14 Awg, max: 1 #14 w/1 #20 min: 2 #22 Wire Combina...

23171 Features: -Screw-on wire connectors. -Ribbed-cap provides a more secure grip and faster fingertip starts even when hands become slippery. -No pre-twisting of conductors is required – spring creates its own thread. -Reusable screw on wire connector threads on or off splice for fast and easy circuit changes and additions. -No minimum order. -Packaging: Bagged bulk pack. Product Type: -Connectors. Generic Specifications: -Tough, UL 94V-2 flame retardant shell will not crack or break, even when applied to maximum wire combinations under extreme pressure. -Max volts: 300 volts. -Wire combinations: No.22 thru 14 AWG. Dimensions: Overall Height - Top to Bottom: -0.598". Overall Width - Side to Side: -0.339". Overall Product Weight: -1.6 lbs.

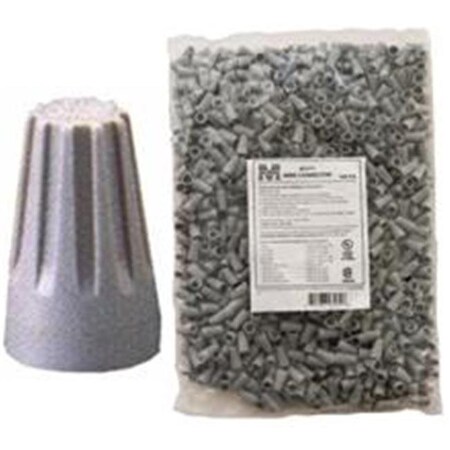

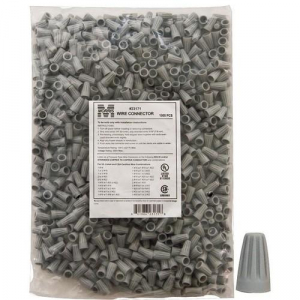

Screw-On Wire Connectors P1 Gray Bagged 1000 Bulk Pack - Color-coded Screw On Wire Connectors for quick connections anytime.Features. Six color-coded screw on wire connectors cover a full range of wire sizes from 22 through 8 Awg.. Ribbed-Cap provides a more secure grip and faster fingertip starts even when hands become slippery.. Temperature rated at 221F 105C maximum.. No pre-twisting of conductors is required - spring creates its own thread.. Reusable screw on wire connector threads on or off splice for fast and easy circuit changes and additions.. Tough UL 94V-2 Flame retardant shell will not crack or break even when applied to maximum wire combinations under extreme pressure.Specifications. Packaging - Bagged Bulk Pack.. Type - P1.. Color - Gray.. Wire Combinations - No.22 Thru 14 Awg.. Max Volts - 300V.. Pack of 1000.. Item Weight - 1.6 lbs.. NM - Screw-On Wire Connectors.. Master Section - 3 Wire Management.
