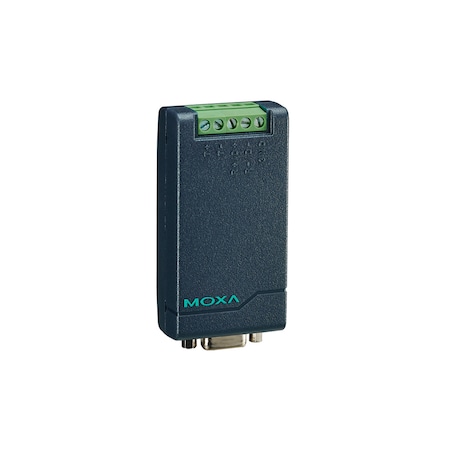

Converter [Moxa] TCC-80 Converter
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| C1S517600001112 | 1 | 70 | 1 @ $60.30, 5 @ $53.30, 10 @ $48.50, 25 @ $45.00, 50 @ $44.00 | ||
| TCC-80 | 1 | 88 | 1 @ $36.00, 3 @ $35.10, 5 @ $34.22, 10 @ $33.36 | ||
| Newark | 13AC1759 | 1 | 1 | 1 @ $0.00 | |
| Allied Electronics | 71990348 | 1 | 1 | ||
 Zoro | G4574284 | 1 | 1 | 1 | 1 @ $102.99 |
| Digi-Key | 15216232 | 1 | 28 | 1 | 1 @ $117.00 |
 industrialnetworking.com | TCC-80 | 1 | 2 | 1 | 1 @ $94.16 |
| rspsupply.com | MOXA TCC-80 | 1 | -2 | 1 | 1 @ $102.48 |
| us.rs-online.com | 71990348 | 1 | 17 | 1 | 1 @ $87.93 |
| TCC-80 | 1 | -2 | 1 | 1 @ $90.39 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Moxa RS-232/422/485 Converter. Port Powered.
Brand: Moxa
When installing a TCC-80 or TCC-80I converter, it is important to pay attention to power consumption, RS-232 cable length, and RS-422/485 transmission distance. In general, the TCC-80 and TCC-80I obtain 50 mW of power from the power source. Standard PC COM ports can provide 70 to 90 mW of power if the TxD, RTS, and DTR lines are connected. Moreover, the RS-232 cable should be shorter than 15 m (@ 9600 bps) to ensure that less power is lost from the host/device to the TCC-80. The remainder of the supplied power is used for transmitting the RS-422/485 signal.
Details
- External power source supported but not required, Compact size
- Converts RS-422, and both 2-wire and 4-wire RS-485, RS-485 automatic data direction control
- Automatic baudrate detection, Built-in 120-ohm termination resistors
- 2.5 kV isolation (for TCC-80I only)
- LED port power indicator
Listing
| Binding | Personal Computers |
|---|---|
| Product group | PC Accessory |
| Product type | PERSONAL_COMPUTER |
| Model | TCC-80 |
| Part number | TCC-80 |
| Label | MOXA |
| Manufacturer | MOXA |
Analytics
| Case Qty | 1 units |
|---|---|
| Atom Count | 1 |
Moxa TCC-80 - Port-Powered RS-232 to RS-422/485 Converter with 15 KV Serial ESD Protection and Terminal Block on The RS-422/485 Side
Brand: Moxa
MOXA TCC-80 - Port-powered RS-232 to RS-422/485 Converter with 15 KV Serial ESD Protection and Terminal Block on the RS-422/485 Side
Details
- Converts RS-422, and both 2-wire and 4-wire RS-485
- RS-485 automatic data direction control
- Compact size / Automatic baudrate detection
- Built-in 120-ohm termination resistors / LED port power indicator
- External power source supported but not required
