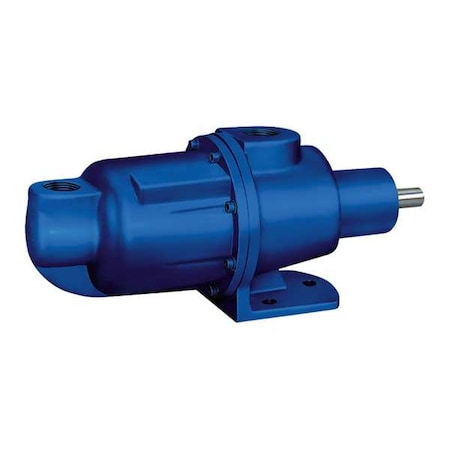

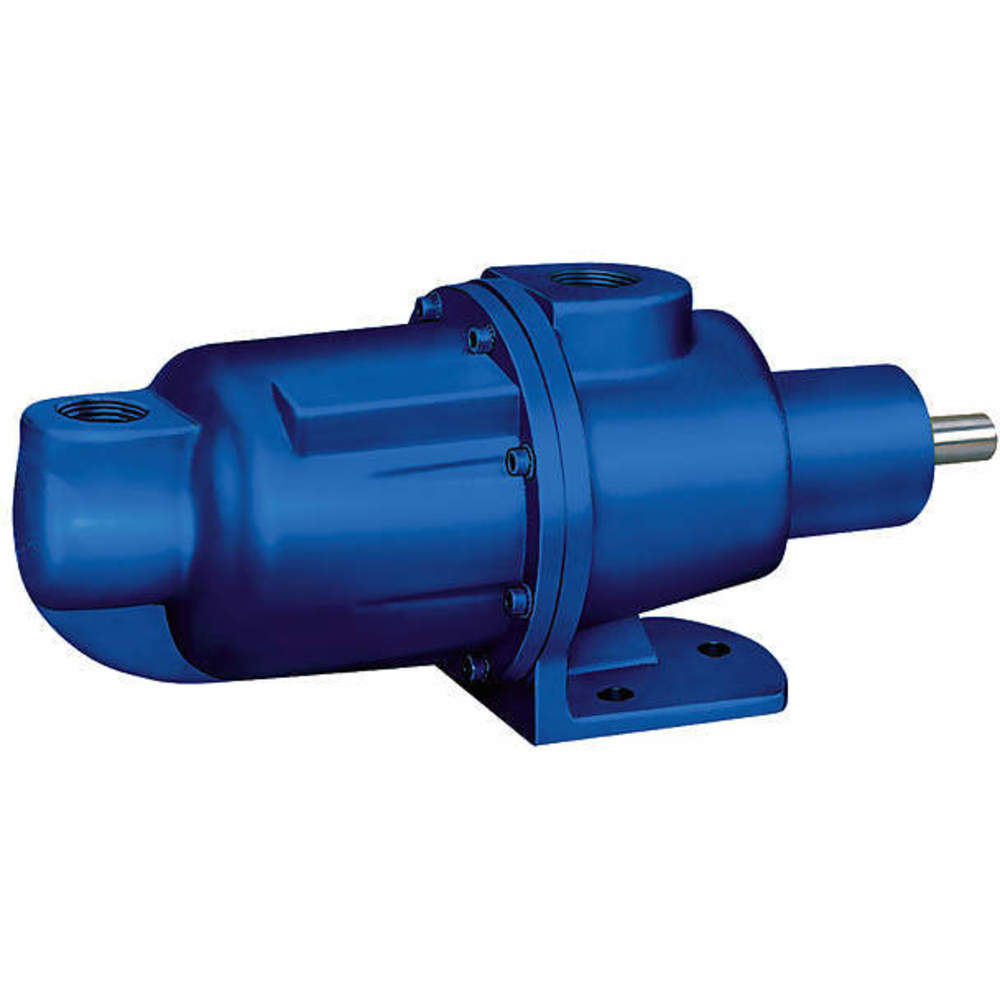

Progressive Cavity Pump, Discharge Connection Size 3/4 in, Discharge Connection Type NPT, Horsepower (Maximum) 1/2 hp, Housing Material Cast Iron, Intake Connection Size 3/4 in, Intake Connection Type NPT, Media Temperature (Maximum) 160 Degrees F, Media Temperature (Minimum) 10 Degrees F, Operating Pressure (Maximum) 50 psi, Pump Operation Type Non-Motorized, Rotor Material Stainless Steel, Seal Material Carbon, Ceramic, Solid Diameter (Maximum) 4.8 mm, Stator Material Buna-N

'Progressive Cavity Pump, Min. RPM 150, Max. RPM 1750, Required HP @ Lower RPM 1/32, Required HP @ Higher RPM 1/2, Max. Viscosity 20,000 cPs, Particle Size 4.8mm, Min. Pressure (PSI) 0, Max. Pressure (PSI) 50, Flow Rate @ Min. RPM and 0 PSI 0.835 gpm, Flow Rate @ Max. RPM and 0 PSI 9.4 gpm, Min. Fluid Temp. 10 Degrees F, Max. Fluid Temp. 180 Degrees F, Inlet/Outlet (In.) 3/4 NPT, 3/4 NPT, Seal Type Mechanical, Carbon, Ceramic, Nitrile Seal Material, Cast Iron Housing Material, Length (In.) 12-5/8'

<p><b>Specifications: </b><ul><li>Item:-Progressive Cavity Pump</li><li>Min. RPM:-150</li><li>Max. RPM:-1750</li><li>Required HP @ Lower RPM:-1/32</li><li>Required HP @ Higher RPM:-1/2</li><li>Voltage:-Non-Motorized</li><li>Max. Viscosity:-20,000 cPs</li><li>Particle Size:-4.8mm</li><li>Min. Pressure (PSI):-0</li><li>Max. Pressure (PSI):-50</li><li>Flow Rate @ Min. RPM and 0 PSI:-0.835 gpm</li><li>Flow Rate @ Max. RPM and 0 PSI:-9.4 gpm</li><li>Min. Fluid Temp.:-10 Degrees F</li><li>Max. Fluid Temp.:-180 Degrees F</li><li>Inlet/Outlet (In.):-3/4 NPT, 3/4 NPT</li><li>Seal Type:-Mechanical</li><li>Seal Material:-Carbon, Ceramic, Nitrile</li><li>Housing Material:-Cast Iron</li><li>Length (In.):-12-5/8</li><li>Width (In.):-4-3/4</li><li>Height (In.):-5-1/8</li><li>Series:-300</li><li>Application:-Drum Transfer, Industrial Waste, Sewage Sampling, Irrigation, Lubricants, Dirty Oil, Bridge Deck Flooding, Abrasive Slurries, Coatings, Feed Additives, Swimming Pool Water</li><li>UNSPSC:-40151553</li></ul></p>
