Mpi

Mpi . MT-110-REN

Gallery

Attributes

Brand name, Manufacturer name, Extra Product NameMpi
ManufacturerMpi Magnetic Products Inc.
Attribute00, countryOfOriginUnited States
AttributeKey00Country of Origin (subject to change)
DimensionUnitinch
GraingerSku, MPN, Keyword, ModelNumber, Model_number, PartNumber, Part_numberMT-110-REN
UPCNone
WeightUnitlbs
extendedLead8
extendedQty-2
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, PackageQuantity1
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG601292245
tierPrice1532.32
urlhttps://www.zoro.com/mpi-1-x-10-316-ss-rare-earth-tube-mt-110-ren/i/G601292245/
AsinB07J2QXL3V
Batteries_included, Batteries_requiredFalse
BrandMPI
Bullet_pointEFFICIENT & ECONOMICAL: Typical uses include removing metallic grit from hydraulic reservoirs to minimize wear on machine seals and bushings, and removing unwanted ferrous contaminants in food and chemical processing systems. Optional exclusive coatings available for nonstick and abrasive applications. HIGH QUALITY CONSTRUCTION: Features high temperature ceramic or rare earth magnet material, abrasion resistance coatings, 316 or 304 non-standard alloy stainless steel tubing, liquid tight, seam-welded ends, custom tapped mounting holes and tube lengths, and quick-clean, heavy-duty designs. OPTIMAL FILTRATION & PROTECTION: MPI magnetic tubes are designed to remove small to medium sized ferrous tramp metal contaminants from a variety of product streams. As contaminants are captured, they move to the underside of the tubes, eliminating tramp metal wash-off. RELIABILITY YOU CAN TRUST: Ensure the highest quality, most durable materials for your magnetic separation needs by choosing MPI products. Founded in 1981, we continue to be an industry leader in inventive magnetic equipment solutions. Made in the USA. Industry leading lead time for delivery as short as 24 hours for custom sizes and configurations. SPECIFICATIONS: 1” diametermeter, 52 MGOe, effective up to 176° F, 10,000 Gauss value, 5 lbs of pull with a 1/4” test ball. All tube ends are fully welded for the highest durability and sanitary design, no crimped ends. Heavy wall thickness tube for high durability, higher performance thin tubes available and summarized in table below. Multiple designs to fit every budget and performance requirement.
ClassificationId256374011
DisplayNameLift Magnets
Generic_keywordprotective connections industries calculated technology connectors resistant universal connecter certified converter cylinder security tactical stacking findings silver barrel source strand latest series holder pieces plated strike large level gauge
Height2165 225 286 31.3 423 43 44 571 6.6535433003 63 7
ItemClassificationBASE_PRODUCT
ItemName, Item_nameMPI Rare Earth Magnetic Tube – For Removing Ferrous Tramp Metal – 1” Diameter. x 10” Long - 52 MGOe – 176 F Max. Temp – 304 Stainless Steel
Item_package_weight1.504
Item_type_keywordlift-magnets
Length12.3228346331 16.9
Linkhttps://m.media-amazon.com/images/I/21FXVt2+CKL._SL75_.jpg https://m.media-amazon.com/images/I/21FXVt2+CKL.jpg https://m.media-amazon.com/images/I/415iWfXWRoL._SL75_.jpg https://m.media-amazon.com/images/I/415iWfXWRoL.jpg https://m.media-amazon.com/images/I/41Y9e+ryvnL._SL75_.jpg https://m.media-amazon.com/images/I/41Y9e+ryvnL.jpg https://m.media-amazon.com/images/I/51jaHmKGqWL.jpg https://m.media-amazon.com/images/I/61xKaxSIISL.jpg https://m.media-amazon.com/images/I/712ijano+9L.jpg https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/256374011
MaterialStainless Steel
NameSIZE_NAME
ProductTypeMATERIAL_HANDLING
Product_description<p>MODEL: <br /> > Magnet Type: Magnetic Tube (MT Series)<br /> > Tube diametermeter: 1" diametermeter<br /> > Tube Length: 10" overall length<br /> OPTIONS: <br /> > Material Construction: 304 Stainless Steel<br /> > Magnetic Tubes : REN Rare Earth<br /> > Performance on surface of tube: 10,000 Gauss, 5 lbs. of pull with a ¼” test ball, 13 lbs. of pull with a ½” test ball<br /> > Magnetic Material Temperature: 176 F @ 52+ MGOe (rare earth)<br /> > Tube Coatings: Stainless steel with no coating<br /> > Washdown / Liquid Tight Design: Non-washdown for dry applications<br /> > Tube End Design (end 1): ¼-20 tapped<br /> > Tube End Design (end 2): ¼-20 tapped<br /> > Dead Space Length: No dead space, full magnetic tube</p>
Product_site_launch_date2018-04-16T07:00:00.000Z
Rank1373839 865
Size10" Magnet Tube
Supplier_declared_dg_hz_regulationnot_applicable
TitleIndustrial & Scientific Lift Magnets
Unitcentimeters inches kilograms pounds
VariantMAIN PT01 PT02 PT03
WebsiteDisplayGroupbiss_display_on_website home_improvement_display_on_website
WebsiteDisplayGroupNameHome Improvement
Weight3.31575242048
Width1000 12.204724397 2560 31.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG601292245111 @ $532.32

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

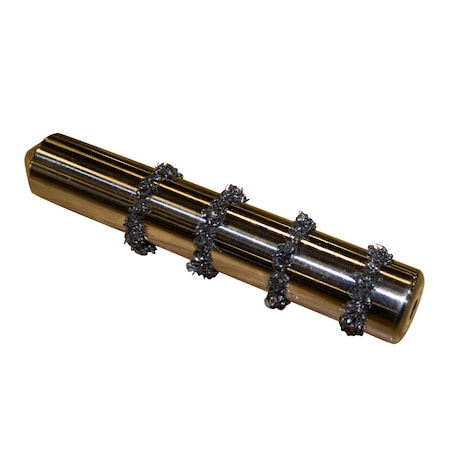

MPI Rare Earth Magnetic Tube – For Removing Ferrous Tramp Metal – 1” Diameter. x 10” Long - 52 MGOe – 176 F Max. Temp – 304 Stainless Steel
Brand: MPI
<p>MODEL: <br /> > Magnet Type: Magnetic Tube (MT Series)<br /> > Tube diametermeter: 1" diametermeter<br /> > Tube Length: 10" overall length<br /> OPTIONS: <br /> > Material Construction: 304 Stainless Steel<br /> > Magnetic Tubes : REN Rare Earth<br /> > Performance on surface of tube: 10,000 Gauss, 5 lbs. of pull with a ¼” test ball, 13 lbs. of pull with a ½” test ball<br /> > Magnetic Material Temperature: 176 F @ 52+ MGOe (rare earth)<br /> > Tube Coatings: Stainless steel with no coating<br /> > Washdown / Liquid Tight Design: Non-washdown for dry applications<br /> > Tube End Design (end 1): ¼-20 tapped<br /> > Tube End Design (end 2): ¼-20 tapped<br /> > Dead Space Length: No dead space, full magnetic tube</p>
Details
  • OPTIMAL FILTRATION & PROTECTION: MPI magnetic tubes are designed to remove small to medium sized ferrous tramp metal contaminants from a variety of product streams. As contaminants are captured, they move to the underside of the tubes, eliminating tramp metal wash-off.
  • EFFICIENT & ECONOMICAL: Typical uses include removing metallic grit from hydraulic reservoirs to minimize wear on machine seals and bushings, and removing unwanted ferrous contaminants in food and chemical processing systems. Optional exclusive coatings available for nonstick and abrasive applications.
  • HIGH QUALITY CONSTRUCTION: Features high temperature ceramic or rare earth magnet material, abrasion resistance coatings, 316 or 304 non-standard alloy stainless steel tubing, liquid tight, seam-welded ends, custom tapped mounting holes and tube lengths, and quick-clean, heavy-duty designs.
  • SPECIFICATIONS: 1” diametermeter, 52 MGOe, effective up to 176° F, 10,000 Gauss value, 5 lbs of pull with a 1/4” test ball. All tube ends are fully welded for the highest durability and sanitary design, no crimped ends. Heavy wall thickness tube for high durability, higher performance thin tubes available and summarized in table below. Multiple designs to fit every budget and performance requirement.
  • RELIABILITY YOU CAN TRUST: Ensure the highest quality, most durable materials for your magnetic separation needs by choosing MPI products. Founded in 1981, we continue to be an industry leader in inventive magnetic equipment solutions. Made in the USA. Industry leading lead time for delivery as short as 24 hours for custom sizes and configurations.
View on Amazon (paid link)
