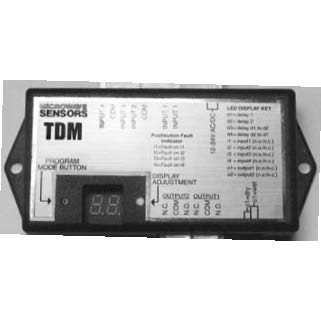

MS Sedco TDM-HC Time Delay Module, Provides up to 4 Inputs, Can be Converted to Sequential Relay Outputs, Each Output Adjustable 0-99 Seconds, High Current

Using the TDM-HC to provide a simple time delay of 0-99 seconds. Using the TDM-HC as a make/break relay to eliminate mechanical binding of the electrical locking mechanism on an automatic door. The make relay can even be configured as a wet output to directly apply power to the electric locking device. Using the TDM-HC to sequence vestibule doors. One unit is capable of sequencing the vestibule doors from bothdirections. The four inputs on the TDM-HC allow sequencing or independent operation of the two outputs. - Input 1 will sequence Output 1 then 2. - Input 2 will sequence Output 2 then 1. - Input 3 will operate Output 1 independently. - Input 4 will operate Output 2 independently. Both outputs on the TDM-HC are programmable for on time duration as well as the delay time between the two outputs from 0 to 99 seconds
