Multifan

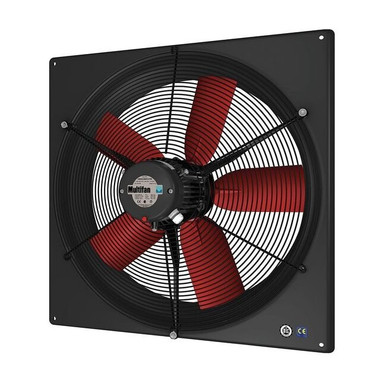

This Multifan Panel Fan exhibits exceptional performance in high moisture, corrosive and wet environments. The fan has an IP55 enclosure to be resistant to dust, dirt and water, so it is perfectly suited for marine or wet environments and wash down locations. The motor is totally enclosed in aluminum, and the internal components have been protected to Class-F, which means the fan offers excellent heat dissipation, allowing operation in hotter than normal environments. The lightweight polypropylene impeller reduces wear on the motor components to extend fan life cycle. Air Delivery CFM 13,400, Speed RPM 1,600, Volts 265/460, Dimensions L x H in. 34 x 34, HP 2 1/4, Fan Diameter in. 28, Speeds qty. 1, Needs to be Hardwired Yes, Dimensions L x W x H in. 34 x 9 3/4 x 34, Depth in. 9 3/4, Amps 7.8/4.5. Severe duty, harsh environment fan Frequency drive compatible Fiberglass fan frame Polypropylene impeller Aluminum motor housing UL-recognized CSA certified TEAO motor Class-F insulated, suitable for ambient temperature to 140F Rated IP55 and UL507 for outdoor or wash down duty Thermal protection available by special order Sealed ball bearings with C-4 clearance L-10 life Model Number: V4D71K1M71100. Size: 28 Inch. Age Group: Adult.
