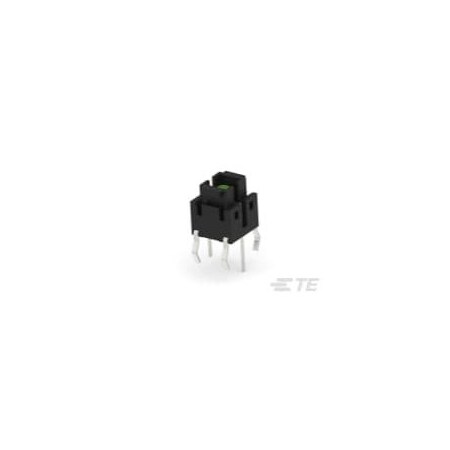

Amp Te Connectivity Tactile Sw 6X6 Ill Tact Tht 100Gf Hi Yellow Grn - 1-2213818-1
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 75AC4502 | 75 | 4816 | 75 | 50 @ $1.68, 100 @ $1.51, 500 @ $1.32 |
 Zoro | G101009060 | 75 | 75 | 1 @ $1.67 | |
| Waldom | TE CONNECTIVITY AMP BRAND 1-2213818-1 | 60 | 4816 | 1 | 60 @ $0.93, 300 @ $0.91, 600 @ $0.89, 1050 @ $0.86 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Switch Tactile Off (ON) SPST Rectangular Button PC Pins 0.05A 12VDC 500000Cycles 0.98N Thru-Hole
Brand: TE Connectivity
EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active Pole Throw Configuration: SPST Actuator Style: Rectangular Button Switching Function: Momentary Switch Configuration: OFF (ON) Maximum Current Rating (A): 0.05@12VDC Dielectric Strength: 250VAC Minimum Insulation Resistance (MOhm): 100 Maximum Contact Resistance (mOhm): 100 Mechanical Life (Cycles): 500000 Operating Force (N): 0.98 Actuator Color: Brown Actuator Length (mm): 2.2 Number of Rows: 2 Mounting: Through Hole Termination Style: PC Pins Number of Terminals: 4 Terminal Length (mm): 3.5 Terminal Pitch (mm): 4.5 Body Orientation: Straight Minimum Operating Temperature (°C): -25 Maximum Operating Temperature (°C): 70 Body Length (mm): 6.1 Body Depth (mm): 6.1 Body Height (mm): 4.8 Product Length (mm): 6.1 Product Depth (mm): 7.8 Product Height (mm): 7 Contact Material: Stainless Steel Contact Plating: Silver
Analytics
| Case Qty | 75 units |
|---|---|
| Atom Count | 6 |
