MuxLab . 500100

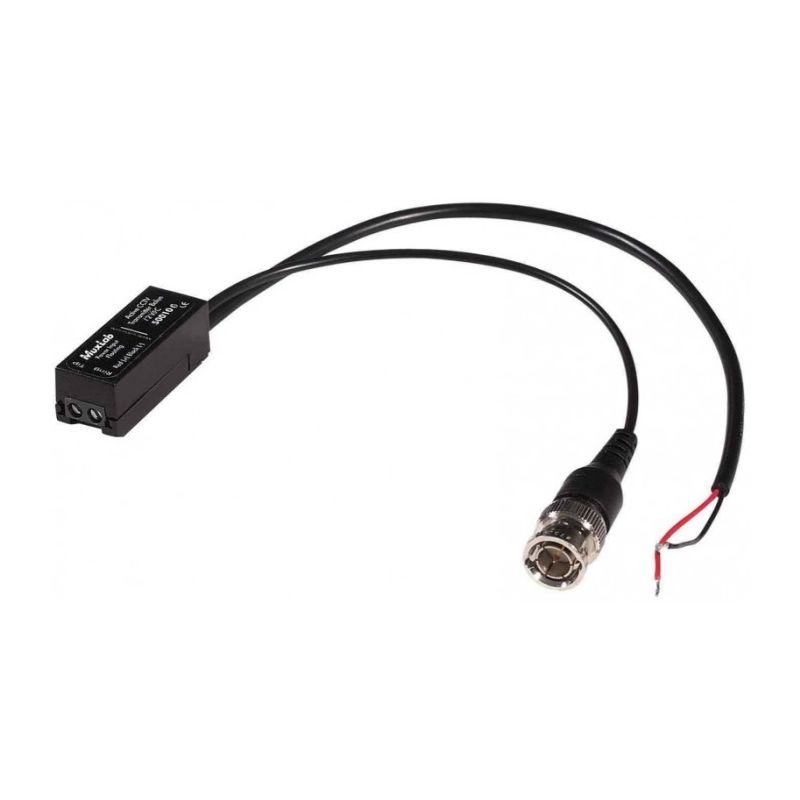

Muxlab 500100 Active CCTV Transmitter BalunThe Active CCTV Transmitter Balun (500100, 500101) provides enhanced distance performance for a single CCTV video channel via Cat5 unshielded twisted pair (UTP) cable. The balun is installed at the CCTV camera and is powered by the camera power supply. There are two (2) models; 500100 for 12VDC cameras and 500101 for 24VAC cameras. Maximum distance supported ranges from 0 to 3,000 ft via Cat5 UTP when connected to passive CCTV baluns at the receiver. Active CCTV Transmitter Balun features ground loop isolation and manual gain compensation adjustment based on cable length. Applications; Video enhancement for color, sharpness and brightness. Ground loop sensitive installations. Marginal cabling installations.FEATURES AND BENEFITS Low power consumption; Derives power from camera power supply; Ground loop isolation; Gain compensation switch for 500 to 3,000 ft; Fits inside CCTV dome cameras and back boxes.; Works with other MuxLab CCTV baluns; Cable strain relief;

Part Number: 627699001004 <br> Part: Muxlab 500100 Active CCTV transmitter balun <br> CCTV Active Transmitter Balun, 12V DC, Up to 6000'. <br> Mfr: Muxlab <br> UPC: 627699001004 <br> Type: Balun, CCTV, Active Transmitter <br> Also known as: 627699001004, MUX500100, Muxlab, 500100, Baluns, Accessories, Video & Surveillance Equipment, Data, Video, Audio <br> Equivalent to: <ul></ul>
