MuxLab . 500112

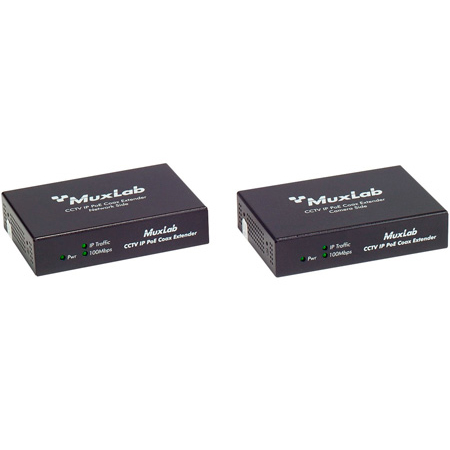

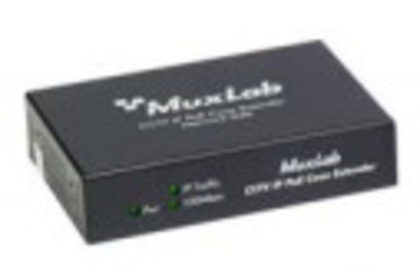

Muxlab 500112 LongReach CCTV IP PoE Extender Kit, 15W

Specifications: Environment PoE CCTV IP Devices PoE CCTV IP cameras with a 10/100Mb/s Ethernet port, using up to 15.4 Watts. Transmission Transparent to the user Standard supported Ethernet side: IEEE 802.3 10BaseT, IEEE 802.3U 100Base-TX, IEEE 802.3af compatible PoE PoE Power PoE Class 3 Connectors One (1) BNC 75 Ohms. One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair. LED Indicators Power, IP Traffic, 100Mbps Maximum Distance RG59/RG6: Up to 980 ft (300m) @ 100Mbps UTP Cat 5e/6: Up to 330 ft (100 m) @ 100 Mbps Note: When installed in an electrically noisy environment, an STP cable must be used. Also, crossconnection reduces the effective distance depending on the grade of twisted cable used. RJ45 Pin Configuration Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straightthrough wiring. Cable UTP/STP: One (1) Cat 5e/6 or better twisted pair cables required RG59/RG6: 75 Ohms (avoid CCS and aluminum foil cable due to DC loss) PoE Power Supply (500113) Optional Power Supply (110-240V/48VDC/.625A, 2.1mm plug) with interchangeable blades (sold separately) Required at the Camera Side Device when coax cable quality or length results in insufficient power reaching the camera. Required at the Network Side Device when used with non-PoE LAN switch. Power Consumption Network Side: 1.82 Watt Camera Side: 1.73 Watt Temperature Operating: 0° to 40°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing Enclosure Metal Accessories Wall-mount brackets included Dimensions 4.37" x 2.95" x 0.99" (111 x 75 x 25 mm) Shipping Weight 500112: 1.5 lb (0.68 kg) Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0 Warranty 2 years Order Information 500112 LongReach CCTV IP PoE Extender Kit 500113 Power Supply for 500112 (48VDC)
