MuxLab . 500124

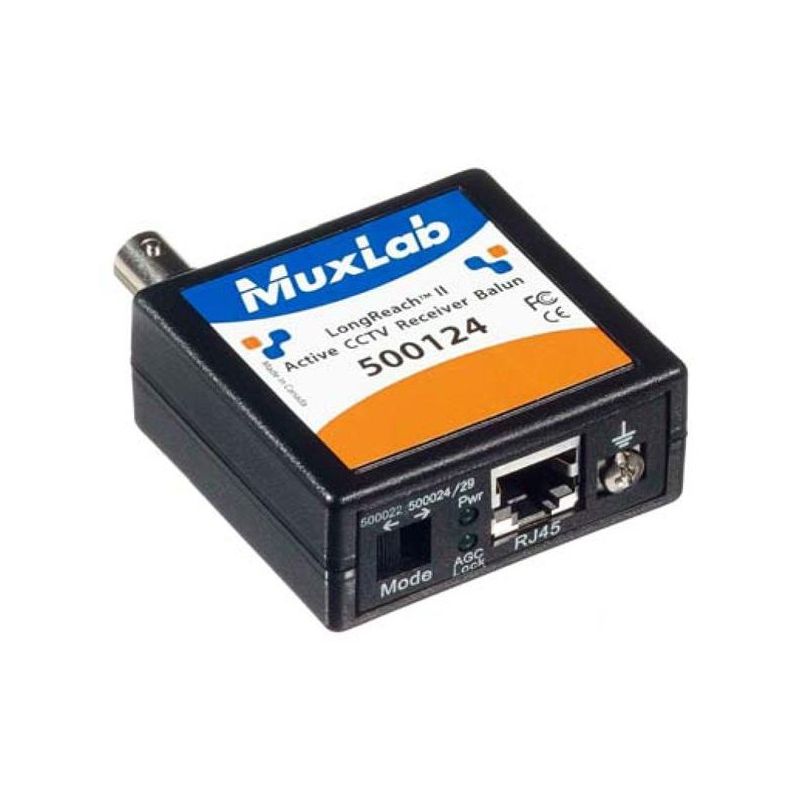

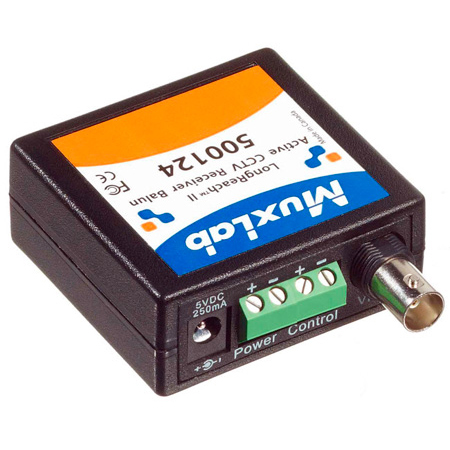

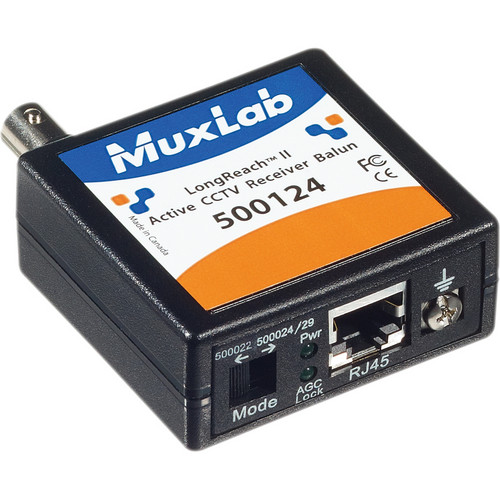

The LongReach II Active CCTV Receiver Balun (500124) provides extended distance between the CCTV camera and the DVR via Cat5e/6 cable. The product features Auto Gain Control (AGC), Auto-Polarity Correction and supports up to 5,000 ft (1.5 km) via Cat5e/6 cable when used in conjunction with MuxLab. Applications Campus, highways, airports, hotels, casinos, commercial complexes, remote parking lots, selfstorage, hospitals, car dealerships. Specifications: Compatible Baluns 500000, 500000R, 500009, 500022, 500024, 500029, 500100/101 Environment CCTV composite baseband video; NTSC, PAL, SECAM Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equip. Transmission Transparent to the user Bandwidth 20 Hz to 8 MHz. Input 1.5 Vp-p max, 100U, balanced (RJ45) Output 1.1 Vp-p, ± 1 dB, 75U, unbalanced (BNC) Insertion Loss -14 dB minimum for luma, -60 dB minimum for chroma. Determined by Automatic Gain Control. Return Loss Greater than 15 dB over the frequency range Common Mode Rejection Greater than 40 dB @ 3.85 MHz Ground Loop Isolation Up to +/-50VDC Auto Polarity Correction Automatically adjusts for any polarity Max. Distance via Cat5e/6 NTSC: 5,000 ft (1.5 km) with passive CCTV balun at camera NTSC: 7,000 ft (2.1 km) with 500100/101 at camera *Coax jumper cables must be less than 30 ft (9m) LED Diagnostics Power, Video Sync Auto Gain Control (AGC) Automatically adjusts for gain, sharpness and luminosity. Stabilization time: under 1 second Wiring Remote low voltage power supported via two (2) or three (3) twisted pairs. A Class II power supply is recommended. Max. Distance @ 24VAC via three twisted pairs*. *Longer distances may be achieved @ 28 VAC. 2 VA: 1,500 ft (457m)* 4 VA: 745 ft (227m)* 10 VA: 300 ft (91m)* 20 VA: 150 ft (46m)* *Based on 10% voltage drop at camera. Please consult your CCTV vendor for more info. Max. Current 2.5A rms or DC.
