MuxLab . 500390

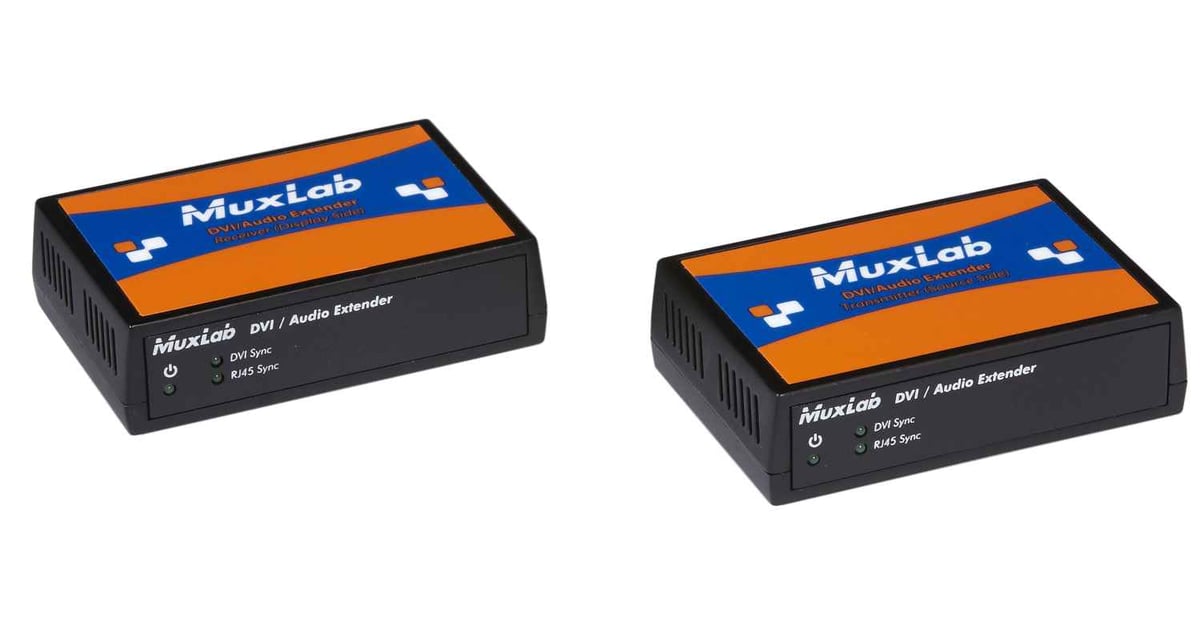

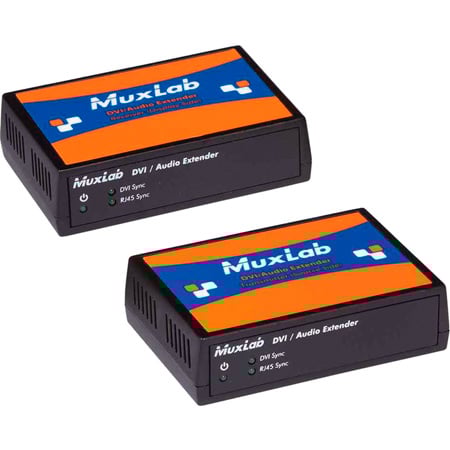

The DVI/Audio Extender Kit allows one DVI channel and one line level stereo audio audio channel to be transmitted to 230 ft (70 m) at all resolutions up to 1080p via one (1) Cat 5e/6 cable in a point-to-point configuration.

The DVI/Audio Extender Kit allows one DVI channel and one line level stereo audio audio channel to be transmitted to 230 ft (70 m) at all resolutions up to 1080p via one (1) Cat 5e/6 cable in a point-to-point configuration. Specifications: Environment DVI 1.0 (Single Channel), HDBaseT technology Devices DVD, plasma, projectors, monitors, TV, PC, laptops Transmission Transparent to the user Bandwidth 340 MHz Signals DVI 1.0 protocol Audio Does not embed or de-embed audio over DVI. Transmits audio in common mode over UTP and completely isolated from the DVI signal. Connectors: One (1) DVI-D receptacle, One (1) RJ45S for Cat5e/6 link, One (1) 3.5mm jack for line level stereo audio, Note: DVI and audio cables not included. Max. Distance via Cat5e/6 (Based on a maximum length of 6.6 ft (2m) of DVI cable per end): All resolutions up to 1920x1200: 230 ft (70 m)< 4K: (3840 X 2160/24,25,30 Hz): 115 ft (35m) When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. Cable One (1) Cat5e/6 or better twisted pair cable required. Power Supply Two (2) 110-240V/5VDC power supply with interchangeable blades included Power Consumption Transmitter: 1.6 Watt Receiver: 3.2 Watt Temperature Operating: 0§ to 40§ C. Storage:-20§ to 85§ C. Humidity: up to 95% non-condensing. Enclosure Aluminum Dimensions 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm) Weight 2.6 lb (1.2 kg) Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0 Warranty 2 years Order Information 500390 DVI/Audio Extender Kit
