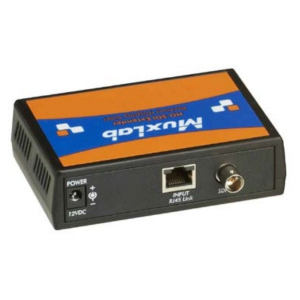

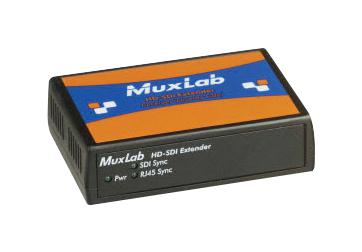

MuxLab . 500700

The HD-SDI Extender Kit allows HD-SDI to be transmitted up to 330 ft (100m) via Cat5e/6 cable in a point-to-point configuration. The HD-SDI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.<br /><br /><table class="product" cellpadding="3" cellspacing="3" border="0" width="100%"><tr><td width="180" class="heading_text" align="right" valign="top"><div class="spec_att_name">Connectivity Technology: </div></td><td valign="top"><span class="spec_att_value">Wired</span></td></tr><!-- Display Shipping Category Header once all the attributes of Physical Characteristics Header are displayed --><tr><td width="180" class="heading_text" align="right" valign="top"><div class="spec_att_name">Number of Input Devices Supported: </div></td><td valign="top"><span class="spec_att_value">1</span></td></tr><!-- Display Shipping Category Header once all the attributes of Physical Characteristics Header are displayed --><tr><td width="180" class="heading_text" align="right" valign="top"><div class="spec_att_name">Number of Output Devices Supported: </div></td><td valign="top"><span class="spec_att_value">1</span></td></tr><!-- Display Shipping Category Header once all the attributes of Physical Characteristics Header are displayed --><tr><td width="180" class="heading_text" align="right" valign="top"><div class="spec_att_name">Maximum Operating Distance: </div></td><td valign="top"><span class="spec_att_value">330 ft</span></td></tr><!-- Display Shipping Category Header once all the attributes of Physical Characteristics Header are displayed --></table>

Specifications: Environment: SDI single link : SD, HD & 3G Devices: Camcorders, video processors, monitors, projectors, scan converters, CCTV cams/DVR and any equipment supporting HD-SDI single link Standards: SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M Speed: 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection) Format Tested SD: 525i, 59.94 Hz & 625i, 50 Hz HD: 1035i, 60 Hz & 1080i, 50 Hz & 1080p, 30 Hz & 1080i, 60 Hz & 1080p, 25 Hz & 1080i, 50 Hz & 1080p, 24 Hz & 720p, 60 Hz 3G: 1080p, 4:2:2, 10b, 60Hz & 1080p, 4:2:2, 10b, 50Hz 720p, 4:4:4:4, 10b, 60Hz & 720p, 4:4:4:4, 10b, 50Hz 1080p, 4:4:4:4, 10b, 30Hz & 720p, 4:4:4:4, 10b, 30Hz 1080p, 4:4:4:4, 10b, 25Hz & 720p, 4:4:4:4, 10b, 25Hz 1080p, 4:4:4:4, 10b, 24Hz & 720p, 4:4:4:4, 10b, 24Hz 1080i, 4:4:4:4, 10b, 30Hz & 1080i, 4:4:4:4, 10b, 25Hz 1080p, 4:4:4, 12b, 30Hz & 1080p, 4:4:4, 12b, 25Hz 1080p, 4:4:4, 12b, 24Hz & 1080i, 4:4:4, 12b, 30Hz 1080i, 4:4:4, 12b, 25Hz & 1080p, 4:2:2, 12b, 30Hz 1080p, 4:2:2, 12b, 25Hz & 1080i, 4:2:2, 12b, 30Hz 1080i, 4:2:2, 12b, 25Hz Indicators: Power on (on both end) Signal detect (on rx side). Synchronisation detect (on both end) Link between the two unit working (on both end). Connectors: One BNC 75 ohm female One RJ45S for Cat 5e/6 unshielded or shielded twisted pair One power connector, 2mm Maximum Distance: Cat5e UTP/STP: 330 ft (100 m) Cat6 UTP/STP: 400 ft (122 m) Power Supply: Two 100-240V/12VDC 1.25A power supplies with interchangeable blades for NA, Eur & UK Power Consumption: Transmitter: 4 Watts Receiver: 8 Watts Operating Temperature: 0 to 104§F (0 to 40§C) Humidity: Up to 95% non-condensing Enclosure: Aluminum Dimensions: 4.5 x 3.0 x 1.25" Weight: 2.5lb (1.1kg)
