MuxLab . 500715

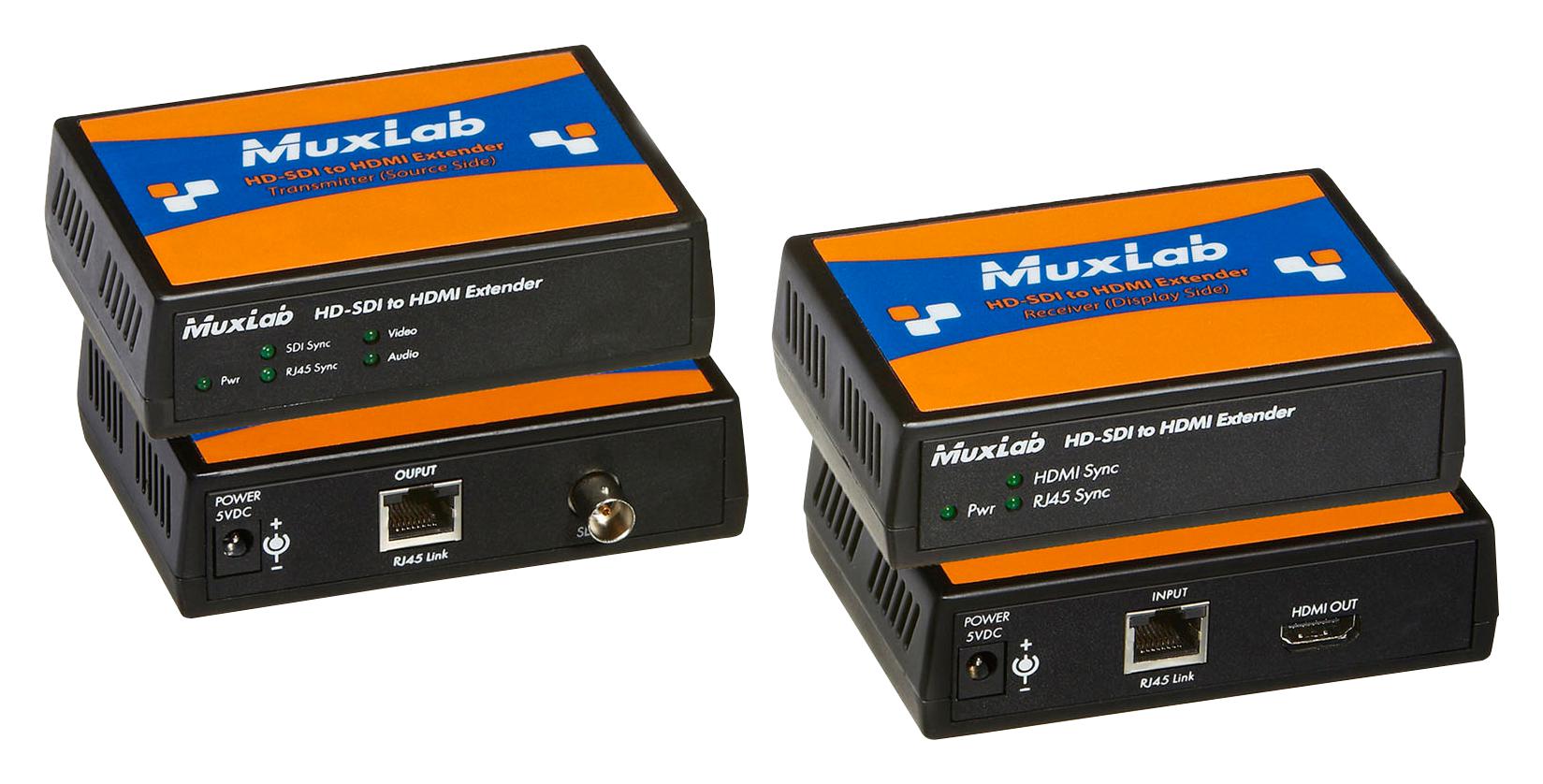

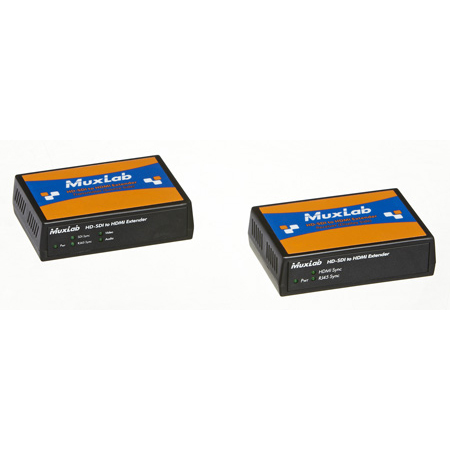

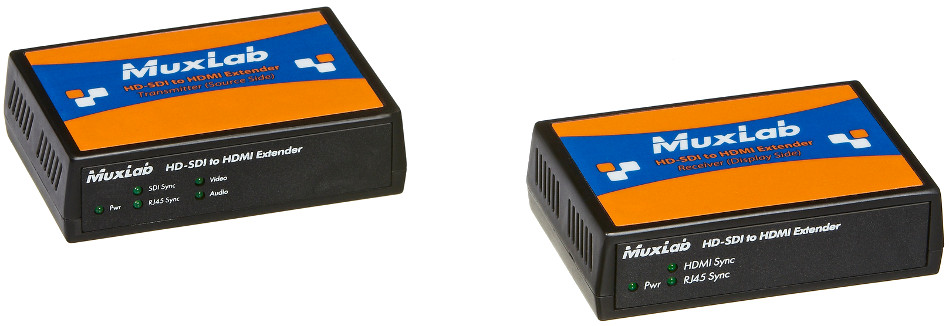

The HD-SDI to HDMI Extender Kit (500715) converts HD-SDI to HDMI and then transmits it up to 330 ft (100m) via Cat5e/6 cable at all resolutions in a point-to-point configuration. The HD-SDI to HDMI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment. Package Contents: HD-SDI to HDMI Extender Kit 2 x 100-240V/5-12VDC 15W Power Supplies with Interchangeable Blades Product Type: Video Extender Transmitter/Receiver Product Type: Video Extender Transmitter/Receiver Manufacturer Part Number: 500715 Limited Warranty: 2 Year Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: MuxLab, Inc Product Name: HD-SDI to HDMI Extender Kit Brand Name: MuxLab Brand Name: MuxLab Maximum Operating Distance: 450 ft Number of Network (RJ-45) Ports: 2 Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Graphics Modes: Full HD Maximum Video Resolution: 1920 x 1080 Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 450 ft Number of Network (RJ-45) Ports: 2 Network (RJ-45): Yes Number of HDMI Outputs: 1 HDMI Out: Yes Media Type Supported: Twisted Pair Number of Output Devices Supported: 1 Number of Input Devices Supported: 1 Transmitter Height: 1.25 Transmitter Width: 4.50 Transmitter Depth: 3 Transmitter Weight (Approximate): 2.50 lb

The MuxLab 500715 - 3G-SDI to HDMI Extender Kit converts 3G-SDI to HDMI and then transmits it up to 330 ft / 100m via single Cat5e/6 cable at all resolutions in a point-to-point configuration. The 3G-SDI to HDMI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment. Specifications: Environment SDI single link: SD, HD & 3G. Devices Monitors supporting the original SDI rate only. Standard supported SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M. Bit rates 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection). Video format supported (monitor must support the original SDI rate): SD: 525i, 59.94/60Hz & 625i, 50Hz HD: 720p @ 60Hz, 50Hz, 30Hz, 25Hz & 24Hz 1080i @ 60Hz & 50Hz 1080p @ 30Hz, 25Hz & 24Hz 3G: 1080p @ 60Hz & 50Hz Sound format supported: 48kHz @ 24 bit, 20 bit & 16 bit. Indicators: Power, SDI Sync (on rx side only), RJ45 Sync, Video (on tx side only), Sound (on tx side only), HDMI Sync (on rx side only). Connectors On each unit: 1 BNC 75 ohm female on source side, 1 HDMI on receiver on receiver side, 1 RJ45S for Cat5e/6 unshielded twisted pair, 1 power connector, 2mm.

HDSDI to HDMI Converter CAT5 Extender Kit The MuxLab 500715 3GSDI to HDMI Extender Kit converts 3GSDI to HDMI and then transmits it up to 330 ft 100m via single Cat5e6 cable at all resolutions in a pointtopoint configuration The 3GSDI to HDMI Extender Kit supports transmission of up to 29730 Gbps uncompressed unencrypted digital video optionally including embedded Audio andor Time Code within television facilities and between professional video equipment Features. Up to 330ft 100m via Cat5e cable. Up to 400ft 122m via Cat6 cableSpecifications. LED Diagnostics Sync SDI detect. Environment SDI single link SD HD 3G. Weight 4 lbs
