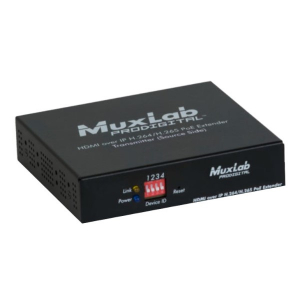

MuxLab . 500762-TX

The HDMI over IP H.264/H.265 PoE Extender Transmitter and Receiver combination allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, and supports Video Wall and Multiview capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe. The transmitter accepts a 1080p @ 60Hz video and streams the content to the Receiver, where the signal is up-scaled up to 4K @ 60Hz to be displayed on a 4K monitor. The Receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz. These devices support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. Applications: Audio/Video Streaming over the Internet Commercial and residential AV systems Classroom projector systems Digital signage Boardroom systems Collaborative PC systems Medical information systems Product Type: Video Extender Transmitter Product Type: Video Extender Transmitter Manufacturer Part Number: 500762-TX Limited Warranty: 3 Year Connectivity Technology: Wired Connectivity Technology: Wired Manufacturer: MuxLab, Inc Product Model: 500762-TX Product Name: HDMI over IP H.264/H.265 PoE Transmitter Brand Name: MuxLab Brand Name: MuxLab Maximum Operating Distance: 330 ft Number of Network (RJ-45) Ports: 1 Number of HDMI Inputs: 1 Media Type Supported: Twisted Pair Number of Input Devices Supported: 1 Power over Ethernet (PoE): Yes Graphics Modes: 4K UHD Environmentally Friendly: Yes Twisted Pair Cable Standard: Category 6 Maximum Operating Distance: 330 ft Number of Network (RJ-45) Ports: 1
