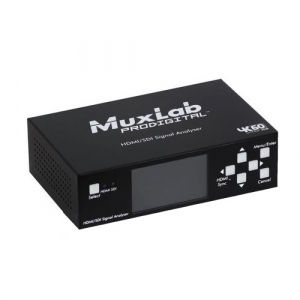

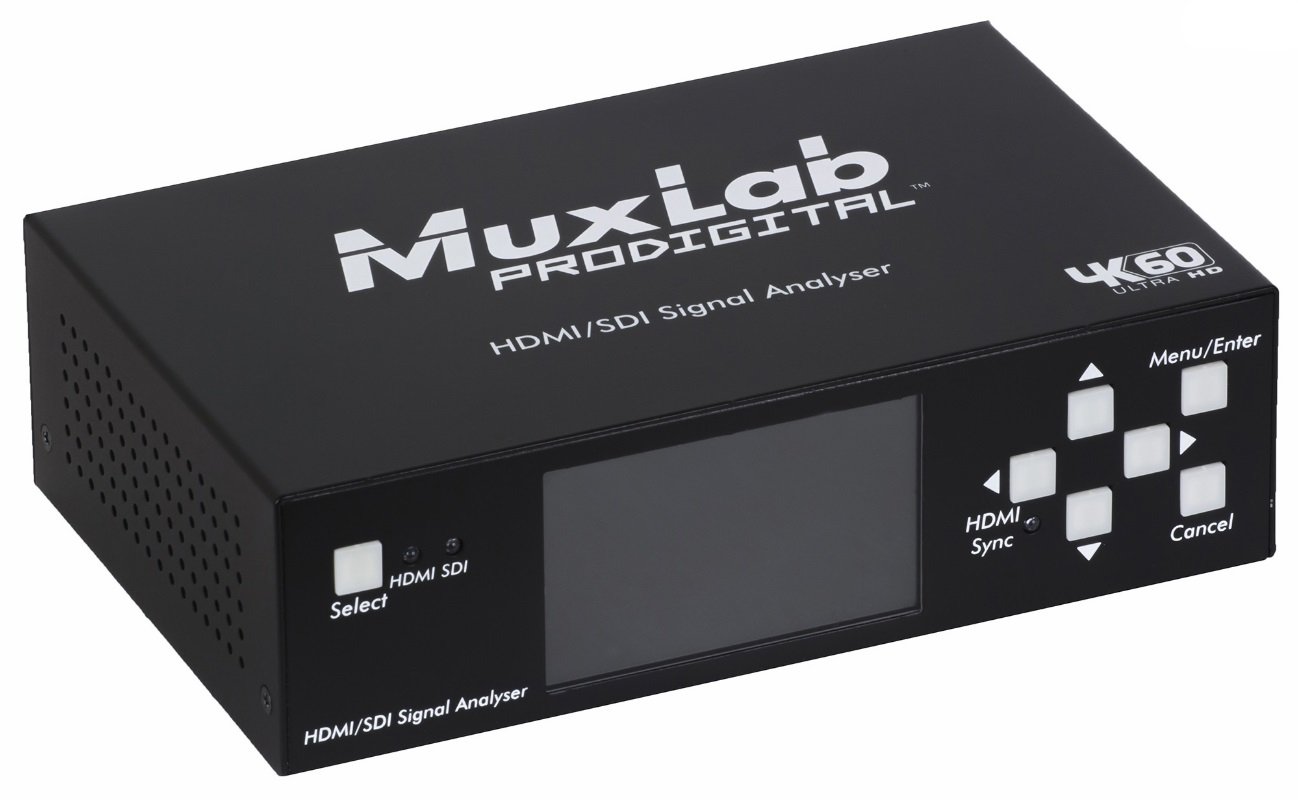

This Signal Analyzer is a portable test tool that is able to analyze SD/HD/3G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their source devices. When used with the 500830 Signal Generator, a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. The device is an exceptional tool at an attractive price for any AV engineer/developer, integrator and installer. The Signal Analyzer is a portable device which can be used anytime you need it and anywhere, making it an invaluable tool. The unit supports an internal rechargeable Lithium-ion battery, allowing the device to be operated autonomously for up to 5 hours per charge. Battery Chemistry: Lithium Ion (Li-Ion) Battery Chemistry: Lithium Ion (Li-Ion) Product Type: HDMI/SDI Signal Analyzer Product Type: HDMI/SDI Signal Analyzer Manufacturer Part Number: 500831 Weight (Approximate): 1.14 lb Manufacturer: MuxLab, Inc Product Name: HDMI 2.0/3G-SDI Signal Analyzer Brand Name: MuxLab Brand Name: MuxLab Height: 1.7 Width: 6.4 Depth: 3.7 USB: Yes HDMI: Yes Device Function: Video Signal Testing Device Function: Audio Signal Testing Device Function: Device Testing Device Function: HDMI Cable Testing Device Function: Test Pattern Battery Built-in: Yes Battery Rechargeable: Yes Display Screen Type: LCD USB: Yes HDMI: Yes Number of HDMI Ports: 1 Number of USB Ports: 1 Serial Port: Yes Device Function: Video Signal Testing Device Function: Audio Signal Testing Device Function: Device Testing Device Function: HDMI Cable Testing Device Function: Test Pattern

This Signal Analyzer is a portable test tool that is able to analyze SD/HD/3G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their source devices. When used with the 500830 Signal Generator, a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. The device is an exceptional tool at an attractive price for any AV engineer/developer, Integrator and installer. The Signal Analyzer is a portable device which can be used anytime you need it and anywhere, making it an invaluable tool. The unit supports an internal rechargeable Lithium-ion battery, allowing the device to be operated autonomously for up to 5 hours per charge. Applications Testing AV source devices Testing AV transmission infrastructure
