MUW . CC-650
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AmazonSC | B01IU7NEG6 | 1 | 1 | 1 @ $84.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

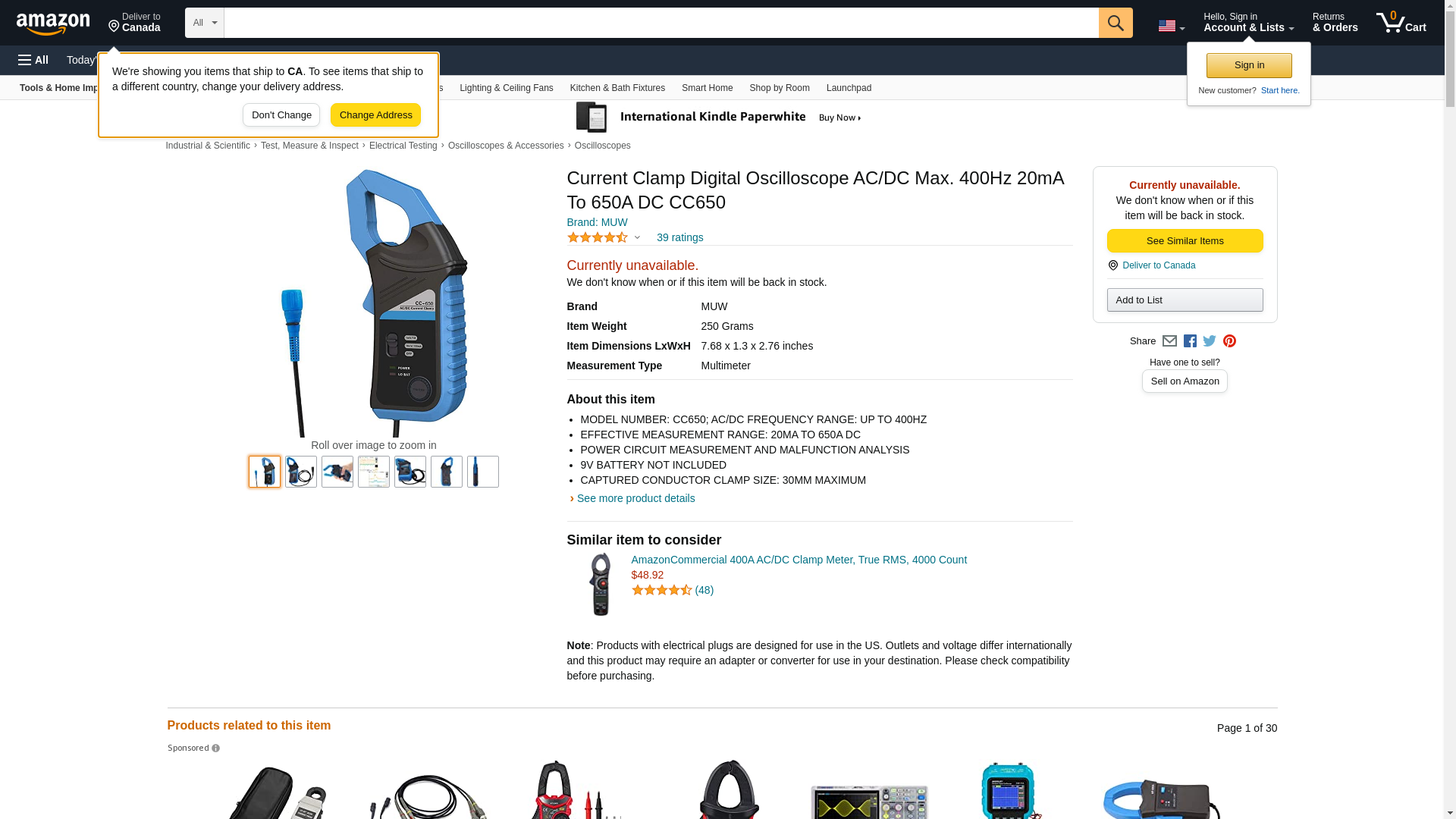

Current Clamp Digital Oscilloscope AC/DC Max. 400Hz 20mA To 650A DC CC650
Brand: MUW
AC/DC frequency range: Up to 400Hz<br> Effective Measurement Range: 20mA to 650A DC <br> It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.<br> Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, youˇre able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data. <br> Power circuit measurement and malfunction analysis; <br> Motor drive of frequency converter (or other electronics) measurement; <br> Power electronics equipments measurement. <br> Captured Conductor Size:30mm maximum<br> Low Battery Indictor:red LED lighting<br> Operating Temperature:0℃to 50℃70% R.H.<br> Storage Temperature:-20℃ to +70℃, 80% R.H.<br> Battery Type:9V DC, NEDA 1604, 6F22,0006P<br> Battery Life:100 hours typical with alkaline<br> Weight:250 gm typical<br> Dimensions:195mm(H) x 70mm(W) x 33mm(D)<br> Output:Supplied with coil cable with straight banana plug or BNC plug.<br>
Details
- MODEL NUMBER: CC650; AC/DC FREQUENCY RANGE: UP TO 400HZ
- EFFECTIVE MEASUREMENT RANGE: 20MA TO 650A DC
- POWER CIRCUIT MEASUREMENT AND MALFUNCTION ANALYSIS
- 9V BATTERY NOT INCLUDED
- CAPTURED CONDUCTOR CLAMP SIZE: 30MM MAXIMUM
Analytics
| Offers | 4 |
|---|---|
| Case Qty | 1 units |
| Atom Count | 1 |
Oscilloscope Clamp Probe Power circuit measurement AC/DC Current Clamp Up To 400Hz 20mA To 650A DC
Brand: MUW
AC/DC frequency range: Up to 400Hz<br> Effective Measurement Range: 20mA to 650A DC <br> It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.<br> Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, youˇre able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data. <br> Power circuit measurement and malfunction analysis; <br> Motor drive of frequency converter (or other electronics) measurement; <br> Power electronics equipments measurement. <br> Captured Conductor Size: 30mm maximum<br> Low Battery Indictor:red LED lighting<br> Operating Temperature:0℃to 50℃70% R.H.<br> Storage Temperature:-20℃ to +70℃, 80% R.H.<br> Battery Type:9V DC, NEDA 1604, 6F22,0006P<br> Battery Life:100 hours typical with alkaline<br> Weight:250 gm typical<br> Dimensions:195mm(H) x 70mm(W) x 33mm(D)<br> Output:Supplied with coil cable with straight banana plug or BNC plug.<br>
Details
- AC/DC FREQUENCY RANGE: UP TO 400HZ BANDWIDTH
- EFFECTIVE MEASUREMENT RANGE: 20MA TO 650A DC
- POWER CIRCUIT MEASUREMENT AND MALFUNCTION ANALYSIS
- BATTERY NOT INCLUDED BATTERY TYPE:9V DC, NEDA 1604, 6F22,0006P
- CAPTURED CONDUCTOR SIZE: 30MM MAXIMUM
Analytics
| Category | tools |
|---|---|
| Case Qty | 1 units |
| Atom Count | 1 |
