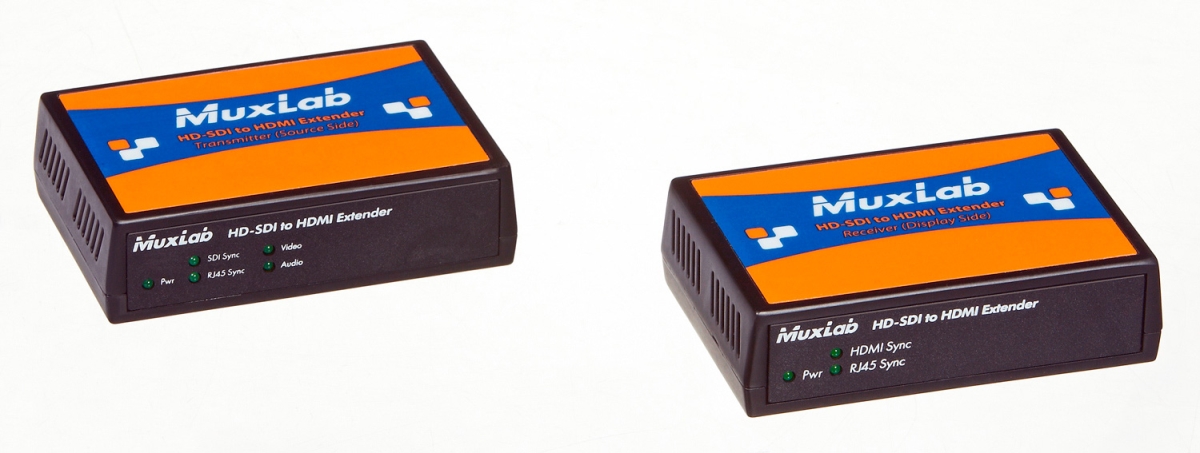

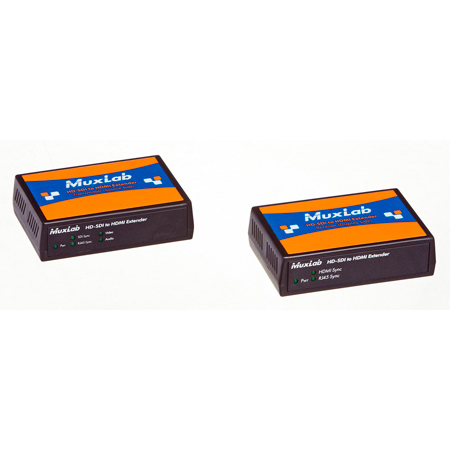

The Muxlab LongReach 3G-SDI to HDMI Extender Kit (model 500716) converts 3G-SDI to HDMI and then transmits it up to 500ft / 150m via single Cat5e/6 cable at all resolutions in a point-to-point configuration. Specifications: Environment SDI single link: SD, HD & 3G. Devices Monitors supporting the original SDI rate only. Standard supported SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M. Bit rates 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection). Video format supported (monitor must support the original SDI rate): SD: 525i, 59.94/60Hz & 625i, 50Hz HD: 720p @ 60Hz, 50Hz, 30Hz, 25Hz & 24Hz 1080i @ 60Hz & 50Hz 1080p @ 30Hz, 25Hz & 24Hz 3G: 1080p @ 60Hz & 50Hz Sound format supported: 48kHz @ 24 bit, 20 bit & 16 bit. Indicators: Power, SDI Sync (on rx side only), RJ45 Sync, Video (on tx side only), Sound (on tx side only), HDMI Sync (on rx side only). Connectors On each unit: 1 BNC 75 ohm female on source side, 1 HDMI on receiver on receiver side, 1 RJ45S for Cat5e/6 unshielded twisted pair, 1 power connector, 2mm. Maximum Distance UTP Cat 5e: 330 ft (100 m) UTP Cat 6: 400 ft (122 m) for 500715, UTP Cat 5e: 500 ft (150 m) UTP Cat 6: 500 ft (150 m) for 500716, Maximum distance applies for all format and speed between boxes, OnSDI side: 450 ft (140m), On HDMI side: 15 ft (5 m) typical. Cables (Not included): One straight Cat 5e/6 twisted pair cables required, one 75 ohm coaxial cables with 75 ohm BNC required, one HDMI cable. Power Supply (Included): Two 100-240V/5VDC 6W power supplies with interchangeable blades for NA, Europe and UK.

LongReach HDSDI to HDMI Extender Kit The Muxlab LongReach 3GSDI to HDMI Extender Kit model 500716 converts 3GSDI to HDMI and then transmits it up to 500ft 150m via single Cat5e6 cable at all resolutions in a pointtopoint configurationFeatures. Up to 500 ft via Cat5e6 cable. Supports SDISMPTE 259MC 270Mbps HDSDISMPTE 292M 1485 14851001 Gbps HDSDISMPTE 424M425M 29730 Gbps. LED diagnostics sync SDI detectSpecifications. Environment SDI single link SD HD 3G. Devices Monitors supporting the original SDI rate only. Standard supported SMPTE 259M 270Mbs SMPTE 292M SMPTE 424M. Bit rates 270Mbs 1485Gbs 297 Gbs automatic selection. Video format supported monitor must support. the original SDI rate. SD 525i 599460Hz 625i 50Hz. HD 720p 60Hz 50Hz 30Hz 25Hz 24Hz. 1080i 60Hz 50Hz. 1080p 30Hz 25Hz 24Hz. 3G 1080p 60Hz 50Hz. Sound format supported 48kHz 24 bit 20 bit 16 bit. Indicators Power SDI Sync on rx side only RJ45 Sync Video on tx side only Sound on tx side only HDMI Sync on rx side only. Connectors On each unit 1 BNC 75 ohm female on source side 1 HDMI on receiver on receiver side 1 RJ45S for Cat5e6 unshielded twisted pair 1 power connector 2mm. Maximum Distance UTP Cat 5e 330 ft 100 m UTP Cat 6 400 ft 122 m for 500715 UTP Cat 5e 500 ft 150 m UTP Cat 6 500 ft 150 m for 500716 Maximum distance applies for all format and speed between boxes OnSDI side 450 ft 140m On HDMI side 15 ft 5 m typical. Cables Not included One straight Cat 5e6 twisted pair cables required one 75 ohm coaxial cables with 75 ohm BNC required one HDMI cable. Power Supply Included Two 100240V5VDC 6W power supplies with interchangeable blades for NA Europe and UK. Power Consumption Transmitter 4 Watts Receiver 6 Watts. Temperature Operating 0 to 40C Storage 20 to 85C Humidity Up to 95 noncondensing. Enclosure 6061 Aluminum alloy. Dimensions 450 x 300 x 125 114 x 76 x 32 cm. Weight 25 lb 11 kg. Warranty 2 yearsWarranty. 2 Year Warranty on all Active Products lifetime Warranty on all Passive Pro
