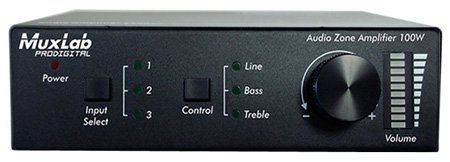

The MuxLab Audio Zone Amplifier 100W is a Class D amplifier which allows analog or digital sources to feed a pair of 50W per channel speakers. When set in Bridge mode and paired with the MuxLab 70V Transformer unit (500755-70V), the system is compatible with distributed 70V speaker systems over longer distances and supporting daisy chain configurations. The device may be controlled locally via pushbuttons and a knob, and remotely via RS232, IR and an IP webserver interface.</p><p>The Audio Zone Amplifier features two analog 2CH audio inputs (RCA & 3.5mm) & one (1) PCM digital optical input (TosLink), along with two 50W 8&Omega; speaker outputs or one 100W 4&Omega; speaker output (terminal block).</p>

The MuxLab Audio Zone Amplifier 100W is a Class D amplifier which allows analog or digital sources to feed a pair of 50W per channel speakers. When set in Bridge mode and paired with the MuxLab 70V Transformer unit (500755-70V), the system is compatible with distributed 70V speaker systems over longer distances and supporting daisy chain configurations. The device may be controlled locally via pushbuttons and a knob, and remotely via RS232, IR and an IP webserver interface. The Audio Zone Amplifier features two analog 2CH audio inputs (RCA & 3.5mm) & one (1) PCM digital optical input (TosLink), along with two 50W 8Ω speaker outputs or one 100W 4Ω speaker output (terminal block). Specifications: Environment: Analog Audio Devices: Audio System, Line Output, Microphone, Speaker Compatibility: Compatible with MuxLab Analog Audio products Transmission: Transparent to the user Frequency Response: 20Hz to 20KHz CMMR: >75dB @ 20Hz-20KHz SNR: 80dB at maximum output Input Impedance: >10KΩ Damping Coefficient: >100 Stereo Channel Separation: >75dB @ 20HZ to 20KHz THD + Noise: 1% @ 1KHz, 50W Voltage Gain: 32dB Power Output: 1x100 Watts (@ 4Ω) or 2x50 Watts (@ 8Ω) Connectors: 2 - RCA Input Jacks for L+R audio input. 2 - 3.5mm Jacks; one input & one cascade output. 1 - 4-pin terminal block (5.08mm) for the speakers. 1 - Optical TosLink for the Digital Audio. 1 - IR Sensor 3.5mm stereo Jack. 1 - RJ45 Shielded for the Ethernet LAN connection. 1 - 3-pin terminal block (3.81 mm) for RS232. 1 - 4-pin DIN Jack for Power. Power Supply: 110-240VAC to 33VDC power supply Temperature - Operating: 0° to 50°C, Storage: -20° to 85°C, Humidity: Up to 95% non-condensing Enclosure: Metal Dimensions: 5.83" x 1.73" x 6.50" (148 x 44 x 165 mm) Weight: 1.59 lbs (0.72 kg) Compliance: Regulatory: FCC, CE, RoHS

The MuxLab Audio Zone Amplifier 100W is a Class D amplifier which allows analog or digital sources to feed a pair of 50W per channel speakers When set in Bridge mode and paired with the MuxLab 70V Transformer unit 50075570V the system is compatible with distributed 70V speaker systems over longer distances and supporting daisy chain configurations The device may be controlled locally via pushbuttons and a knob and remotely via RS232 IR and an IP webserver interface The Audio Zone Amplifier features two analog 2CH audio inputs RCA 35mm one 1 PCM digital optical input TosLink along with two 50W 8 speaker outputs or one 100W 4 speaker output terminal block Features. Two analog 2ch audio inputs and one digital optical input. Supports 2x50 watts into 8 and 1x100 watts bridge mode into 4 . Cascadable allowing for chaining amplifiers. Compatible with muxlab hifi audio baluns and audio matrix switch 500210. Compatible with muxlab 70v transformer 50075570v to allow for longer distance connections and chaining of 70v speaker systemsIncludes. 2 35mm Jacks one input one cascade output. 1 4pin terminal block 508mm for the speakers. 1 Optical TosLink for the Digital Audio. 1 IR Sensor 35mm stereo Jack. 1 RJ45 Shielded for the Ethernet LAN connection. 1 3pin terminal block 381 mm for RS232. 1 4pin DIN Jack for PowerSpecifications. Capacity 100W. Environment Analog Audio. Devices Audio System Line Output Microphone Speaker. Compatibility Compatible with MuxLab Analog Audio products. Transmission Transparent to the user. Frequency Response 20Hz to 20KHz. CMMR 75dB 20Hz20KHz. SNR 80dB at maximum output. Input Impedance 10K . Damping Coefficient 100. Stereo Channel Separation 75dB 20HZ to 20KHz. THD Noise 1 Percent 1KHz 50W. Voltage Gain 32dB. Power Output 1x100 Watts 4 or 2x50 Watts 8 . Power Supply 110240VAC to 33VDC power supply. Temperature Operating 0 to 50C Storage 20 to 85C Humidity Up to 95 Percent noncondensing. Enclosure Metal. Compliance Regulatory FCC CE RoHS.
