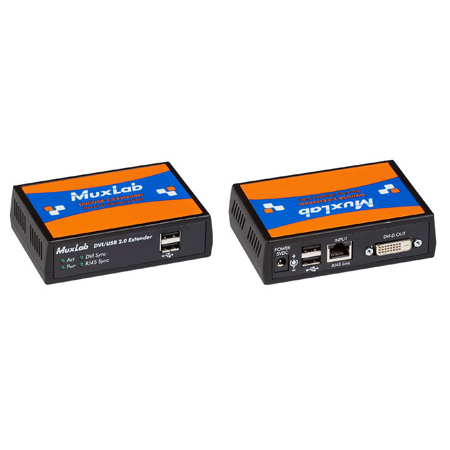

The DVI / USB2.0 HDBaseT Extender Kit (500391) allows one DVI channel and one USB2.0 channel to be transmitted over distances of up to 330ft (100m) at all resolutions up to 1920x1200 via single Cat5e/6 cable, 4K (3840x2160) to 230ft / 70m. The Receiver features a 1x4 USB2.0 hub for transferring of USB2.0 data transmissions.</p><p><strong>Applications</strong><br />KMV / AV systems, Classroom projector systems, Digital signage, Boardroom systems, Collaborative PC systems, Medical information systems</p>

The DVI / USB2.0 HDBaseT Extender Kit (500391) allows one DVI channel and one USB2.0 channel to be transmitted over distances of up to 330ft (100m) at all resolutions up to 1920x1200 via single Cat5e/6 cable, 4K (3840x2160) to 230ft / 70m. The Receiver features a 1x4 USB2.0 hub for transferring of USB2.0 data transmissions. Applications KMV / AV systems, Classroom projector systems, Digital signage, Boardroom systems, Collaborative PC systems, Medical information systems Specifications: Environment: DVI 1.0 (Single Channel) & USB 2.0 Devices: Projectors, monitors, PC, laptops, mouse, keyboard, webcam Transmission: Transparent to the user Bandwidth: 340 MHz Signals: DVI 1.0 protocol, USB2.0 USB: One input (type B) on TX side and 4 output (type A) on RX. Bandwidth available: Up to 250 Mbps. Connectors: One (1) DVI-D receptacle One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair On TX: 1 standard USB connector type B On RX: 4 standard USB connector type A Note: Cables not included Maximum Distances Based on a maximum length of 6.6ft / 2m of DVI cable per end. Cat 5e/6: 330ft / 100m up to 1920x1200 230ft / 70m for 4K (3840x2160 @ 24 / 25 / 30Hz) Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. Cable: One (1) Cat 5e/6 or better twisted pair cables required Power Supply: Two (2) 110-240V/5VDC power supplies with interchangeable blades Power Consumption: Transmitter: 3 Watts. Receiver: 7 Watts Temperature: Operating: 0° to 40°C Humidity: Up to 95% non-condensing Enclosure: Aluminum Dimensions: 4.50" x 3.00" x 1.25" (114 x 76 x 32 mm) Weight: 2.6 lb / 1.2 kg Compliance: Regulatory: FCC, CE, RoHS
