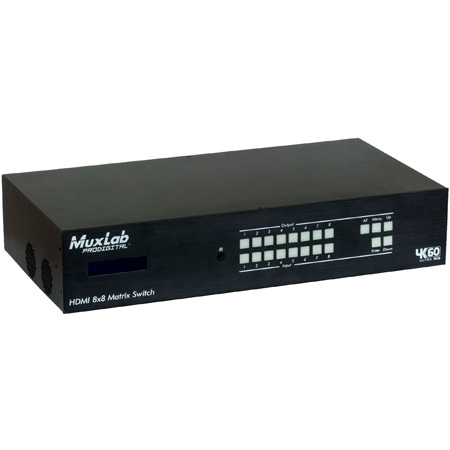

The Muxlab <b>500413</b> HDMI 8x8 Matrix Switch, HDBT, 4K/60 allows up to eight (8) different HDMI sources to be connected and/or distributed to up to eight (8) + two (2) HDMI displays. The unit supports eight (8) HDBT outputs, plus the first two (2) outputs also include two (2) HDMI outputs for local connectivity. The HDMI 8x8 Matrix Switch, HDBT, 4K/60 is compatible with the MuxLab 500454-RX HDBT Receivers. and supports distances up to 70m at 1080p and 40m at 4K via Cat5e/6 cable. Management functions include front panel push button, IR, RS232 and IP. Software updates are supported via a USB port.</p><p><b>Note:</b> HDMI cables not included.</p><p><b><ins>Applications</b></ins>:<br />Commercial and residential AV systems<br />Classroom training systems<br />Digital signage<br />Boardroom systems<br />Collaborative PC systems<br />Medical information systems</p>

HDMI 8 x 8 Matrix Switch KitHDBT 4K60 The Muxlab 500413 HDMI 8x8 Matrix Switch, HDBT, 4K/60 allows up to eight 8 different HDMI sources to be connected and/or distributed to up to eight 8 two 2 HDMI displays. The unit supports eight 8 HDBT outputs, plus the first two 2 outputs also include two 2 HDMI outputs for local connectivity. The HDMI 8x8 Matrix Switch, HDBT, 4K/60 is Compatible with the MuxLab 500454RX HDBT Receivers. and supports distances up to 70m at 1080p and 40m at 4K via Cat5e/6 cable. Management functions include front panel push button, IR, RS232 and IP. Software updates are supported via a USB port.Features. 8x8 Matrix supporting 8 HDMI inputs, 8 HDBT outputs and two of the outputs also support 2 HDMI outputs.. Supports HDMI 2.0 4K/60 420 HDCP 2.2. Compatible with 500454PoERX HDBT PoE Receiver. HDBT outputs support distances up to 70m at 1080p and 40m at 4K. Supports PoH to power HDBT Receivers. Supports 8 audio out channels of 2CH, 5.1 Dolby, and DTS. Supports an IR matrix to manage end devices. Powerful EDID management. Controllable via front panel, RS232, IR and TCP/IP. Builtin GUI web interfaceSpecifications. Environment HDMI 2.0. Devices Ultra HD BluRay, media players/streamers, projectors, monitors, TV, PC, laptops.. Transmission Transparent to the user.. Video Bandwidth 10.2Gbps HDBT, 594Gbps HDMI. Maximum Pixel Clock 297MHz HDBT, 594MHz HDMI. Signals and video resolution HDMI 2.0 4K/60 444 for HDMI outputs 4K/60 420 for HDBT outputs and HDCP 1.4 2.2Connectors. Ten 10 HDMI connectors, including eight 8 inputs and two 2 outputs. Nine 9 RJ45 shielded connectors, including eight 8 for HDBT Out, and one 1 for Ethernet unit management. Sixteen 16 3.5mm Jacks; for eight 8 IR Sensor eight 8 IR Emitters to manage end devices. Nine 9 3pin phoenix connectors, including eight 8 for RS232 to control end devices, and one 1 RS232 for unit management. Eight 8 RCA connectors for digital Audio Output 2CH LPCM, 5.1 Dolby and DTS. One 1 2pin phoenix connec
