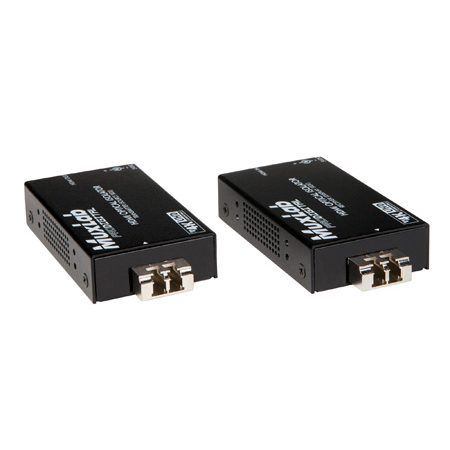

The HDMI Optical Isolator (500462) allows HDMI equipment to be completely isolated and connected up to 984ft (300m), while allowing a unidirectional communication (with no return signaling) via one (1) LC 50/125 OM3 multimode fiber cable in a point-to-point configuration at 1080p resolution.</p><p>The HDMI Optical Isolator establishes a high separation between the source computer and the display devices preventing any potential leakage between the source and the peripheral equipment; removing the vulnerability of shared display equipment to cyber-attacks.</p>

The HDMI Optical Isolator (500462) allows HDMI equipment to be completely isolated and connected up to 984ft (300m), while allowing a unidirectional communication (with no return signaling) via one (1) LC 50/125 OM3 multimode fiber cable in a point-to-point configuration at 1080p resolution. The HDMI Optical Isolator establishes a high separation between the source computer and the display devices preventing any potential leakage between the source and the peripheral equipment; removing the vulnerability of shared display equipment to cyber-attacks. Specifications: Environment: HDMI 1.3a and DVI-D Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI. Transmission:Unidirectional. Transparent to the user Bandwidth: 340 MHz Signals: HDMI 1.3a protocol Copy Protection: Do NOT Support HDCP protected content. Connectors: TX Side: One (1) HDMI receptacle; One (1) LC Fiber connector (output only); One (1) 2.1mm power connector. Connectors: RX Side: One (1) HDMI receptacle; One (1) LC Fiber connector (input only); One (1) 2.1mm power connector. Maximum Distance Based on a maximum length of 6.6 ft (2 m) of HDMI cable per end: 480i/p: 984ft (300m); 720p, 1080i: 984ft (300m); 1080p 8-bit: 984ft (300m); 1080p 12-bit deep-color: 984ft (300m); 4K @ 24,25, 30Hz 984ft (300m) Cable One: (1) Multimode fiber 50/125 æm OM3 cable required Power Supply: Two (2) 110-240V/5VDC power supply with interchangeable blades Power Consumption: Transmitter: 1.35 Watt Receiver: 1.15 Watt Temperature Operating: 0° to 55°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing Enclosure Aluminium: Dimensions 3.27" x 1.97" x 0.75" (83 x 50 x 19 mm) Weight 1.0 lb (0.45 kg) Compliance Regulatory: FCC Class A, CE, RoHS Warranty: 2 years Item Includes: one (1) Transmitter one (1) Receiver two (2) power supply
