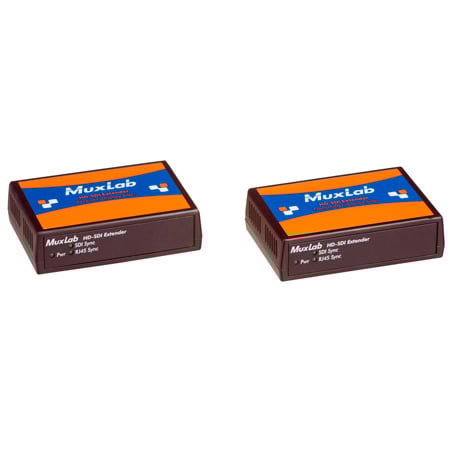

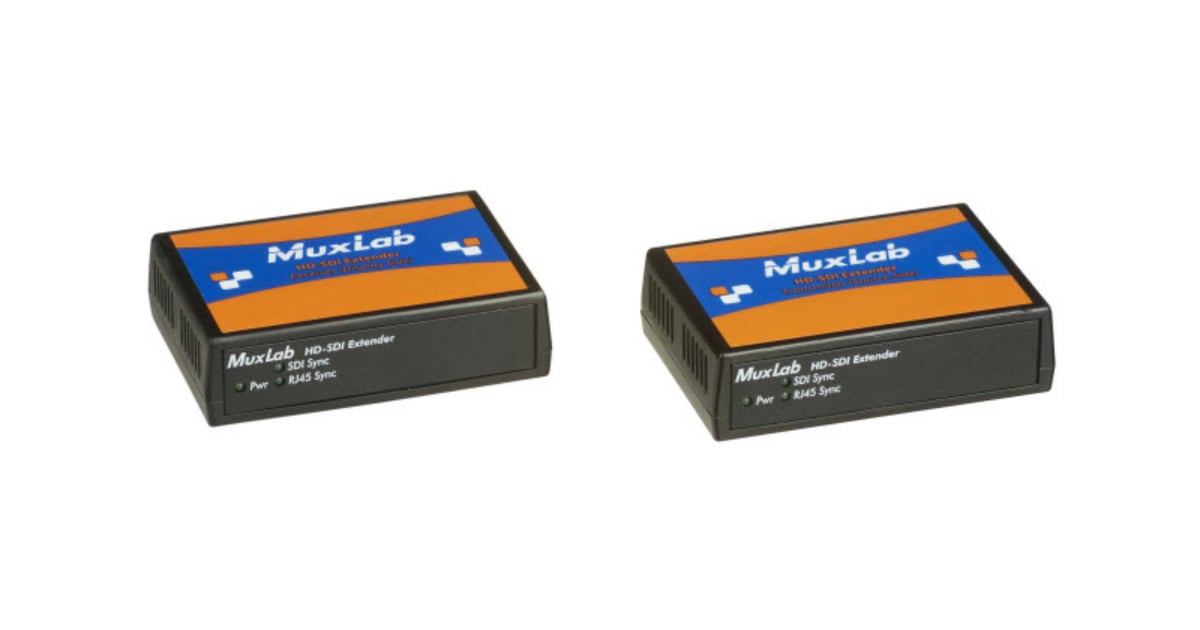

The HD-SDI Extender Kit allows HD-SDI to be transmitted up to 330 ft (100m) via Cat5e/6 cable in a point-to-point configuration. The HD-SDI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.</p>

The HDSDI Extender Kit allows HDSDI to be transmitted up to 330 ft 100m via Cat5e6 cable in a pointtopoint configuration The HDSDI Extender Kit supports transmission of up to 29730 Gbps uncompressed unencrypted digital video optionally including embedded Audio andor Time Code within television facilities and between professional video equipment Features. HDSDI Over CAT5 & CAT6 Extender Kit. Supports SDISMPTE 259MC. Supports HDSDISMPTE 292M. Supports HDSDISMPTE 424M425M. Up to 400 ft via Cat6 cable. Up to 330 ft via Cat5e at all resolutions. LED diagnostics sync signal detect. Cast aluminium enclosure. 2 yr warranty. Environment SDI single link SD HD 3G. Devices Camcorders video processors monitors projectors scan converters CCTV camsDVR and any equipment supporting HDSDI single link. Standards SMPTE 259M SMPTE 292M SMPTE 424M. Speed 270Mbs 1485Gbs 297 Gbs. Format Tested. SD 525i 5994 Hz 625i 50 Hz. HD 1035i 60 Hz 1080i 50 Hz 1080p 30 Hz 1080i 60 Hz 1080p. 25 Hz 1080i 50 Hz 1080p 24 Hz 720p 60 Hz. 3G 1080p 422 10b 60Hz 1080p 422 10b 50Hz. 720p 4444 10b 60Hz 720p 4444 10b 50Hz. 1080p 4444 10b 30Hz 720p 4444 10b 30Hz. 1080p 4444 10b 25Hz 720p 4444 10b 25Hz. 1080p 4444 10b 24Hz 720p 4444 10b 24Hz. 1080i 4444 10b 30Hz 1080i 4444 10b 25Hz. 1080p 444 12b 30Hz 1080p 444 12b 25Hz. 1080p 444 12b 24Hz 1080i 444 12b 30Hz. 1080i 444 12b 25Hz 1080p 422 12b 30Hz. 1080p 422 12b 25Hz 1080i 422 12b 30Hz. 1080i 422 12b 25Hz. Connectors One BNC 75 ohm female. One RJ45S for Cat 5e6 unshielded or shielded twisted pair. One power connector 2mm. Maximum Distance Cat5e UTPSTP 330 ft. Cat6 UTPSTP 400 ft. Power Supply Two 100240V12VDC 125A power supplies with interchangeable blades for NA Eur UK. Power Consumption Transmitter 4 Watts. Receiver 8 Watts. Operating Temperature 0 to 104 F. Humidity Up to 95 noncondensing. Enclosure Aluminum. Dimensions 45 x 30 x 125Warranty. 2 Year Warranty on all Active Products lifetime Warranty on all Passive ProductsSpecifications. We
