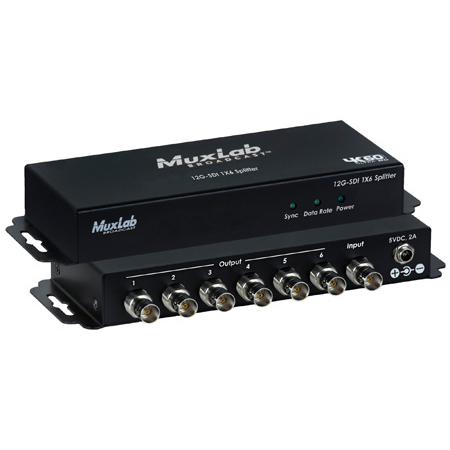

The 12G-SDI 1x6 Splitter, 4K/60 (500718) allows one 12G/6G/3G/HD/SD-SDI source to be distributed and amplified to up to six 12G/6G/3G/HD/SD-SDI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HDSDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI). The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays. Additionally, all connectors are on the rear panel for neater cabling.</p><p><strong>Applications:</strong><br />Video production<br />Post production<br />Broadcasting<br />Studio to Studio<br />Live event<br />Mobile video<br />Medical imaging display</p>

The 12GSDI 1x6 Splitter 4K60 500718 allows one 12G6G3GHDSDSDI source to be distributed and amplified to up to six 12G6G3GHDSDSDI displays The splitter supports up to 4K 3840 X 2160 video and HD audio including 480i SDSDI 720p1080i HDSDI 1080p 3GSDI 4K30 6GSDI and 4K60 12GSDI The device automatically detects the 12G6G3GHDSDSDI signal and reclocks and regenerates the signal at the output for extending distances between source and displays Additionally all connectors are on the rear panel for neater cabling Features. 12GSDI 1x6 Splitter 4K60. Distribute one 12GSDI source to six displays. Supports up to 4K 60Hz including 12G6G3GHDSDSDI. Automatically detects reclocks and regenerates the 12G6G3GHDSDSDI signal. LED diagnostic. Connectors on rear for neater cabling. Environment 12GSDI 6GSDI 3GSDI HDSDI SDSDI. Devices Camera projectors monitors TV. Transmission Transparent to the user. Detection Auto Detection of the 12G6G3GHDSDSDI Signal. Bandwidth 1188Gbps 11881001Gbps. Data Rates 1485 297 596 1188 Gbps. Output Impedance 75. Signals SDI protocol. Supported Resolution. 12GSDI 2160p50599460Hz. 6GSDI 2160p23982425299730Hz. 3GSDI 1080p50599460Hz. HDSDI 1080p23982425299730Hz 720p50599460Hz 1080i50599460Hz. SDSDI NTSC PAL. Audio Up to 8 Audio Channels. Ancillary Data Supported. Input Signal. 12GSDI SMPTE ST2082. 6GSDI SMPTE ST2081. 3GSDI SMPTE 424M 425M. HDSDI SMPTE 292M 296M. SDSDI SMPTE 259M 344M. One BNC Female 75 Ohms Gold Plated for input. Six BNC Female 75 Ohms Gold Plated for outputs. One Locking Barrel Jack 21mm Power Connector. Cable Equalization. 12GSDI up to 150ft. 6GSDI up to 300ft. 3GSDI up to 300ft. HDSDI up to 500ft. SDSDI up to 1000ft. Power Supply One 110240V5VDC power supply with interchangeable blades. Power Consumption 50 Watt. Operating Temp 0 to 40C. Storage 20 to 60C. Humidity Up to 90 noncondensing. Enclosure Metal. Dimensions 71 x 31 x 11. Compliance Regulatory FCC CE RoHS Flammability 94V0Warranty. 2 Years WarrantySpecifications. Weight 2 lbs
