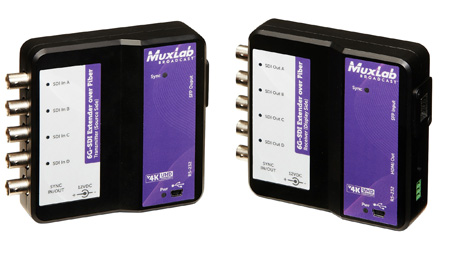

The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 985ft (300m) using OM3 fiber, 1300ft (400m) using OM4 fiber, 33,000ft (10km) using single mode fiber - model 500732-SM10 and 132,000ft (40km) using single mode fiber - model 500732-SM40. This product allows versatile combinations of sources such as one 6G SDI source, two 3G-SDI sources or four HD-SDI sources.</p><p><strong>Applications:</strong><br />Video production, Broadcasting, Outside Broadcasting vehicle, HD camcorder, Studio-to-studio, Post production, Live events, Medical imaging display, Mobile video</p>

The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 985ft (300m) using OM3 fiber, 1300ft (400m) using OM4 fiber, 33,000ft (10km) using single mode fiber - model 500732-SM10 and 132,000ft (40km) using single mode fiber - model 500732-SM40. This product allows versatile combinations of sources such as one 6G SDI source, two 3G-SDI sources or four HD-SDI sources. Applications: Video production, Broadcasting, Outside Broadcasting vehicle, HD camcorder, Studio-to-studio, Post production, Live events, Medical imaging display, Mobile video

The 6GSDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 985ft 300m using OM3 fiber 1300ft 400m using OM4 fiber 33000ft 10km using single mode fiber model 500732SM10 and 132000ft 40km using single mode fiber model 500732SM40 This product allows versatile combinations of sources such as one 6G SDI source two 3GSDI sources or four HDSDI sources Video production Broadcasting Outside Broadcasting vehicle HD camcorder Studiotostudio Post production Live events Medical imaging display Mobile video Features. 6GSDI Extender Over Fiber Kit 132000 ft. Supported modes SMPTE 292M SMPTE 296M SMPTE 372M SMPTE 424M SMPTE 425M. Supports all 6G channel configurations. Automatic SDI Link recognition and configuration. USB interface for field upgradable firmware and diagnostics. Standard SFP module for optical fibre interface or other media. Aluminum ruggedized enclosures. Supports RS232 pass through. Environment 6GSDI 3GSDI HDSDI digital signal transmission. Serial Interface RS232 Serial transmission. Enclosure Aluminum casing approx 43 x 43 x 1. Color Black. Control Serial console emulation with USB interface. Front panel BNC for SYNC input signal. 4x BNC SDI output connectors. Rear panel SFP connector for optical fiber cable interface. Terminal Block for RS232. Top panel Mini USB for firmware updates and status LEDs. Side panel 12 VDC Locking power jack. Front panel BNC for SYNC output signal. 4x BNC SDI input connectors. Connectors 4 BNC connectors for SDI input. Connectors 4 BNC connectors for SDI output. Connectors 1 HDMI output for local monitoring. Connectors 1 BNC connector. Connectors Mini USB for configuration and firmware updates. Connectors SFP Connector for dual optical fiber cable interface. Connectors One standard 21mm locking Power Jack. Compliance FCC CE RoHS. Power 2x 12V DC external power supplies with US UK and Euro blades. Signal Distance OM3
