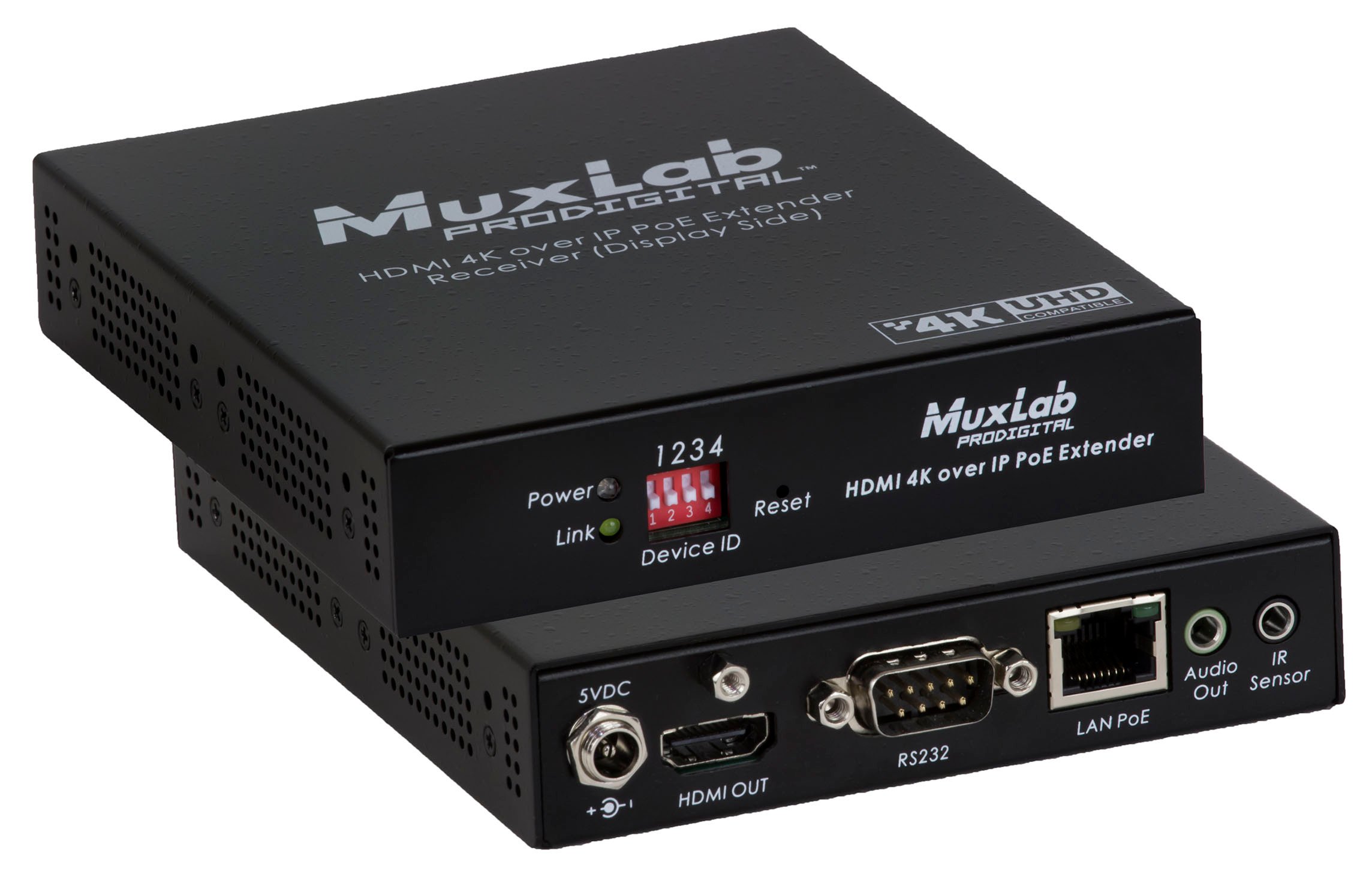

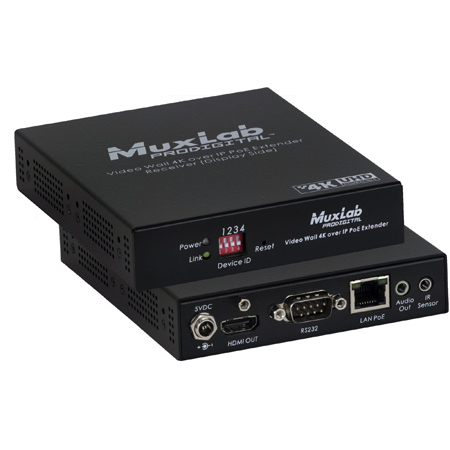

The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size (X by Y) supporting 100?s of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500759-TX) and Receiver (500759-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch.?The Transmitters and Receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.<br />Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (MUX-500992) may be purchased separately.</p>

The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size X by Y supporting 100s of screens depending on network bandwidth utilizing one Receiver for each display in the array Each Transmitter 500759TX and Receiver 500759RX can be connected via Cat5e6 cable up to 330ft 100m from an Ethernet Switch The Transmitters and Receivers support PoE PD and may be powered by a PoE PSE Ethernet Switch The kit comes with one 1 Transmitter and one 1 Receiver The IR Emitter and IR Sensor if required may be purchased separately for IR based remote control applications Features. Configure a Video Wall array with 100s of displays depending on network bandwidth. Supports up to 4K 30Hz and 1080p 60Hz. Visually lossless video. Supports pointtopoint pointtomultipoint and multipointtomultipoint applications. Transmission up to 330ft 100m over Cat5e6. Supports audio insert TX audio extract RX. Supports RS232 and IR transmission for remote control. PoE powered. Control via any web device mobile tablet with use of model 500811 Pro Digital Network ControllerSpecifications. Temperature Operating 0 to 40C. Storage 20 to 85C. Humidity Up to 95 noncondensing. Power Consumption Transmitter 285Watt. Receiver 255Watt. Dimension 440 x 508 x 100
