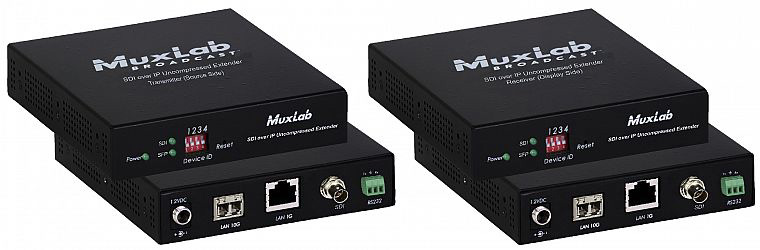

The Muxlab 500767 3G-SDI/ST2110 over IP Uncompressed Gateway Converter allows HD-SDI and 3G-SDI equipment to be extended up to 100ft (30m) via UTP Cat 5e/6 cable or up to 1300ft (400m) via duplex multimode OM4 fiber with LC connectors, at up to 1080p resolution @ 60Hz uncompressed, in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several units to a 10G Ethernet network. The unit provides a 1G Ethernet Switch port to connect additional network devices, and an RS232 port for remote control of end devices.</p><p>The 3G-SDI/ST2110 over IP Uncompressed Gateway Converter supports SMPTE ST-2110. The MuxLab Pro Digital Network Controller (500811) is available to simplify centralized configuration and control, software updates, and allows for management from the MuxLab Control smartphone and tablet App, and third party control Apps.</p>

The Muxlab 500767 3GSDIST2110 over IP Uncompressed Gateway Converter allows HDSDI and 3GSDI equipment to be extended up to 100ft 30m via UTP Cat 5e6 cable or up to 1300ft 400m via duplex multimode OM4 fiber with LC connectors at up to 1080p resolution 60Hz uncompressed in a pointtopoint configuration Pointtomultipoint and multipointtomultipoint configurations are also possible by connecting several units to a 10G Ethernet network The unit provides a 1G Ethernet Switch port to connect additional network devices and an RS232 port for remote control of end devices The 3GSDIST2110 over IP Uncompressed Gateway Converter supports SMPTE ST2110 The MuxLab Pro Digital Network Controller 500811 to simplify centralized configuration and control software updates and allows for management from the MuxLab Control smartphone and tablet App and third party control Apps Features. Transmit Uncompressed SDI video up to 3GSDI 1080p 60Hz over a 10G Ethernet network. Supports the SMPTE ST2110 protocol. Extend up to 100ft 30m over Cat5e6 or 1300ft 400m over OM4 fiber. Supports 100s of Transmitters Receivers depending on network bandwidth. Supports pointtopoint pointtomultipoint and multipointtomultipoint applications. Supports a 1G Switch port for additional network devices. Supports RS232 for remote control of end devices. Managed via Pro Digital Network Controller 500811 MuxLab Control App via smartphones and tablets and 3rd Party control AppsSpecifications. Weight 4 lbs
