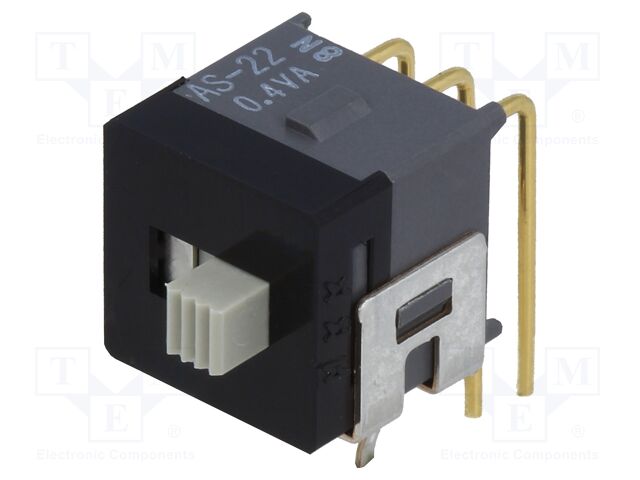

NKK Switches - AS22AH - Switch, Sealed, Slide, DPDT, ON-NONE-ON, .098 Act, R/A PC W/Brkt, 0.4A, 28VAC/DC - RS
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Allied Electronics | 70364681 | 1 | 1 | ||
 Digi-Key | 360-2128-ND | 1 | 225 | 1 | 1 @ $5.61, 10 @ $5.49, 25 @ $5.25, 50 @ $4.64, 100 @ $4.58, 250 @ $4.51, 500 @ $3.72, 1000 @ $3.48 |
 Newark | 09X6743 | 1 | 1 | 1 @ $9.83, 5 @ $9.17, 10 @ $8.43, 25 @ $7.70, 50 @ $6.96, 100 @ $6.15, 250 @ $5.52 | |
| iodParts | AS22AH | 1 | 1 | ||
| Future Electronics | 2021137 | 100 | 100 | 100 @ $4.73, 200 @ $4.06 | |
| 176-62 | 1 | 18 | 1 | 1 @ $5.38, 50 @ $4.58, 100 @ $4.04, 500 @ $3.50, 1000 @ $3.23 | |
| Digi-Key | 1014824 | 1 | 1 | 1 @ $5.61, 10 @ $5.12, 25 @ $4.66, 100 @ $4.03, 250 @ $3.66, 500 @ $3.39, 1000 @ $3.15, 2500 @ $2.93 | |
| AS22AH | 1 | 75 | 1 | 1 @ $5.23, 10 @ $5.02, 25 @ $4.64, 50 @ $4.54, 100 @ $4.27 | |
| us.rs-online.com | 70364681 | 1 | 1 | 1 @ $6.83, 10 @ $6.60, 25 @ $6.40 | |
| Waldom | N K K SWITCHES AS22AH | 15 | 100 | 1 | 15 @ $4.84, 55 @ $4.65 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
AS22AH,Switch Slide ON None ON DPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Bracket Mount/Through Hole (10 Items)
Brand: NKK Switches
EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active HTS: 8536.50.90.50 Actuator Style: Side Slide Pole Throw Configuration: DPDT Switch Configuration: ON None ON Maximum Current Rating (A): 0.1@28VAC 28VDC Maximum Power Rating (VA): 0.4@28VAC 28VDC Dielectric Strength: 500VAC Minimum Insulation Resistance (MOhm): 500 Maximum Contact Resistance (mOhm): 50 Electrical Life (Cycles): 50000 Mechanical Life (Cycles): 50000 Actuator Color: Gray Actuator Length (mm): 2.5 Number of Rows: 2 Row Spacing (mm): 2.54 Mounting: Bracket Mount/Through Hole Termination Style: PC Pins Number of Terminals: 6 Terminal Length (mm): 3.6 Terminal Pitch (mm): 2.54 Seal Location: Terminals Seal Description: Epoxy Base Material: Brass Body Orientation: Right Angle Minimum Operating Temperature (°C): -30 Maximum Operating Temperature (°C): 85 Size Type: Sub-Miniature Body Length (mm): 9.8 Body Depth (mm): 9.86 Body Height (mm): 10 Product Length (mm): 9.8 Product Depth (mm): 15.2 Product Height (mm): 10
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | AS22AH |
| Part number | AS22AH |
| Items per pack | 10 |
| Label | NKK Switches |
| Manufacturer | NKK Switches |
Analytics
| Case Qty | 10 units |
|---|---|
| Atom Count | 1 |
