NKK Switches . MR-K112

NKK Switches . MR-K112

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute04, BrandNKK Switches
Attribute00+70°C
Attribute01-10°C
Attribute02, moq, multiple, tierMinQty11
Attribute0330000Operations
Attribute050.1 ? 100 mA
Attribute06Panel Mount
Attribute0712 x 25.6mm
Attribute08SP12T
Attribute09IP67
Attribute1012mm
Attribute112 ? 12
Attribute12Zinc Plated Zinc Alloy
Attribute1325.6mm
Attribute14Gold Plated Phosphor Bronze
Attribute15, AttributeKey15Terminal Type
Attribute16, AttributeKey16Mounting Hole Size
AttributeKey00Maximum Operating Temperature
AttributeKey01Minimum Operating Temperature
AttributeKey02Number of Contacts
AttributeKey03Mechanical Life
AttributeKey04Brand
AttributeKey05Contact Current Rating
AttributeKey06Mounting Type
AttributeKey07Dimensions
AttributeKey08Contact Configuration
AttributeKey09IP Rating
AttributeKey10Diameter
AttributeKey11Number of Switch Positions
AttributeKey12Case Material
AttributeKey13Height
AttributeKey14Contact Material
jsonUrlData4289500
MPN, ModelNumber, Model_number, PartNumber, Part_numberMR-K112
qtyInStock3
SKU428-9500
tierMinQty250
tierMinQty3100
tierMinQty4250
tierMinQty5500
tierPrice19.691
tierPrice29.169
tierPrice38.687
tierPrice48.204
tierPrice57.734
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
AsinB09B8VF8X2
ClassificationId5739465011
DisplayNameSelector Switches
Height, Width150 75
Identifier6019238697689
IdentifierTypeEAN
ItemClassificationBASE_PRODUCT

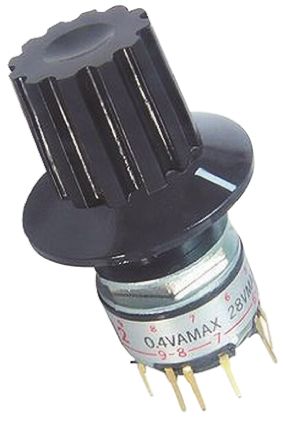

ItemName, Item_nameMR-K112,Switch Rotary SP12T 12 Knob Shaft PC Pins 0.1A 28VAC 28VDC 0.4VA (5 Items)
Item_type_keywordelectronic-component-selector-switches
KeywordMRK112
Linkhttps://m.media-amazon.com/images/I/11fgSlxpPIL._SL75_.jpg https://m.media-amazon.com/images/I/11fgSlxpPIL.jpg
Material#N/A
Number_of_items5
ProductTypeELECTRONIC_SWITCH
Product_descriptionEU RoHS: Compliant with Exemption ECCN (US): EAR99 Part Status: Active HTS: 8536.50.90.20 Actuator Style: Knob Shaft Pole Throw Configuration: SP12T Angle of Throw (°): 30 Number of Positions: 12 Poles per Deck: 1 Number of Decks: 1 Maximum Current Rating (A): 0.1@28VAC 28VDC Maximum Power Rating (VA): 0.4@28VAC 28VDC Dielectric Strength: 500VAC Minimum Insulation Resistance (MOhm): 100 Maximum Contact Resistance (mOhm): 50 Electrical Life (Cycles): 10000 Mechanical Life (Cycles): 30000 Maximum Operating Torque (N.m): 0.02 Actuator Diameter (mm): 2.3 Actuator Length (mm): 10 Contact Style: Non-Shorting Stop Style: Adjustable Mounting: Panel Mount/Through Hole Termination Style: PC Pins Terminal Length (mm): 3.5 Number of Terminals: 12 Base Material: Glass Fiber/Polyamide|Phosphor-Bronze Housing Material: Zinc Alloy Body Orientation: Straight Minimum Operating Temperature (°C): -10 Maximum Operating Temperature (°C): 70 Thread Length (mm): 5.5 Body Length (mm): 12.6 Body Depth (mm): 12.6 Body Height (mm): 10.1 Product Length (mm): 12.6 Product Depth (mm): 12.6 Product Height (mm): 25.6
Product_site_launch_date2021-07-26T19:07:37.903Z
Typeean
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RS Delivers428-95001311 @ $9.69, 50 @ $9.17, 100 @ $8.69, 250 @ $8.20, 500 @ $7.73

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

MR-K112,Switch Rotary SP12T 12 Knob Shaft PC Pins 0.1A 28VAC 28VDC 0.4VA (5 Items)
Brand: NKK Switches
EU RoHS: Compliant with Exemption ECCN (US): EAR99 Part Status: Active HTS: 8536.50.90.20 Actuator Style: Knob Shaft Pole Throw Configuration: SP12T Angle of Throw (°): 30 Number of Positions: 12 Poles per Deck: 1 Number of Decks: 1 Maximum Current Rating (A): 0.1@28VAC 28VDC Maximum Power Rating (VA): 0.4@28VAC 28VDC Dielectric Strength: 500VAC Minimum Insulation Resistance (MOhm): 100 Maximum Contact Resistance (mOhm): 50 Electrical Life (Cycles): 10000 Mechanical Life (Cycles): 30000 Maximum Operating Torque (N.m): 0.02 Actuator Diameter (mm): 2.3 Actuator Length (mm): 10 Contact Style: Non-Shorting Stop Style: Adjustable Mounting: Panel Mount/Through Hole Termination Style: PC Pins Terminal Length (mm): 3.5 Number of Terminals: 12 Base Material: Glass Fiber/Polyamide|Phosphor-Bronze Housing Material: Zinc Alloy Body Orientation: Straight Minimum Operating Temperature (°C): -10 Maximum Operating Temperature (°C): 70 Thread Length (mm): 5.5 Body Length (mm): 12.6 Body Depth (mm): 12.6 Body Height (mm): 10.1 Product Length (mm): 12.6 Product Depth (mm): 12.6 Product Height (mm): 25.6
