MRX108 NKK Switches | Switches | DigiKey
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 9656986 | 1 | 1 | 1 @ $21.69 | |
| iodParts | MRX108 | 1 | 1 | ||
| 354-3926 | 1 | 95 | 1 | 1 @ $7.72 | |
| Allied Electronics | 71934707 | 1 | 1 | ||
| Newark | 31AJ5882 | 1 | 1 | 1 @ $26.68, 5 @ $23.80, 10 @ $22.99, 25 @ $21.72, 50 @ $20.22, 100 @ $17.91, 250 @ $16.06 | |
 Misumi USA | MRX-108 | 1 | -2 | 1 | 1 @ $23.54, 99997 @ $23.54 |
| us.rs-online.com | 71934707 | 1 | 1 | 1 @ $17.81, 10 @ $17.26, 25 @ $16.26 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

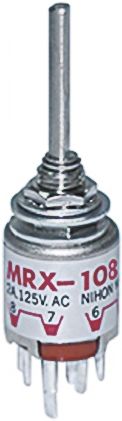

MRX-108,Switch Rotary SP8T 8 Knob Shaft PC Turret 2A 125VAC 30VDC Miniature (2 Items)
Brand: NKK Switches
EU RoHS: Compliant with Exemption ECCN (US): EAR99 Part Status: Active Switch Function: Miniature Actuator Style: Knob Shaft Pole Throw Configuration: SP8T Angle of Throw (°): 45 Number of Positions: 8 Poles per Deck: 1 Number of Decks: 1 Maximum Current Rating (A): 2@125VAC Dielectric Strength: 1000VAC Minimum Insulation Resistance (MOhm): 100 Maximum Contact Resistance (mOhm): 10 Electrical Life (Cycles): 7500 Mechanical Life (Cycles): 15000 Maximum Operating Torque (N.m): 0.15 Size Type: Miniature Actuator Diameter (mm): 3.15 Actuator Length (mm): 20 Contact Style: Non-Shorting Stop Style: Adjustable Mounting: Panel Mount/Through Hole Termination Style: PC Turret Number of Terminals: 9 Base Material: Phenolic Resin|Ag Alloy|Cu Housing Material: Brass Body Orientation: Straight Minimum Operating Temperature (°C): -10 Maximum Operating Temperature (°C): 70 Thread Length (mm): 5.6 Product Length (mm): 14 Product Depth (mm): 14 Product Height (mm): 42.9
Analytics
| Case Qty | 2 units |
|---|
