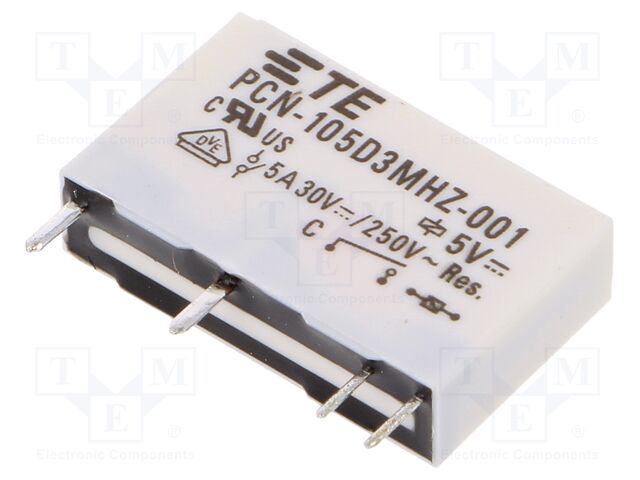

TE Connectivity 1721441-2 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 3A/250VAC; PCB
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| PCN-105D3MHZ.001B | 1 | 33 | 1 | ||
| Hotenda | H4319684 | 1 | 1 | ||
| Newark | 75AC5844 | 1 | 84598 | 1 | 1 @ $5.89, 10 @ $5.62, 25 @ $5.34, 50 @ $4.83, 100 @ $4.36, 500 @ $3.97 |
 Newark | 48W0731 | 1 | 1 | 1 @ $6.16, 10 @ $5.81, 25 @ $5.23, 50 @ $5.00, 100 @ $4.76, 500 @ $4.07 | |
 Zoro | G801017150 | 2 | 2 | 1 @ $8.64 | |
| Waldom | TE CONNECTIVITY AMP BRAND 1721441-2 | 25 | 88255 | 1 | 25 @ $2.59, 150 @ $2.54, 250 @ $2.49, 450 @ $2.45, 1600 @ $2.40, 2500 @ $1.86, 10000 @ $1.56, 25000 @ $1.42 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Power Relay 5VDC 3A SPST-NO(20x5x12.5) mm THT
Brand: TE Connectivity
EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active HTS: 8536.49.00.50 Contact Arrangement: SPST-NO Contact Form: 1 Form A DC Coil Voltage (V): 5 Coil Current (mA): 24.03 Coil Resistance (Ohm): 208 Insulation Resistance (MOhm): 1000 Maximum Contact Resistance (mOhm): 30 Maximum Pick-Up Voltage: 3.5VDC Minimum Dropout Voltage: 0.5VDC Maximum AC Switching Voltage (V): 277 Maximum DC Switching Voltage (V): 125 Maximum Switching Current (A): 3 Maximum Switching Power: 150W|1.25kVA Electrical Life (Operations): 100000 Mechanical Life (Operations): 10000000 LED Indicator: No Push to Test Button: No Coil Suppression Diode: No Relay Construction: Non-Latching Mounting: Through Hole Termination Style: PC Pin Number of Terminals: 4 Minimum Operating Temperature (°C): -40 Maximum Operating Temperature (°C): 85 Package Type: SIP Product Weight (g): 3 Product Length (mm): 20 Product Depth (mm): 5 Product Height (mm): 12.5
