Navpod ag127 pedestal guard

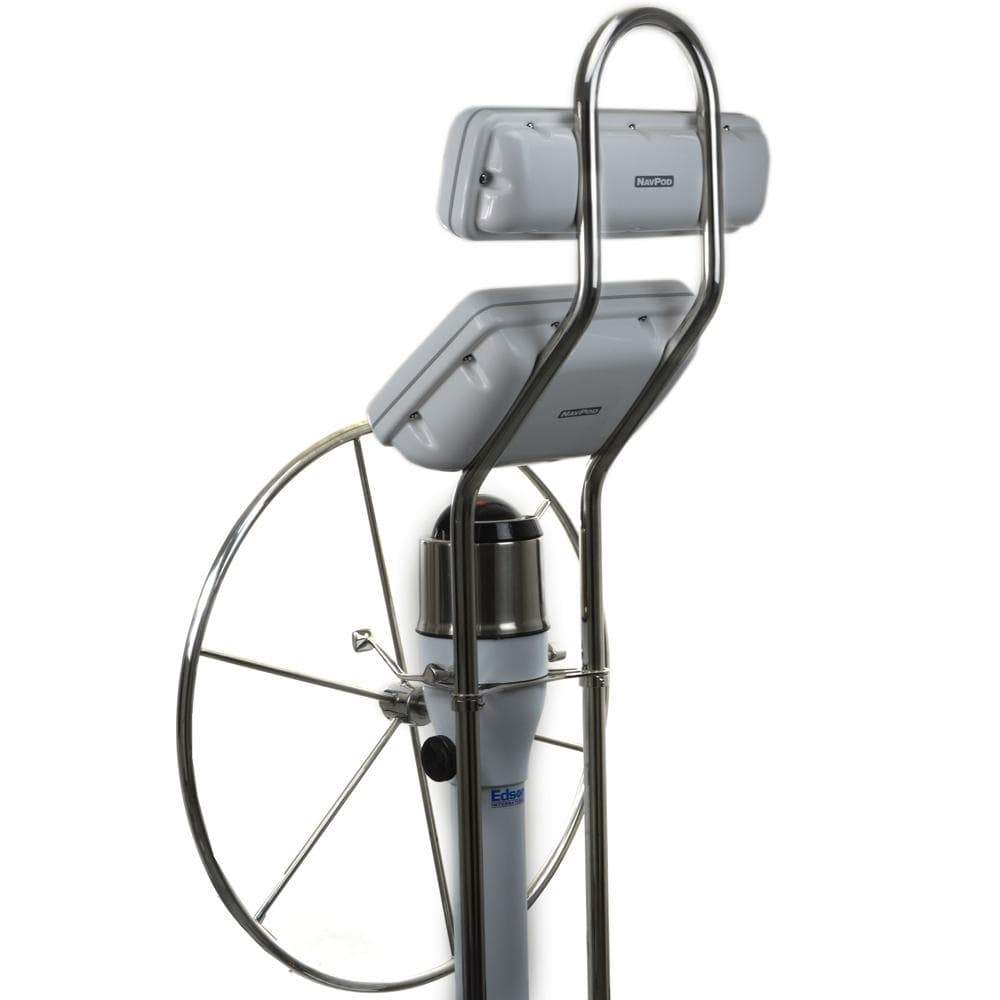

Double Bend AngleGuard - 9.5" wide spacing (center to center) - 1.25" diameter. This Double Bend AngleGuard is used for mounting one InstrumentPod on the upper straight section, and one GP1050, GP1200, GP1800, or GP1900 Series SailPod on the angled section below. The pedestal guard is made from 316 grade stainless steel with 0.065" wall thickness and a mirror polished finish. Keep in mind that upgrading from an existing 1" diameter pedestal guard to this 1.25" diameter AngleGuard may require upgrading the top plate on your steering system. This item includes the stainless steel pedestal guard, stainless steel feet, and mounting hardware (no NavPod housing or electronics are included).

PART #:AG127Description:AngleGuard, 2 Bend, 58"H for one Instrument and/or Radar / Chartplotter NavPod up to 10.5"W x H x D:9.5" x 58" x 1.25"NavPod Protects Your Electronics In Harsh ConditionsAngle Guards 9.5" WideNavPod AngleGuards are designed to upgrade sailboat steering systems to accommodate mounting of electronics onto NavPods.Edson is a popular manufacturer of steering systems who has always used a 9.5" wide pedestal guard. Most of their pedestal guards are 1" in diameter. Lewmar (formally Whitlock) also has manufactured steering systems that use the 9.5" wide format. NavPod supplies the SG10 and AG10 as a easy retrofit onto either of these systems.Because of the clean and secure method of concealing wires and the need to accommodate large connectors and heavy radar cables within the Stainless Steel tubes, NavPod recommends the larger 1.25" diameter AngleGuards. Often the existing Top Plate needs to be bored out or replaced with the TP125 to accommodate the larger diameter. NavPod supplies Polished Stainless Steel feet with all 1.25" AngleGuards.Watertight Silicone SealKeeps rain and salt water spray off electrical connections on the back of electronicsTamperproofSpecial fasteners and wrench are included that provide security and convenience to leave electronics on-boardConcealed WiringNo loose wires are exposed to corrosion and UV damageClean InstallationThe clean look of flush mounting. Mount your display
