NB . SWK8GUU

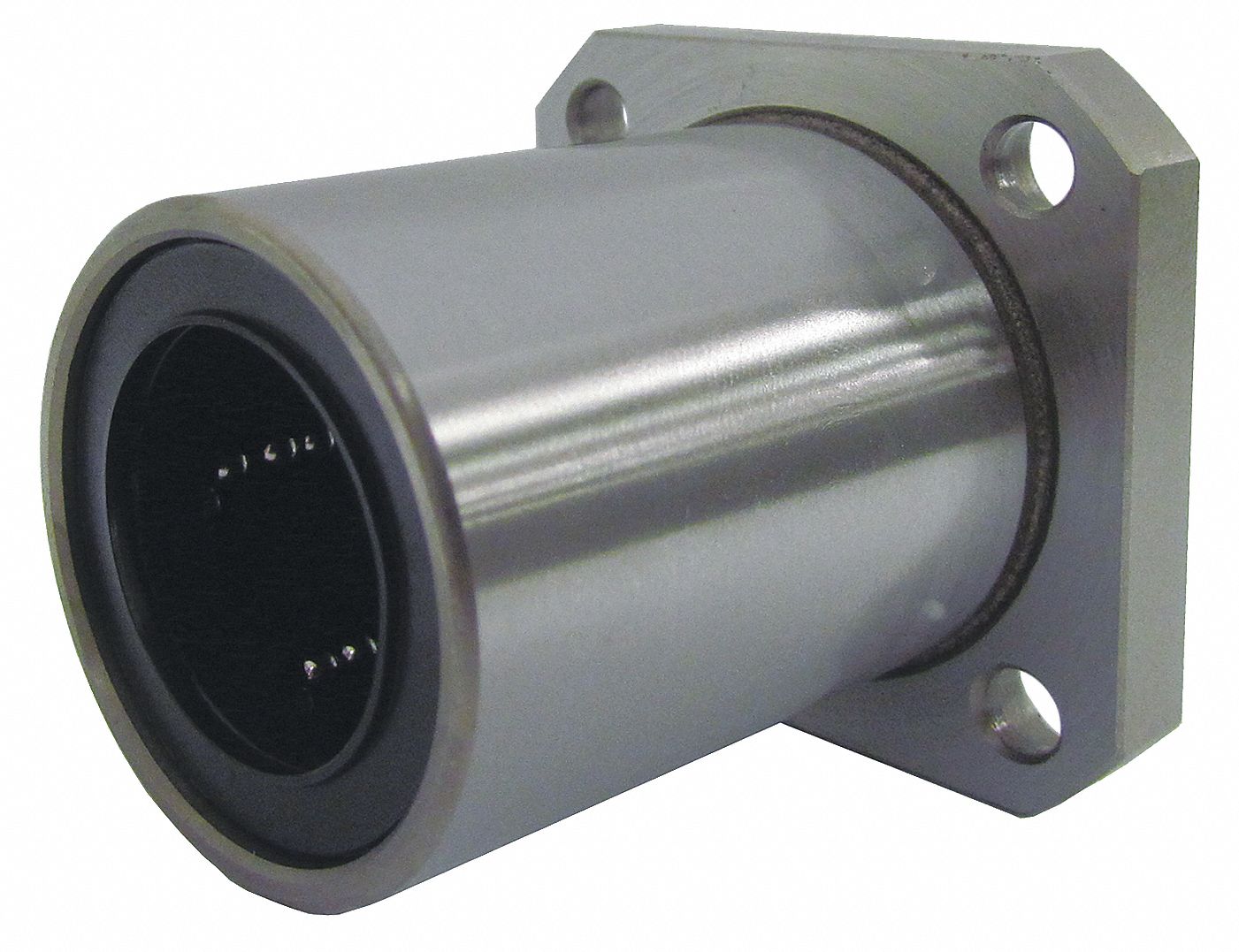

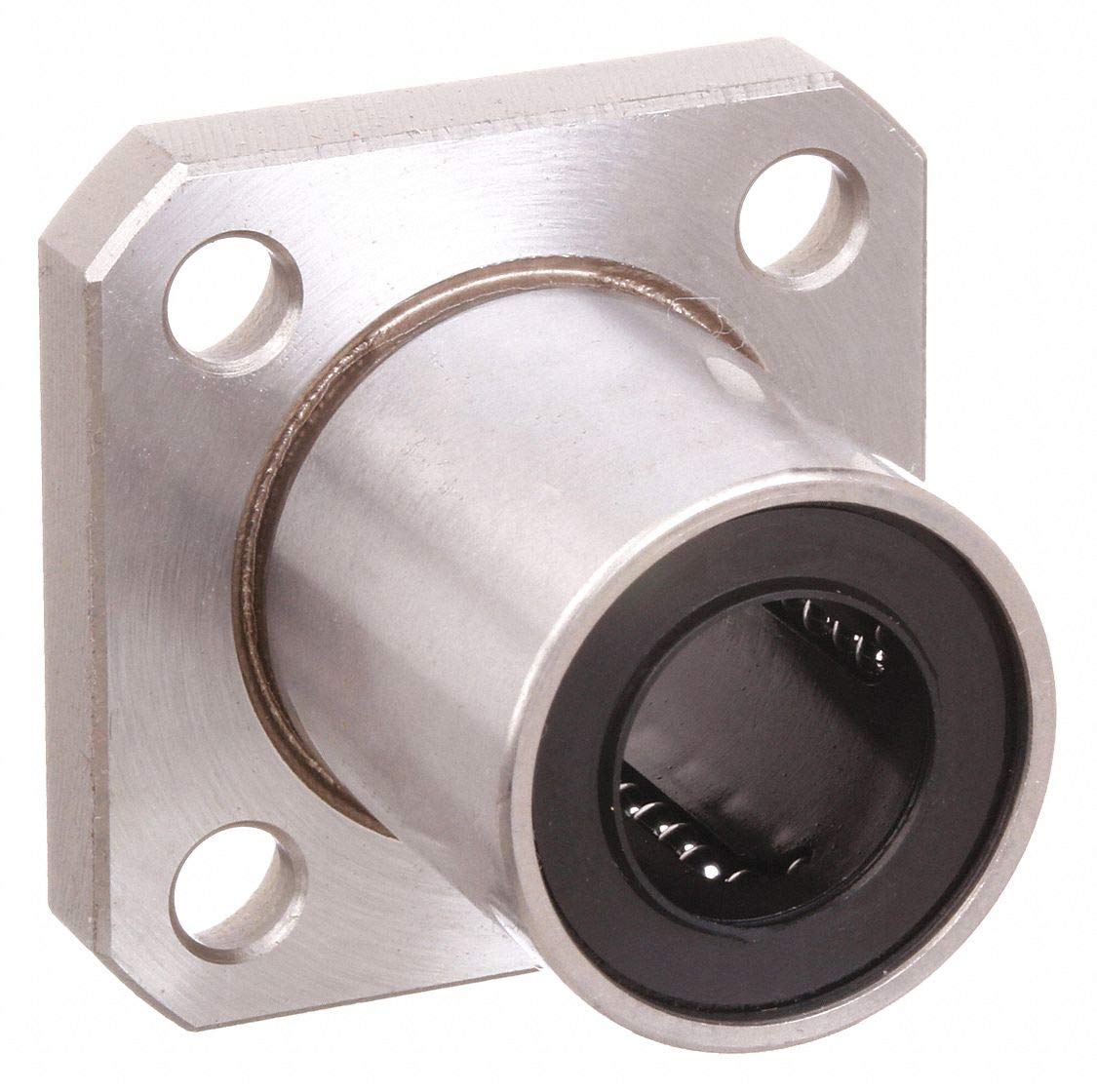

Mounted Linear Ball Bearings NB Steady state speeds to 60 in./sec. Operating temp. range: -4° to 176°F Flanged bearings do not require a housing, which allows them to maintain a low-profile for use in tight spaces. Precision-ground raceway surface and precision ball elements assure low friction and smooth running while maintaining a high load capacity and excellent moment load capacity. This listing is for each. Technical Specification Item Linear Square Flange Mount Bearing Type Closed Bore Dia. (In.) 0.5 in Overall Width (In.) 0.875 in Overall Length (In.) 1.25 in Overall Height (In.) 1.75 in Body Width (In.) 0.875 in Flange Dia. (In.) 0.2500 Flange Thickness (In.) 0.25 in Barrel Dia. (In.) 0.875 in Mounting Hole Center (In.) 1.312 in Dynamic Load Capacity (Lb.) 115 Dynamic Load Capacity (N) 510 Static Load Capacity (Lb.) 176 Static Load Capacity (N) 784 Steady State Speed 5 fps Temp. Range (F) -4 Degrees to 176 Degrees Bearing Type Ball Bushing Seal Rubber Lubrication No Lubrication System Material Carbon Steel/Polymer Cage Color Silver/Black Height 0.875 Mounting Hole (In.) 0.1875 in Shaft Dia. (In.) 0.5 in Width 0.875 For Use With Linear Motion Shafts
