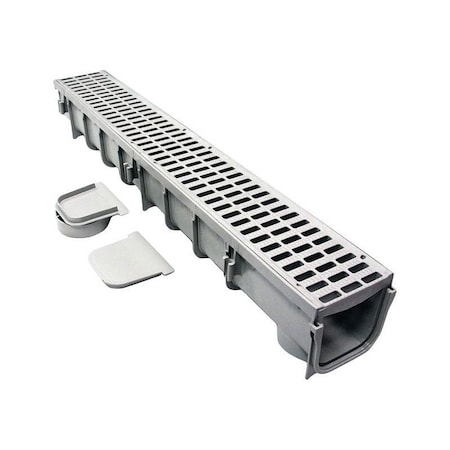

NDS . 864G

Pro-Series, 5" x 1 Meter Light Traffic Channel Grate & Drain Kit, Structural Foam Polyolefin Grate & Deep Profile High Impact PVC Drain With Mechanical Interlocking Joint & UV Inhibitors, Open Surface Area 25.12 SQIN Per Foot, 32.91 GPM Per Foot, Include 1 End Outlet & 1 End Cap.

Pro Series Deep Profile Channel Drain Kit is the most durable, feature-rich and easy to install modular drainage system in its class. channel is made from injection-molded polypropylene with extended side ribs for increased channel strength and UV inhibitors to prevent fading and cracking. Included slotted grates are light-gray HDPE for up to Class B loading and are ADA-compliant. Channels snap end-to-end quickly and easily with robust male-to-female locking clips for long channel runs. Cut guides allow the channel to be shortened by 4-inch increments for smaller interlocking sections. Included end cap and end outlet combined with new integrated second bottom outlet and side-outlet knockouts provide 8 outlet options per channel section for increased design and installation flexibility. The new side outlets now allow 90-degree, tee and cross configurations to be made in the field without specialty accessories. New strengthened #4 rebar clips along the channel sides allow for quicker and easier installation and increased system strength. Popular applications including driveways, courtyards, plazas, pool decks, parking lots, sports facilities and more.
