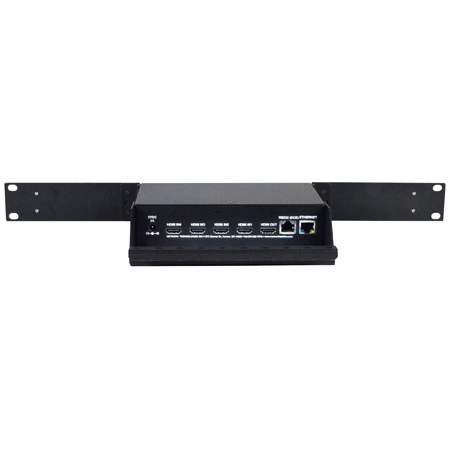

The SPLITMUX HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI/DVI video from two, three, or four different sources on a single monitor. It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display.</p>

The SPLITMUX HDMI Quad Screen Multiviewer allows you to simultaneously display realtime HDMIDVI video from two three or four different sources on a single monitor It is capable of displaying the video sources in quad PiP full or custom mode In custom display mode each of the quadrants can be adjusted to any size and positioned to any location on the display Features. Quad Picture in Picture Full Screen and Custom display modes Custom Display Mode the size position and selection of any or all windows are customizable. 2 and 3source viewing is possible with this method. Maintain input aspect ratio if desiredno stretching necessary. Layer display windows and adjust transparency of each video source display. Independent video in to video out resolution. Inputs 24 30 and 36bit xvYCC sRGB and YCbCr. Outputs 24 and 30bit sRGB. Fourchannel nonmixing or one channel mixing stereo with 16 20 or 24bit uncompressed PCM audio. Bandwidth up to 165 MHz. Inputs 225 Gbps. HDCP compliant. Fluid realtime video performance with 60 frames per second fps in all four quadrants. Zoom pan and crop the image from any source to focus on key areas. Switch audio independently of video from connected HDMI sources eg source 1 and source 2 video are active while only source 3 audio is active. Multiple audio sources can be simultaneously active in any display mode or preset layout. Adjustable audio gain with VU level indicators for each input channel. A customized text label can be added for each video window to provide easy input identification UMD. Any DVI source or display can be connected by using the DVIHDxxMM cable not included. Control the multiviewer through Ethernet RS232 serial port on screen display OSD front panel buttons or IR remote. Cascade multiviewers to display video from any number of video sources on one screen. Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings. Backup and restore multiviewer config
