Network Technologies

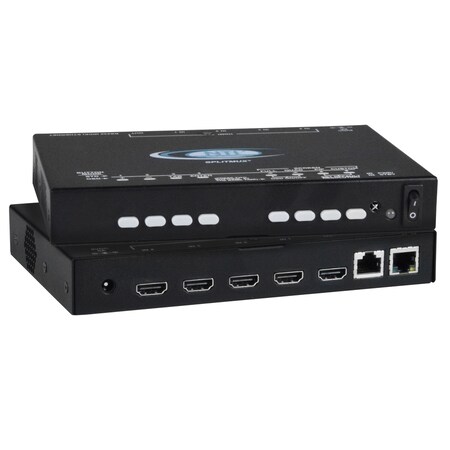

The SPLITMUX HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI video from two, three, or four different sources on a single monitor. It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display. In quad mode, the screen is split into four fields of equal size each displaying the entire contents of four different video sources. 2- and 3-source viewing is possible with this method. Maintain input aspect ratio if desired—no stretching necessary. In full screen mode, one of the four video sources is displayed in full screen size and maximum resolution. In PIP mode, the full screen display of one of the four video sources is accompanied by one, two, or three small images (thumbnails) of the three other video sources on the right hand margin of the screen allowing simultaneous monitoring. Independent video in to video out resolution. Supports HDTV resolutions up to 1080p and computer resolutions to 1920x1200. HDCP compliant. Zoom, pan, and crop the image from any source to focus on key areas. Control the multiviewer through Ethernet, RS232 serial port, on screen display (OSD), front panel buttons, or optional IR remote. Protocols: HTTP, HTTPS, TCP/IP, DHCP, UDP, ARP, IPV4. Designed and manufactured in the USA.
