Newmar 150-a alternator filter

PRODUCT TITLE: Newmar 150-A Alternator Filter BRAND: Newmar WINTRON ELECTRONICS PART #: NEW150A MFGR PART #: 150-A CONDITION: New WEIGHT: 4 UPC: QTY ON HAND: 1 - Stocked SHIPPING INFO: 1 - All 3 freight options - - PRODUCT TYPE: Electrical | Power Filters GOOGLE PRODUCT CATEGORY: Sporting Goods > Water Sports > Boating > Sailing & Yachting FULL DESCRIPTION: Noise Filters The interference or electronic "noise" generated by alternators, ignition systems, motors, etc., can render a vehicle or vessel's radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or "hash" on video displays. These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source. Filtered Frequencies Model 150A: 70 kHz - 100 MHz Models PC-10 and PC-25: Audio - 200 MHz Filter Features: Heavy duty aluminum construction Operate on 6-48 VDC systems Integral mounting flanges for secure installation Brass stud connectors on alternator filters accommodate high current cables and terminals Color coded wire leads on all other models make in-line installation easy Model Rating Installation Location Size Weight H W D 150-A 150 Amp In the alternator output lead 3.25" 5.75" 3.25" 3 lbs. (8.2 14.6 8.2cm 1.4Kg.) PC-10 10 Amp In the + and - power leads close to affected equipment 1.25" 4.25" 3" 1 lb. (3.2 10.8 8.2cm .5Kg.) PC-25 25 Amp Same as PC-10 2" 4.25" 3.25" 2 lbs. (5.1 10.8 8.2cm .9 Kg.) RELATED ITEMS: ANMS PART#: WIN-10030850

The Newmar 150-A 150 Amp Noise Filter can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source. Get rid of popping, static and garbled audio and image with the 150A.

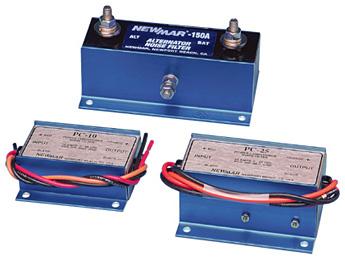

Noise Filters The interference or electronic "noise" generated by alternators, ignition systems, motors, etc., can render a vehicle or vessel's radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or "hash" on video displays. These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source. Filtered Frequencies Model 150A: 70 kHz - 100 MHz Models PC-10 and PC-25: Audio - 200 MHz Filter Features: Heavy duty aluminum construction Operate on 6-48 VDC systems Integral mounting flanges for secure installation Brass stud connectors on alternator filters accommodate high current cables and terminals Color coded wire leads on all other models make in-line installation easy Model Rating Installation Location   Size   Weight H W D 150-A 150 Amp In the alternator output lead 3.25" 5.75" 3.25" 3 lbs. (8.2 14.6 8.2cm 1.4Kg.) PC-10 10 Amp In the + and - power leads close to affected equipment 1.25" 4.25" 3" 1 lb. (3.2 10.8 8.2cm .5Kg.) PC-25  25 Amp Same as PC-10 2" 4.25" 3.25" 2 lbs. (5.1 10.8 8.2cm .9 Kg.)
