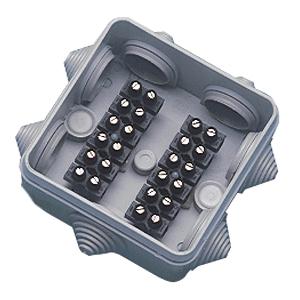

Newmar px-2 junction box waterproof

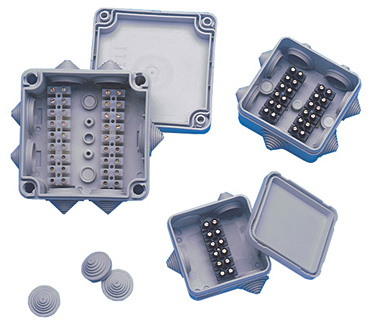

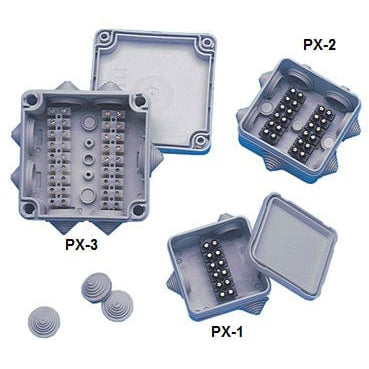

Waterproof Junction Boxes Ideal for making wiring connections above or below decks, even in areas subject to occasional spray Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene Snap-on cover provides watertight seal "Universal" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range Multiple position connector strips with "captive" screw compression wire terminals installed - meets ABYC standards Multiple knockouts provided for conduit access (in addition to cable entries) IEC Waterproof Rating: IP54 - "Water projected in jets against the enclosure from any direction shall have no harmful effects." Specifications Model PX-1 PX-2 PX-3 Number of Connector Strips 1 2 2 Positions per Strip 6 6 9 Max Wire Gauge 16 16 16 Number of Cable Entry Ports 5 7 7 Number of Cable Entries Installed 3 7 7 Spare Cable Entries Provided 2 0 0 Cable Diameter Range (inches) .14-.81 .14-.81 .14-1.0 Cable Diameter Range (mm) 3.5-20.5 3.5-20.5 3.5-25.5 Box Size Inches 2.95 x 2.95 x 1.66 3.35" x 3.35 x 1.66 4.45 x 4.45 x 2.29 Box Size Centimeters 7.5 x 7.5 x 4.2 8.5 x 8.5 x 4.2 11.3 x 11.3 x 5.8
