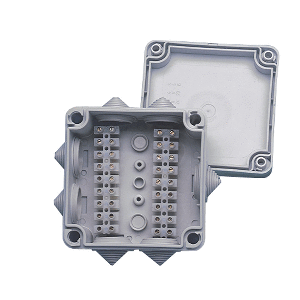

Newmar px-3 junction box waterproof

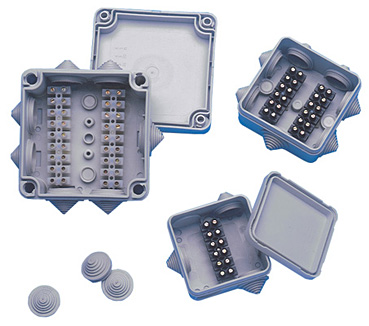

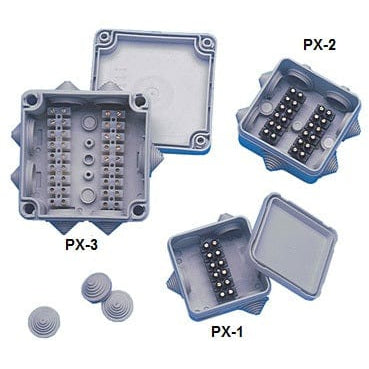

PX Series Waterproof junction box with terminal stripfor electronic connections in areas subjectto spray, washdowns, etc. Rugged, non-corrosive polypropylene housing “Universal” cut-to-fit cable entries, diameter range: .14 -.81 Brass compression screw terminals Wire gauge: 16 AWG Model Terminals PX-1 6 pair PX-2 12 pair PX-3 18 pair BX Series Splash proof junction box with terminal strip Rugged cast aluminum box and cover with enamel finish Multiple rubber grommet cable entries Brass compression screw terminals Model Terminals Wire Gauge BX-1 6 pair 16 AWG BX-2 12 pair 16 AWG BX-3 22 pair 14 AWG EX Series Electrical Enclosures These polycarbonate enclosures provide functional and professional protection for wire connectors, terminal blocks, relays, solenoids, fuses, etc. In addition, instruments, switches and panels can be surface mounted to the cover, as there is ample space for rear projection and wiring. The watertight enclosures have gasketed covers with captured non-corrosive securing screws and an internal base plate with stand-off mounts for securing components inside the enclosure. Model Size L x W x D (inches) Knock-Outs (size cross-reference below) EX-373 7.09 x 3.7 x 3.19 14 ea. PG-16 EX-474 7.09 x 4.33 x 4.37 16 ea. PG-16, 4 ea. PG-21, 2 ea. PG-29 EX-1074 7.09 x 10.0 x 4.37 24 ea. PG-16, 8 ea. PG-21, 4 ea. PG-29 Download Data Sheet (PDF) Terminals:18 pair
