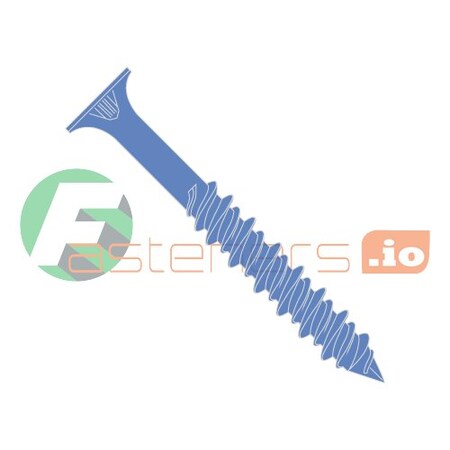

FEATURES CERAMIC COATING EXCEEDS 500/HR. SALT SPRAY RESISTANCE DESIGNED TO WORK WITH ACQ TREATED LUMBER NOTCHED THREADS FOR CUTTING INTO CONCRETE, BRICK AND CEMENT BLOCK DIAMOND POINT DESIGN FOR CUTTING AND CLEARING DEBRIS DURING INSTALLATION SPECIFICATIONS MEETS ASTM A 510 FOR CARBON STEEL MANUFACTURING PRODUCT MEETS ASTM B-117 FOR SALT SPRAY CORROSION TESTING PRE-DRILL HOLE A MINIMUM OF 1/4" DEEPER THAN CONCRETE SCREW TO BE EMBEDDED WITH A CARBIDE MASONRY DRILL BIT. USE A STANDARD SCREW GUN SET AT A MAXIMUM OF 2500 RPM DRIVE SPEED RECOMMENDED. USE A #2 PHILLIPS DRIVE BIT. FASTENER IS PROPERLY INSTALLED WHEN HEAD SITS FLUSH WITH THE WORK SURFACE. DO NOT OVER TORQUE AS IT CAN CAUSE THE HEAD TO SNAP OR STRIPPING OF THE RECESS. INSTALLED FASTENERS MUST BE EMBEDDED INTO CONCRETE, BRICK, CEMENT BLOCK OR MASONRY A MINIMUM OF 1-3/4". An externally threaded, hardened screw with a double lead, consisting of alternating raised and lowered threads with notches cut into the raised threads, and a diamond-shaped, nail-type point. Cuts its own threads and when used in concrete, block or brick. Eliminates the need for an anchor when used in light or medium-duty applications. When used in concrete, it can be removed and re-driven into the same hole. Special carbide bits are recommended for driving concrete screws into masonry. Some applications include anchoring the following to masonry: electrical junction boxes, wooden beams, plywood, exterior insulation, metal flashing, thresholds. The Ruspert finish is a ceramic coating that also allows these fasteners to be used in pressure-treated lumber. ANCHOR SPACING: Concrete screws should be installed a minimum of ten anchor diameters between each other. They have an advantage over most other types of masonry anchors in that they can be installed close to the edge of the material in which they are installed. DEPTH OF HOLE: Hole should be of a depth equal to the requird embediment plus 1/2 inch.
